Visio: Alarm table Overview by using filter View Name

303 views
4
0 Comments

I would like to create a DataMiner visualization (visio) that retrieves data from the Alarm Table and automatically filters the alarms based on the name of the current view.

The visualization should display only the following alarm information:

  • Element Name
  • Parameter Description
  • Current Value
  • Root Time
  • Severity

The filtering should be dynamic, so that when the visualization is used within a specific view, it only shows alarms related to that view.

The goal is to provide a clean and focused alarm overview for operators, showing only the most relevant alarm details associated with the selected view.

Steve Purcell [SLC] [DevOps Advocate] Answered question

2 Answers

1
23.83K 1 Comment

Hi Tim,

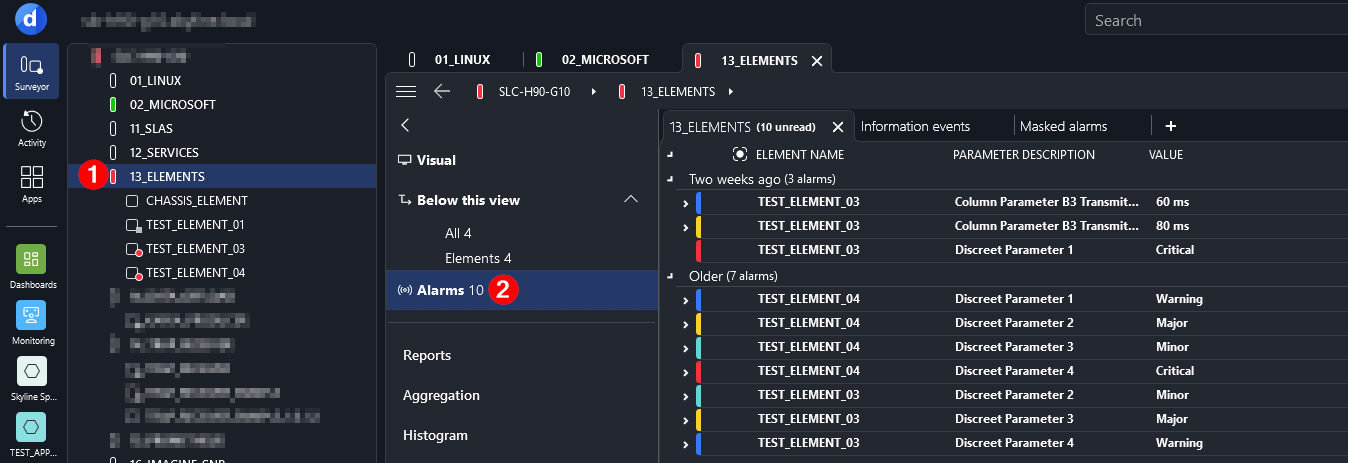

Most probably I am missing something, but when you select a view and then select Alarms, you should be able to see the alarms linked to the view:

Are you looking for a different behavior?

Kind regards,

Tim Eysermans Posted new comment
Tim Eysermans commented

The visual overview I am using is not linked to an element. Instead, it is linked to a custom view that I created based on a node name.

The reason is that I have a protocol with 13 elements, and I need DataMiner to automatically find the correct element based on the name of the view.

For example:

View name: H38DA99HE99
Protocol: Vecima RPM
The visual overview should only display alarms for the element whose RPD Alias (or element name) matches the view name.
0
2.69K 1 Comment

Hi Tim,  I believe the following will work for what you are looking for.

For the Visio associated with the View, create a new page (i.e. [ViewAlerts])

Add a shape for each of the alarm parameters you want displayed (Element name, Description, Value, Severity etc).  For the Shape Data use Alarm with value * and Info  with value [alarm parameter name] (Element Name, Time, Parameter Description, Severity, etc)

Group these shapes together, and add a Shape Data to the group for ChildType with value Alarm

Then add another shape to represent the size you want the alarms displayed in.  Create a new group with this shape and the previously created group.  Add shape data to the group for Children with value Alarm, Element with value 'This View', other shape data can be added for sort, options layout and other abilities but not needed for core functionality.

Apply this Visio to the view and you should now see a list of alarm associated with the view.

Now from your main Visio you can add a shape which links to this view/page (passed as a variable) to display the ViewAlerts page.

Manual references -

Generating shapes that represent alarms | DataMiner Docs

Making a shape display a particular page of the current Visio drawing | DataMiner Docs

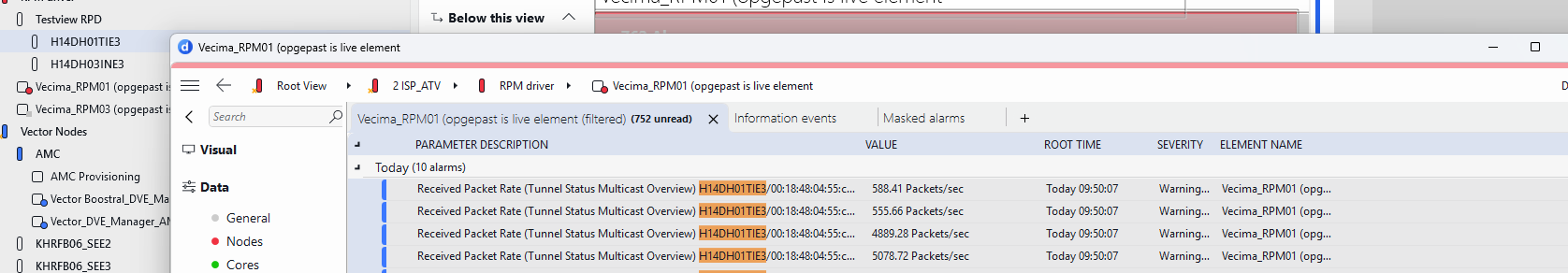

Sample display showing view related alerts with Severity as side led, Element Name, Services, Time and Alarm Description.

Kind Regards,

Steve
