Hello everyone,
We are currently trying to query a “Bridge Technologies VB Series” probe (VB330) located at a different site for our customer, using a proxy, without success (WINHTTP_TIMEOUT).
The proxy is reachable via the URL "proxy.edv.int" on port 8088 (not real values, just to explain here), and HTTP requests are basically successfully answered, for example via Postman or using PowerShell’s Invoke-WebRequest:
The proxy is configured to allow the remote probe’s IP address.
To provide the proxy to DataMiner, it has also been configured for the Windows SYSTEM user:
The settings of the probe element (based on latest connector version 1.4.2.5) are as follows:
As said above, without success(WINHTTP_TIMEOUT). It also doesn’t work with any other combination of strings/Ips/Ports in the edit mask (other issues then).
So our questions are:
• Is this the correct way to configure and use a proxy for the element?
• If not, what would be the correct configuration or solution to enable this http polling via proxy?
• What other issue could potentially be causing this issue?
Streamviewer output comes like this:
Ping on the probe is not answered, but the Web interface is accessible and operable in the element.
DataMiner is version 10.6.0 CU2.
Maybe one more thing to consider:
We are accessing the probe with http authentication, as shown in screenshot below.
Don’t know if the combination of proxy and authentication is maybe part of the problem.
Excerpt of the log output:
2026/06/01 16:59:32.577|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|7992|CProtocol::AddToExecute|DBG|2|Group 250 not added, it is already on the stack.
2026/06/01 16:59:32.577|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|7992|CProtocol::AddToExecute|DBG|2|Group 105 not added, it is already on the stack.
2026/06/01 16:59:32.577|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|7992|CProtocol::AddToExecute|DBG|2|Group 140 not added, it is already on the stack.
2026/06/01 16:59:32.577|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|28424|CParameter::RunQActions|DBG|5|QAction 21000 finished
2026/06/01 16:59:32.690|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|12320|CProtocol::ProcessHttpResult|INF|3|Error : 12002. [ERROR_WINHTTP_TIMEOUT]
2026/06/01 16:59:32.690|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|12320|CProtocol::LogHttpRequest|INF|3|<- 16:59:32 - GET http://1xx.xx.x.x1:80/probe/generaldata
2026/06/01 16:59:34.576|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|28424|CParameter::RunQActions|DBG|5|Find QAction 21000
2026/06/01 16:59:34.576|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|28424|CParameter::RunQActions|DBG|5|Run QAction 21000
2026/06/01 16:59:34.576|SLProtocol - 10808 - BridgeTech VB330 - xxx - Copy|28424|CQAction::Run|INF|2|QAction [21000] triggered by [pid=20985/idx=-1/pk=/user=]
Input: new = <NULL>
Input: old = <NULL>
Input: extra = <NULL>
We are running out of ideas, so any suggestion is very welcome.
Thanks, Regards
Jörg
@Wale
Many thanks for your additional suggestions, I tried both of them.

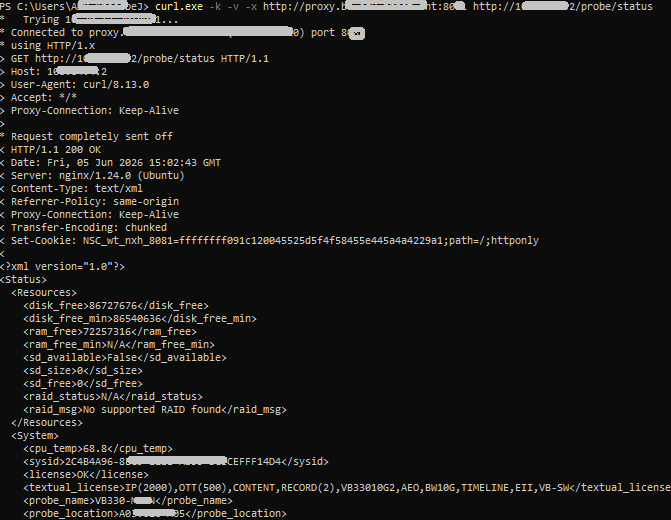

The first one without authentication on /probe/status retrieved response data like this:

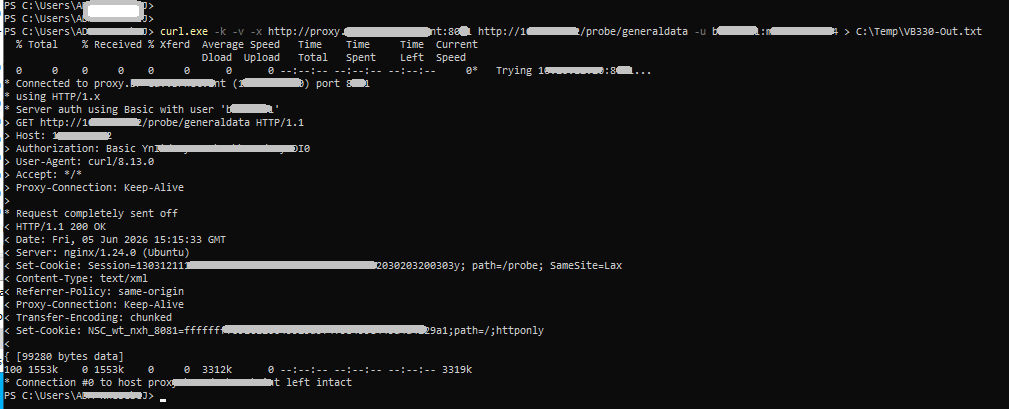

The second one with authentication on probe/generaldata retrieved response data:
(here I redirected the response data into a file with a 3 MB content of probe tables and data)
So, I believe that the proxy works fine, because it provides anything requested from Powershell before and behind http authentication. However, in Cube, I don't see any data, neither on the element's general page nor on the other pages.
Thanks for confirming these checks. I'm now leaning towards network routing. Can you check if traffic is actually being routed to the proxy. If you can setup a Wireshark trace to the proxy server and restart the element to confirm this and to also possibly highlight any other issue.
