Hi Dojo

I would like to visualize a status of a column in a protocol.

<Measurement>
<Type>string</Type>
<Discreets>
<Discreet iconRef="geoWorld">
<Value>WW</Value>
<Display>WW</Display>
</Discreet>
<Discreet iconRef="geoAustria">
<Value>AUT</Value>
<Display>AUT</Display>
</Discreet>
<Discreet iconRef="geoProtected">
<Value>PROTECTED</Value>
<Display>PROTECTED</Display>
</Discreet>
</Discreets>
</Measurement>

This works fine with iconRef defined in the /Protocols/Icons.xml

I would like to use custom icons instead of the predefined DataMiner icons.

I followed Icons | DataMiner Docs to configure DataMiner.

So I added my icons as 16x16 png in C:\Skyline DataMiner\Icon\Refs and created a

C:\Skyline DataMiner\Icons\CustomIcons.xml :

<Icons>
<Icon key="geoAustria" ref="austria.png" theme="light" />
<Icon key="geoProtected" ref="protected.png" theme="light" />
<Icon key="geoWorld" ref="world.png" theme="light" />
</Icons>

Unfortunately I still see just the string in the column instead of the png.

Did I missed something, is there any log that could help to point me to the missing link our my mistake?

Do you have an other idea how to accomplish a user defined image showing the status of a column?

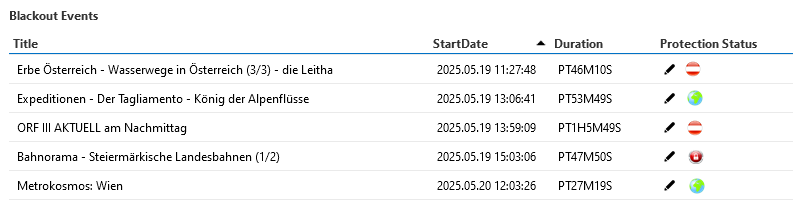

(Yes, I implemented a Dashboard showing that in a correct manner)
