I make a visio with a dropdow, i had use the idx to set a baseline. But I want to show a nameo f a place instead of the id.

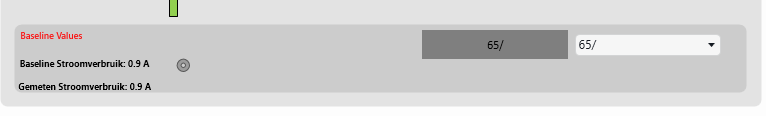

Here you see 65/ or 1/ or 2/ but i want for example: 65/ = Geel, 1/ = Kasterlee, 2/ = Hasselt,... So I want see only Geel, Kasterlee en Hasselt in the dropdown. And he must set "setvar id" when I selected for example Geel. He must set 65/.
Hi,
You can achieve this by configuring the dropdown to use a different column for the displayed name and the stored value.
If the IDs and location names are available in the same element table, configure the dropdown shape with these shape data fields:
SetVar: id:[Param:DMAID/ElementID,TABLE_PID]
SetVarOptions: Control=ComboBox|DisplayColumn=NAME_COLUMN_PID|SetColumn=ID_COLUMN_PID
More info regarding the combobox can be found here.
