PTP IN CISCO NEXUS VERSION 9.3(3)

43 viewsCisco CISCO Nexus NXAPI PTP
2
0 Comments

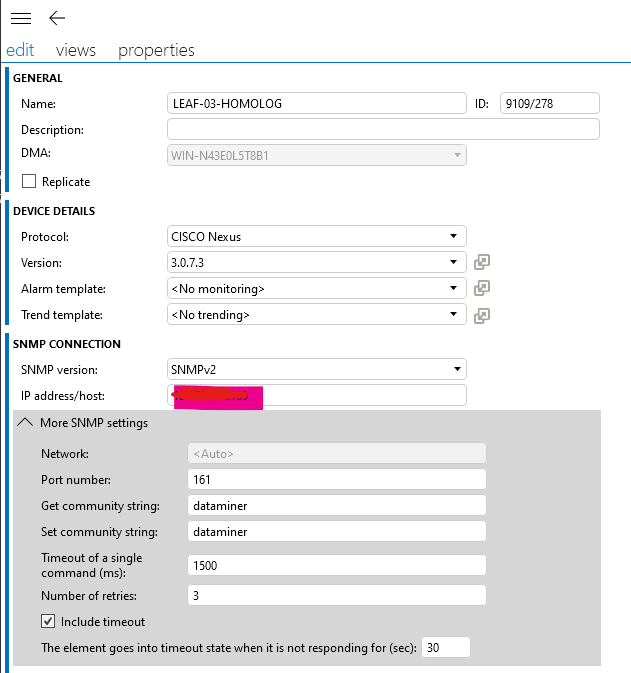

Hi everyone, I need to monitor the PTP of the Cisco Nexus 9k SW but I'm having trouble. Protocol version 1.0.3.4 works without problems but doesn't have the PTP part. I'm trying the latest protocol version (version 3.0.7.3) and I can't get it.

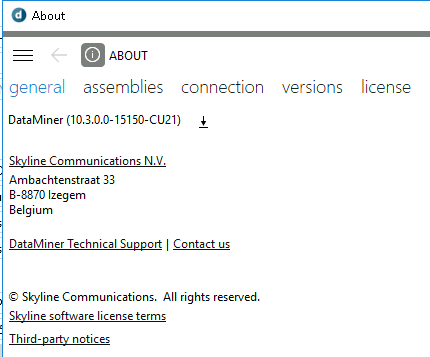

DMA version:

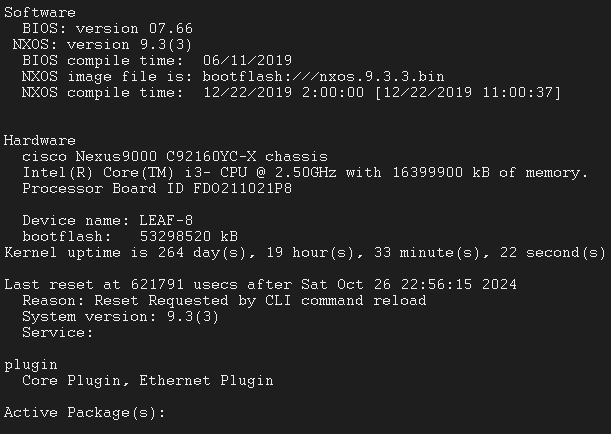

SW Nexus version

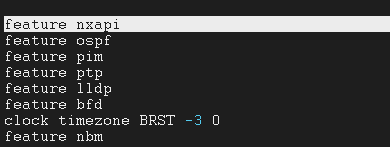

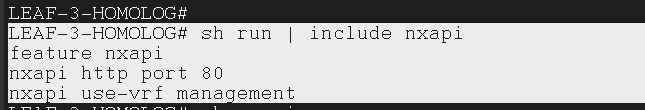

Feature nxapi enable

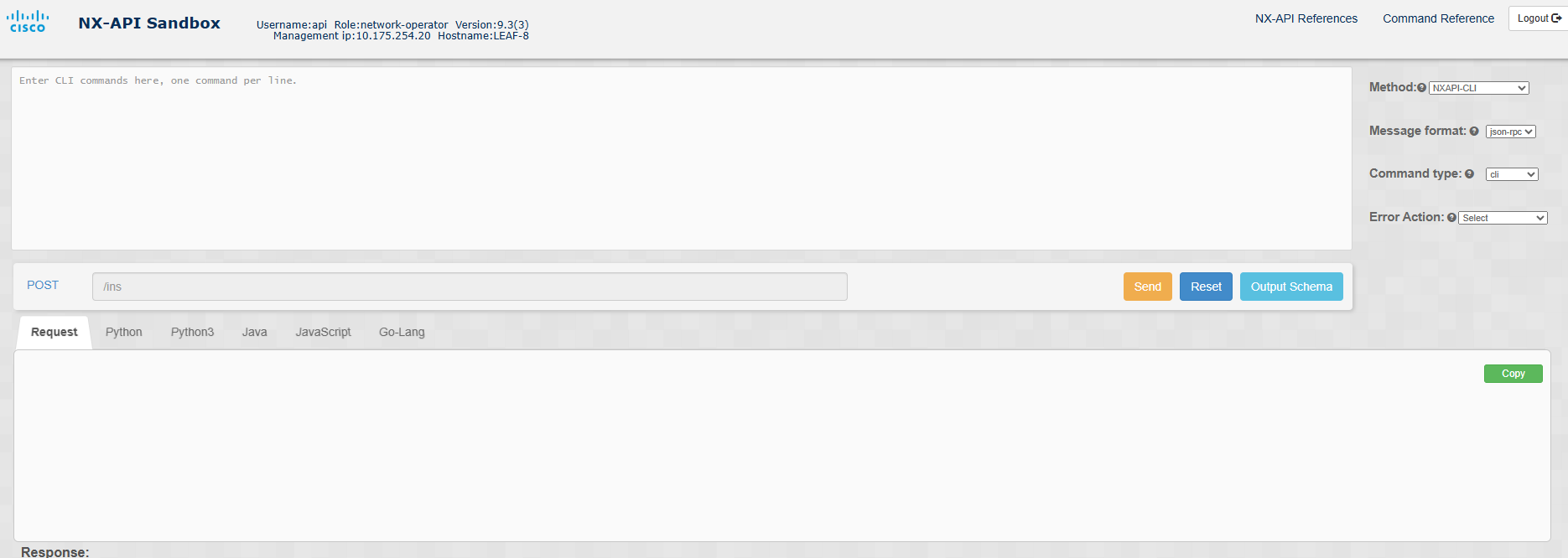

sandbox using login

The dataminer is on the same VLAN as the Cisco Nexus.

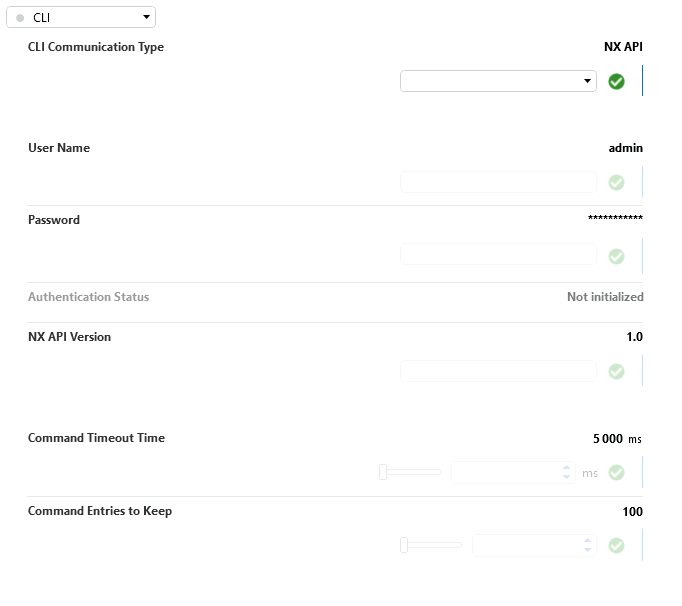

I can log in to this user via SSH and NX API.

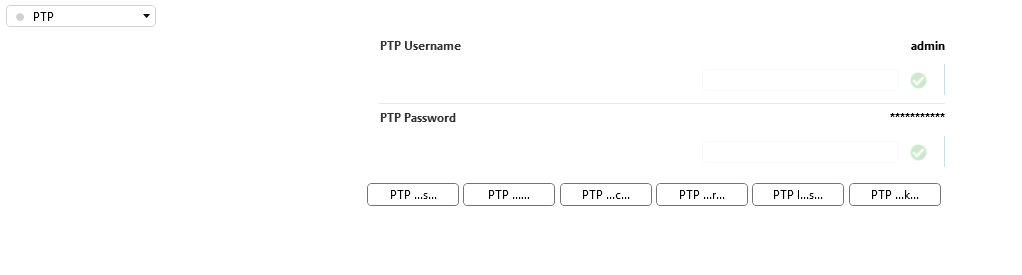

I understand that I need to log in (I'm not sure if it's SSH or NX API) to get the PTP. Is that correct?

If so, how do I log in?

Hideyuki Imaida [DevOps Advocate] Answered question 21 hours ago

1 Answer

2
472 0 Comments

Hi Kaoi,

In may case, I added following config for NXAPI.

feature nxapi

nxapi http port 80

nxapi use-vrf default

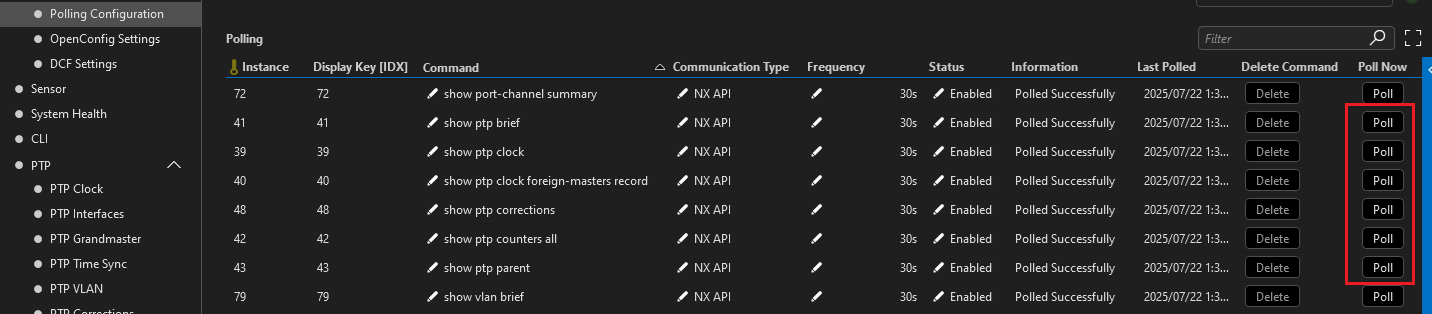

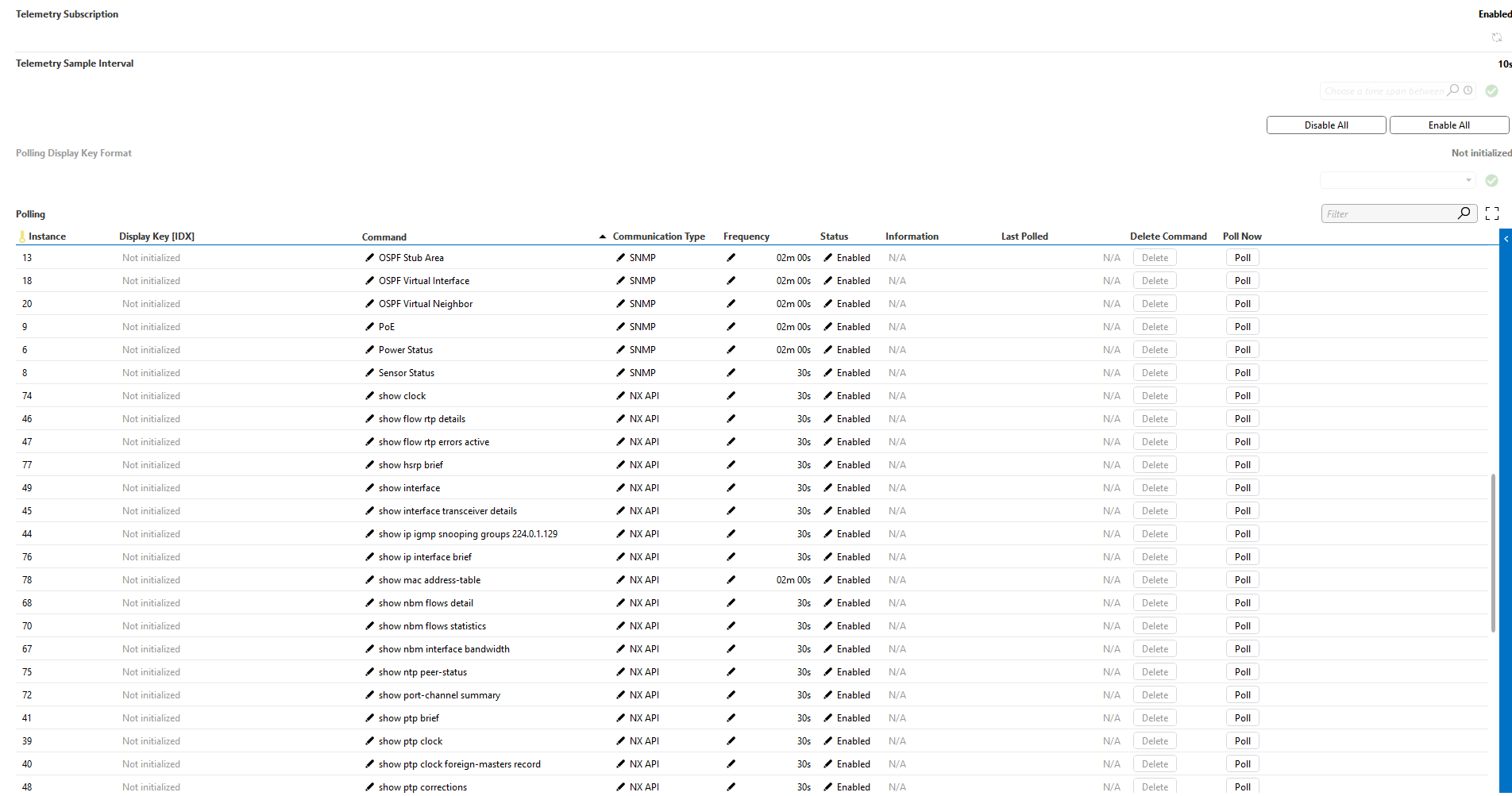

And also, have you tried manual polling by clicking button on Polling table in Polling Configuration page?
