Hi,

I'm currently populating a table from a JSON source, and while most of the columns are populated correctly, the LogicalName column is not being filled in the DataMiner table.

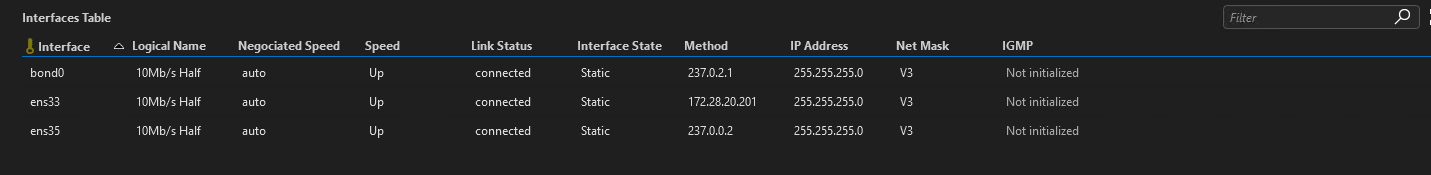

I have reviewed both the QAction code and the protocol XML. The JSON contains valid values for Configuration.LogicalName, and they are successfully extracted and logged in the QAction (confirmed via DebugInfologs). However, the values are not displayed in the table.

XML

<Paramid="2000">

<Name>NetworkTable2</Name>

<Description>Interfaces Table</Description>

<Type>array</Type>

<ArrayOptionsindex="0">

<ColumnOptionidx="0"pid="2001"type="retrieved"options=""/>

<ColumnOptionidx="1"pid="2002"type="retrieved"options="" />

<ColumnOptionidx="2"pid="2003"type="retrieved"options="" />

<ColumnOptionidx="3"pid="2004"type="retrieved"options="" />

<ColumnOptionidx="4"pid="2005"type="retrieved"options="" />

<ColumnOptionidx="5"pid="2006"type="retrieved"options="" />

<ColumnOptionidx="6"pid="2007"type="retrieved"options="" />

<ColumnOptionidx="7"pid="2008"type="retrieved"options="" />

<ColumnOptionidx="8"pid="2009"type="retrieved"options="" />

<ColumnOptionidx="9"pid="2010"type="retrieved"options=""/>

</ArrayOptions>

<Subtext>tableInformation</Subtext>

</Information>

<Page>Networking</Page>

</Position>

</Positions>

</Display>

<Typeoptions="tab=columns:2001|0-2002|1-2003|2-2004|3-2005|4-2006|5-2007|6-2008|7-2009|8-2010|9,width:100-100-121-100-100-101-100-100-100-100,sort:STRING-STRING-STRING-STRING-STRING-STRING-STRING-STRING-STRING-STRING,lines:25,filter:true">table</Type>

</Measurement>

</Param>

<Paramid="2001"trending="false">

<Name>NetworkTable2InterfaceName</Name>

<Description>Interface</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2002"trending="false">

<Name>NetworkTable2LogicalName</Name>

<Description>Logical Name</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

<Alarm>

<Monitored>false</Monitored>

</Alarm>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2003"trending="false">

<Name>NetworkTable2NegociatedSpeed</Name>

<Description>Negociated Speed</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

<Alarm>

<Monitored>false</Monitored>

</Alarm>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2004"trending="false">

<Name>NetworkTable2Speed</Name>

<Description>Speed</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2005"trending="false">

<Name>NetworkTable2LinkStatus</Name>

<Description>Link Status</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2006"trending="false">

<Name>NetworkTable2InterfaceState</Name>

<Description>Interface State</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2007"trending="false">

<Name>NetworkTable2Method</Name>

<Description>Method</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2008"trending="false">

<Name>NetworkTable2IPAddress</Name>

<Description>IP Address</Description>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2009"trending="false">

<Name>NetworkTable2Mask</Name>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

<Paramid="2010"trending="false">

<Name>NetworkTable2IGMP</Name>

<Subtext>This is the key used internally by DataMiner to identify the table entries.</Subtext>

</Information>

<RawType>other</RawType>

<Type>string</Type>

<LengthType>next param</LengthType>

</Interprete>

</Display>

<Type>string</Type>

</Measurement>

</Param>

QAction:

using System;

using System.Collections.Generic;

using Newtonsoft.Json;

using Skyline.DataMiner.Scripting;

public class InterfaceJsonModel

{

public Status Status { get; set; }

public Configuration Configuration { get; set; }

}

public class Status

{

publicstring Name { get; set; }

publicstring LinkState { get; set; }

publicstring LinkSpeed { get; set; }

publicstring[] SupportedLinkSpeedModes { get; set; }

public IPv4Status IPv4 { get; set; }

}

public class Configuration

{

publicstring State { get; set; }

publicstring LogicalName { get; set; }

publicstring LinkSpeed { get; set; }

public IPv4Config IPv4 { get; set; }

}

public class IPv4Status

{

publicstring IPAddress { get; set; }

publicstring Netmask { get; set; }

publicstring IGMP { get; set; }

}

public class IPv4Config

{

publicstring Method { get; set; }

publicstring IPAddress { get; set; }

publicstring Netmask { get; set; }

}

public static class QAction

{

publicstaticvoid Run(SLProtocol protocol)

{

protocol.Log("QA17:start table NetworkTable2 (2000)", LogType.Information);

try

{

string json = protocol.GetParameter(Parameter.net1tresponse_37) asstring;

if (string.IsNullOrWhiteSpace(json))

{

protocol.Log("QA17: ERROR - JSON null", LogType.Error);

return;

}

else

{

protocol.Log("QA17: JSON load from param 37", LogType.DebugInfo);

}

List<InterfaceJsonModel> interfaces = JsonConvert.DeserializeObject<List<InterfaceJsonModel>>(json);

if (interfaces == null)

{

return;

}

elseif (interfaces.Count == 0)

{

return;

}

var clearResult = protocol.ClearAllKeys(2000);

// Columnas

var keys = new List<object>();

var logicalNames = new List<object>();

var linkSpeeds = new List<object>();

var supportedSpeeds = new List<object>();

var configStates = new List<object>();

var linkStates = new List<object>();

var methods = new List<object>();

var ipAddresses = new List<object>();

var netmasks = new List<object>();

var igmps = new List<object>();

foreach (var iface in interfaces)

{

string name = iface.Status?.Name;

if (string.IsNullOrWhiteSpace(name))

{

continue;

}

string logicalname = iface.Configuration?.LogicalName;

if (logicalname == null)

{

logicalname = string.Empty;

}

else

{

}

string linkSpeed = iface.Status?.LinkSpeed ?? string.Empty;

string supported = iface.Status?.SupportedLinkSpeedModes != null

? string.Join(", ", iface.Status.SupportedLinkSpeedModes)

: string.Empty;

string configState = iface.Configuration?.State ?? string.Empty;

string linkState = iface.Status?.LinkState ?? string.Empty;

string method = iface.Configuration?.IPv4?.Method ?? string.Empty;

string ip = iface.Configuration?.IPv4?.IPAddress ?? string.Empty;

string mask = iface.Configuration?.IPv4?.Netmask ?? string.Empty;

string igmp = iface.Status?.IPv4?.IGMP ?? string.Empty;

protocol.Log($"QA17: [{name}] Logical={logicalname}, Speed={linkSpeed}, Supported={supported}, State={configState},State={method}, Link={linkState},State={mask}, IP={ip}, IGMP={igmp}", LogType.DebugInfo);

keys.Add(name);

logicalNames.Add(logicalname);

linkSpeeds.Add(linkSpeed);

supportedSpeeds.Add(supported);

configStates.Add(configState);

linkStates.Add(linkState);

methods.Add(method);

ipAddresses.Add(ip);

netmasks.Add(mask);

igmps.Add(igmp);

}

object[] columnInfo = newobject[]

{

Parameter.Networktable2.tablePid, // Table ID

Parameter.Networktable2.Pid.networktable2interfacename, // Status.Name (key)

Parameter.Networktable2.Pid.networktable2logicalname, // Configuration.LogicalName

Parameter.Networktable2.Pid.networktable2negociatedspeed, // Status.LinkSpeed

Parameter.Networktable2.Pid.networktable2speed, // Status.SupportedLinkSpeedModes

Parameter.Networktable2.Pid.networktable2linkstatus, // Configuration.State

Parameter.Networktable2.Pid.networktable2interfacestate, // Status.LinkState

Parameter.Networktable2.Pid.networktable2method, // Configuration.IPv4.Method

Parameter.Networktable2.Pid.networktable2ipaddress, // Configuration.IPv4.IPAddress

Parameter.Networktable2.Pid.networktable2mask, // Configuration.IPv4.Netmask

Parameter.Networktable2.Pid.networktable2igmp, // Status.IPv4.IGMP

};

object[] columnValues = newobject[]

{

keys.ToArray(),

logicalNames.ToArray(),

linkSpeeds.ToArray(),

supportedSpeeds.ToArray(),

configStates.ToArray(),

linkStates.ToArray(),

methods.ToArray(),

ipAddresses.ToArray(),

netmasks.ToArray(),

igmps.ToArray(),

};

protocol.NotifyProtocol(220, columnInfo, columnValues);

}

catch (Exception ex)

{

protocol.Log("QA17: EXCEPCIÓN: " + ex.Message, LogType.Error);

}

LOG:
2025/06/25 19:49:28.176|SLManagedScripting.exe|ManagedInterop|DBG|-1|15|QA17: [ens33] Logical=ens33, Speed=10Mb/s Half, Supported=auto, State=Up,State=Static, Link=connected,State=255.255.255.0, IP=172.28.20.201, IGMP=V3

Thanks

Jose Araujo [DevOps Advocate] Selected answer as best 4 days ago

1 Answer

score 1 · Answer 1 · 2025-06-27T04:39:22+00:00

Hi Jose,

In your object[] columnInfo, can you remove the following entry?: Parameter.Networktable2.Pid.networktable2interfacename, // Status.Name (key)

For the Notify NT_FILL_ARRAY_WITH_COLUMN, for the columnInfo object, the ID for the keys is not passed along (see also the example in the docs for NT_FILL_ARRAY_WITH_COLUMN).
