How to find out what element is the Parent DVE?

Solved350 viewsDynamic virtuals elements
4
0 Comments

Hi Dojo,

I have a view with many child DVEs. However, I'm not sure which one is the parent DVE. Is there a way to easily find this information through Cube?

Thanks!

Caio Moreti Koga [SLC] [DevOps Advocate] Selected answer as best

3 Answers

3
3.20K 2 Comments

Hi Caio,

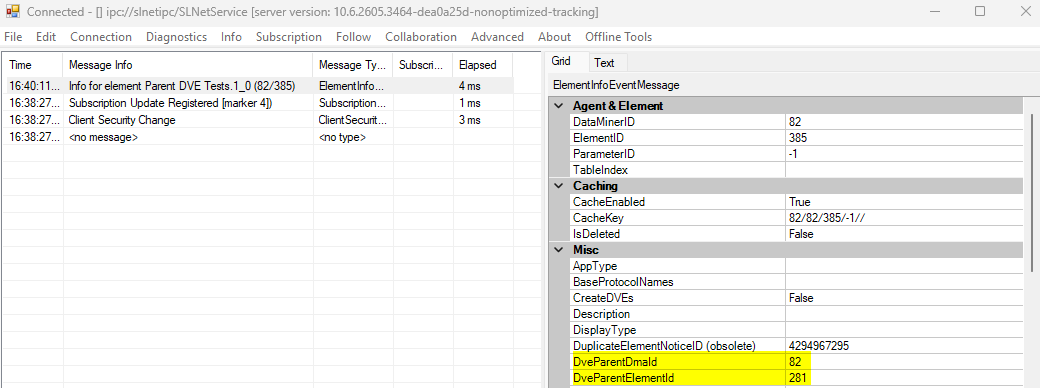

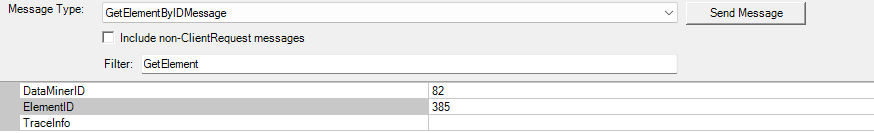

You can send the GetElementByID message via the Client Test Tool. The input IDs should be taken from the DVE element. Example:

Kind regards,

Pieter Van Compernolle [SLC] [DevOps Enabler] Posted new comment
Caio Moreti Koga [SLC] [DevOps Advocate] commented

Hi Catarina, thank you for your reply. This is definitely useful! But in cases where I don't have access to Client Test tool, is there an easy way to find this info only using Cube?
Pieter Van Compernolle [SLC] [DevOps Enabler] commented

you can do the same in an automation script:

IConnection conn = engine.GetUserConnection();

int dataminerID = 1; // change to your dve dma id
int elementID = 123; // change to your dve element id
DMSMessage[] resp = conn.HandleMessage(new GetLiteElementInfo() { DataMinerID = dataminerID, ElementID = elementID });
if (resp.Length == 1 && resp[0] is LiteElementInfoEvent element)
{
// now retrieve the main element via element.DveParentDmaId/element.DveParentElementId
resp = conn.HandleMessage(new GetLiteElementInfo() { DataMinerID = element.DveParentDmaId, ElementID = element.DveParentElementId });
if (resp.Length == 1 && resp[0] is LiteElementInfoEvent mainelement)
{
engine.GenerateInformation("Main element is: " + mainelement.Name);
}
}
You are viewing 1 out of 3 answers, click here to view all answers.
