UCG Thomas Phantom

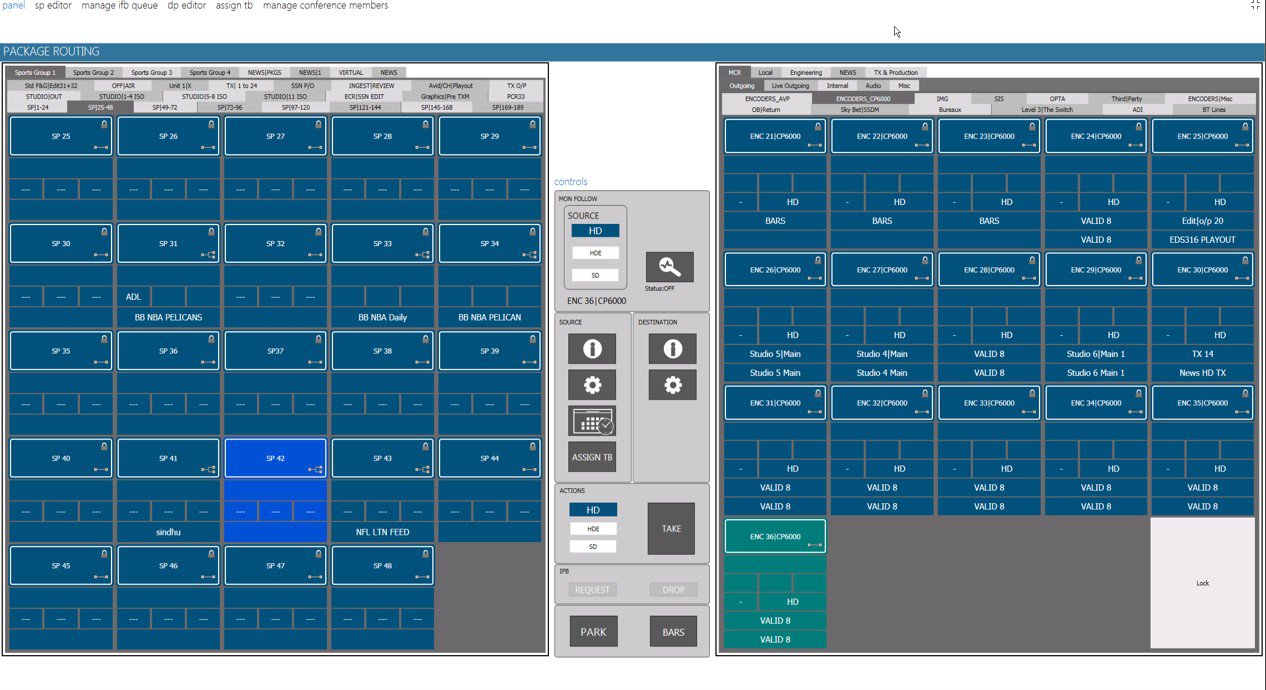

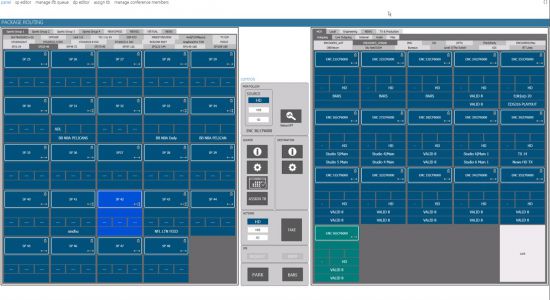

Software panel for router control using the Router Control Module. The Router control is enhanced with extra controls for software locking and undo to undo last set. The interface style is customizable.

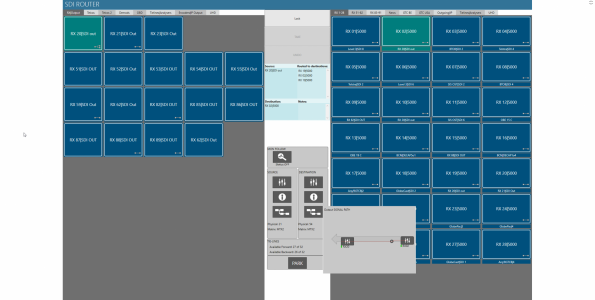

The router control has the ability to show the route by selecting an input or output and selecting to show the signal path. By using DCF (DataMiner Connectivity Framework) a representation is generated of the devices connected to the in- or output.

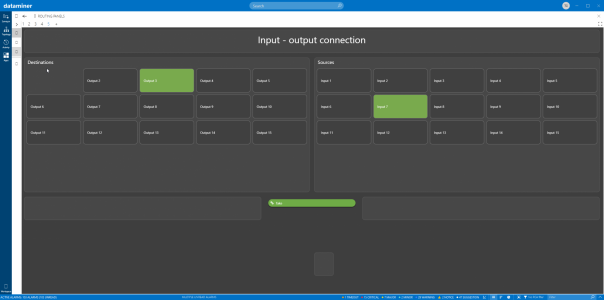

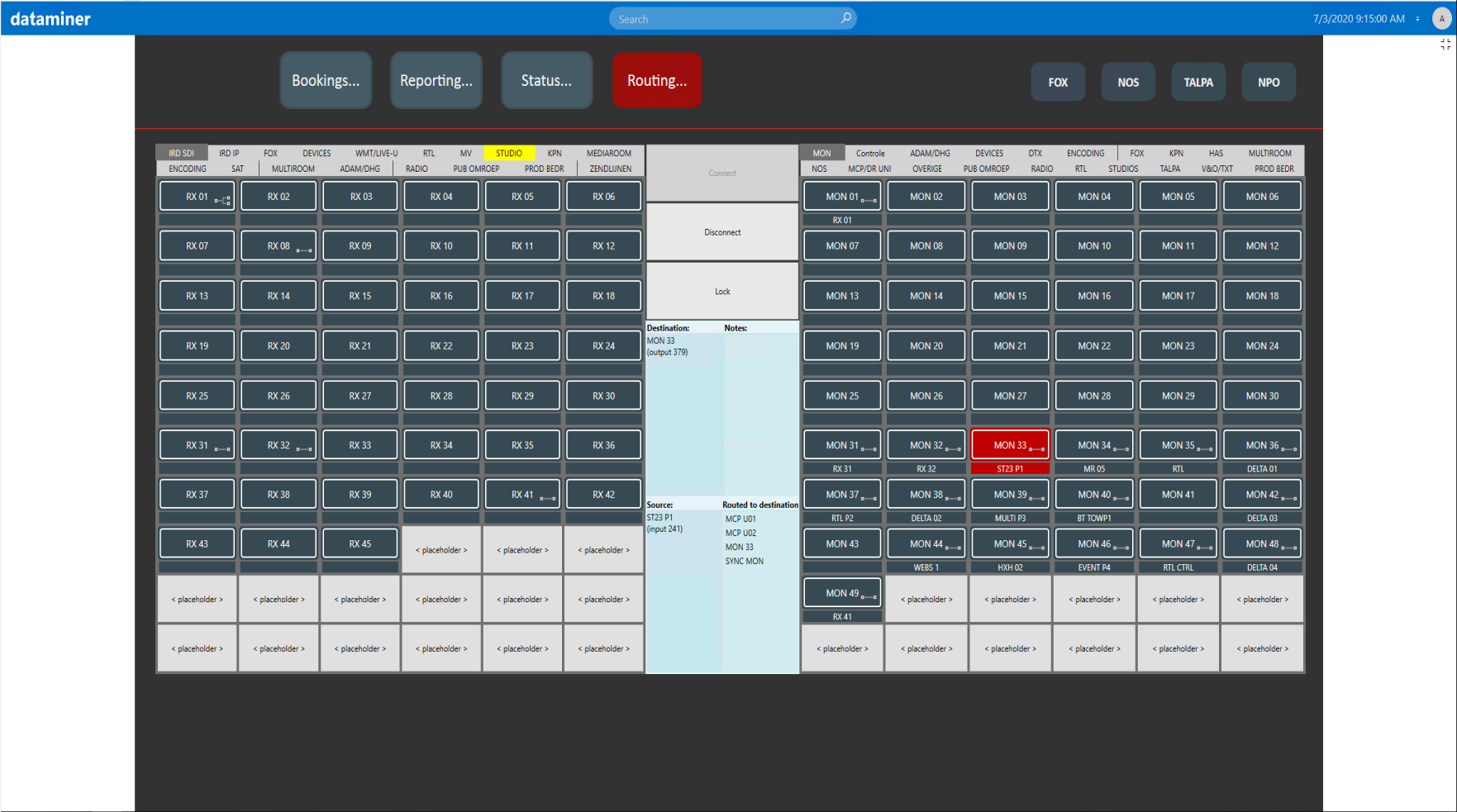

customizable software router panel.

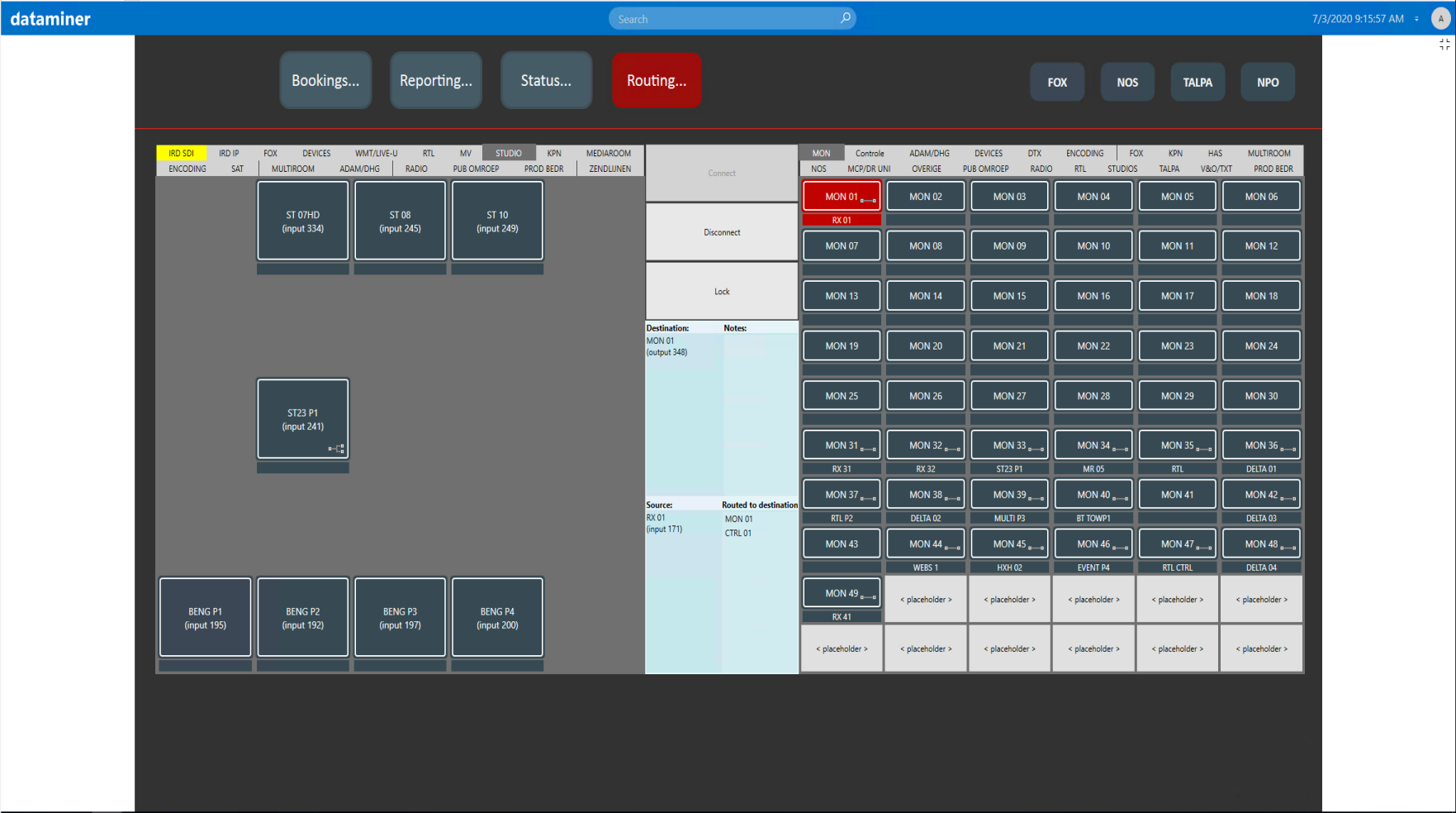

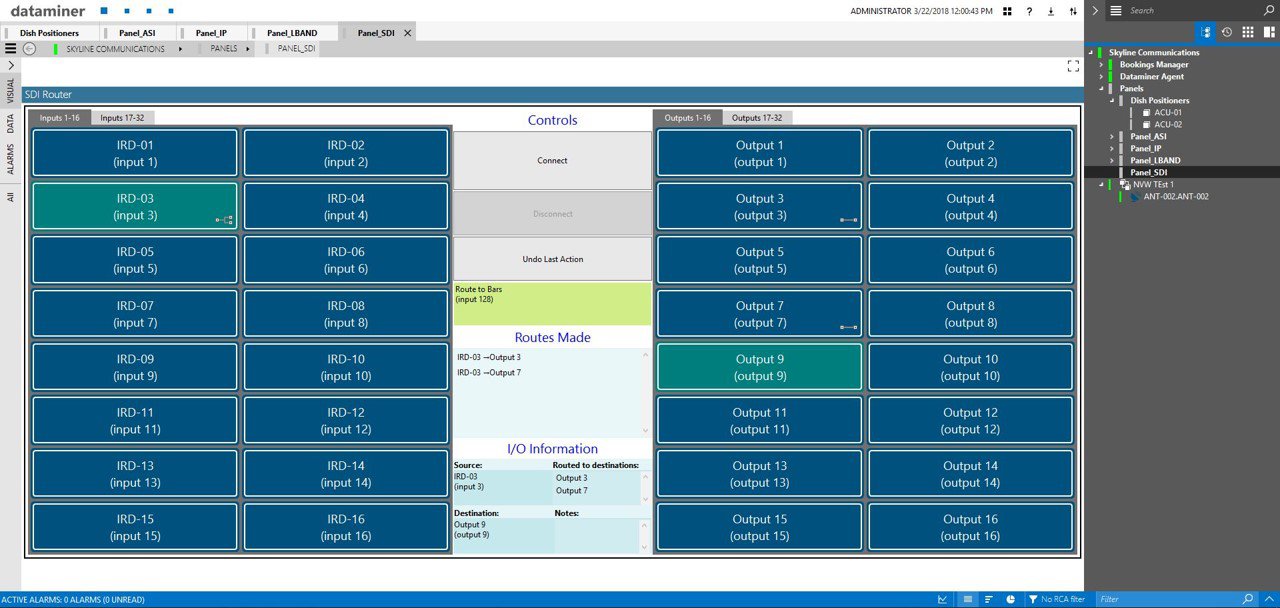

customizable software router panel.

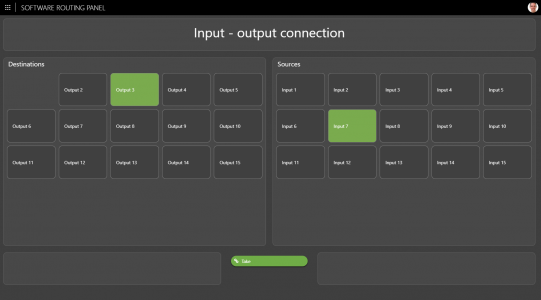

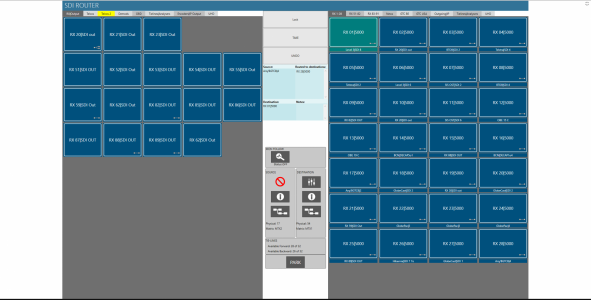

customizable HTML5 software router panel.

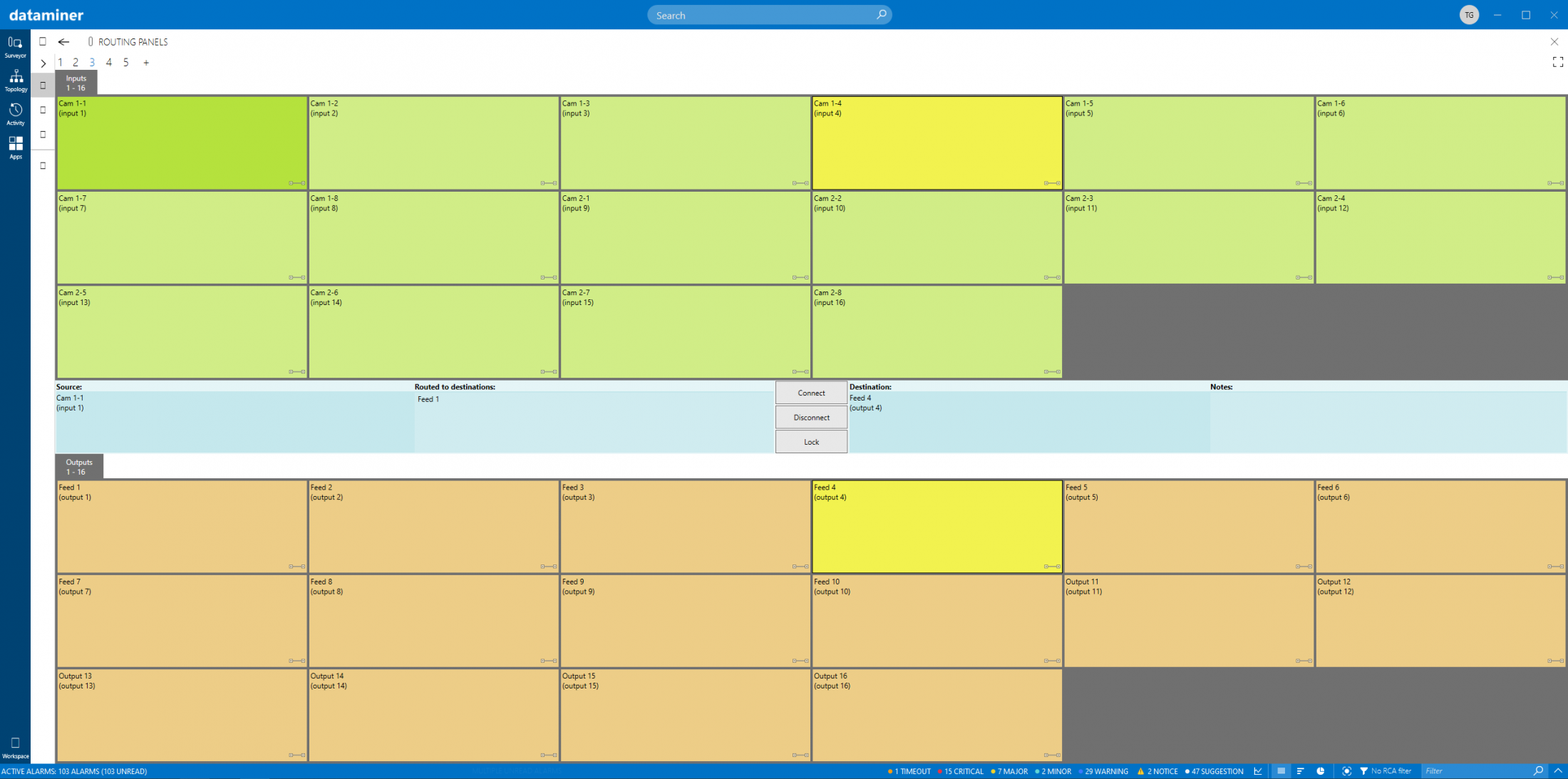

customizable HTML5 software router panel.

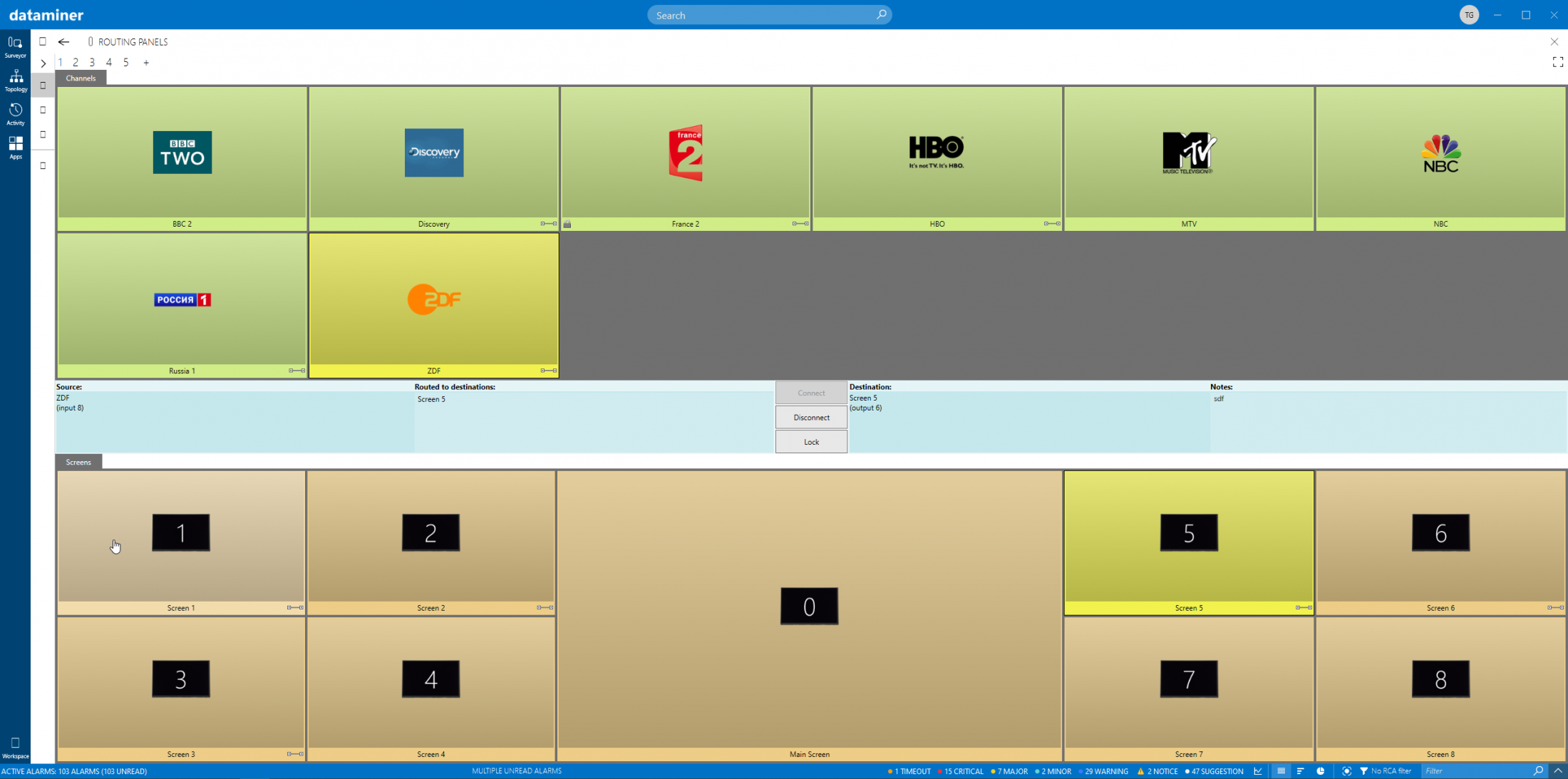

customizable software router panel. pick a logo for all your sources and destinations.

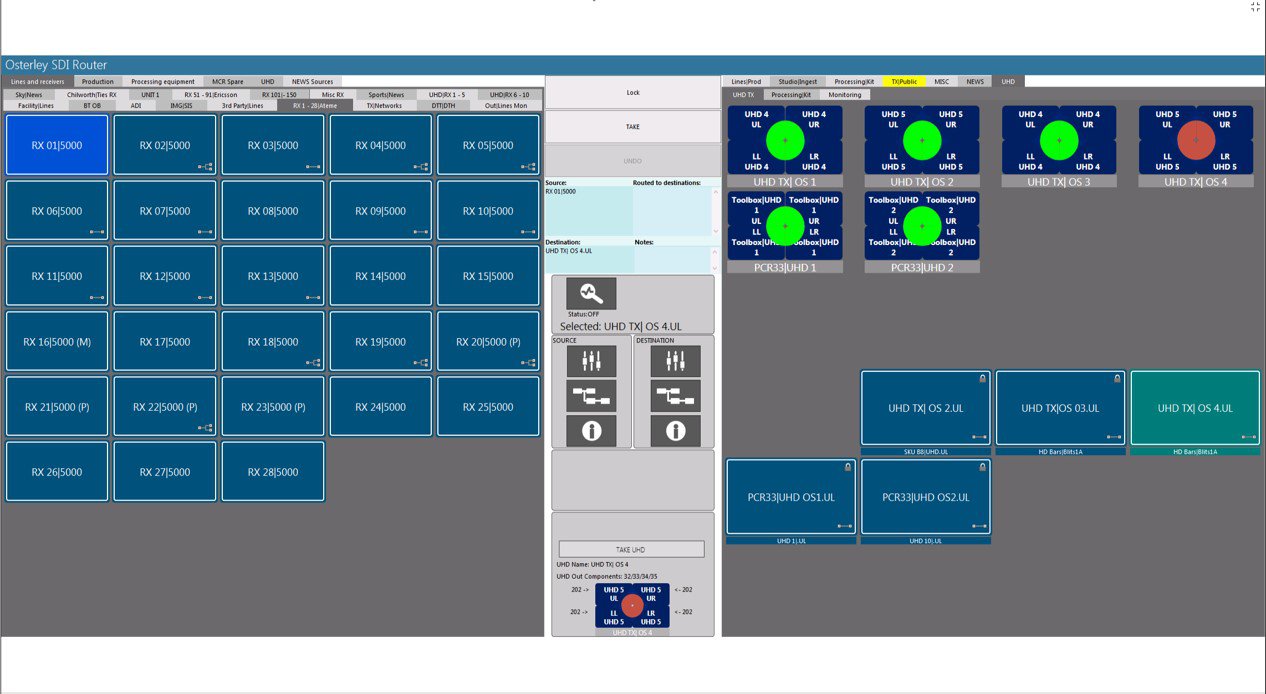

enhance your router panels with action buttons, e.g. show upstream or downstream path, parameter device control, etc. manage Quad UHD signals with a single click.

Group any signal together to a signal group and route them with a single click of a button.

route any signal: SDI, ASI, RF, IP, AES67, etc... benefit from the same look and feel for all your router panels
