Visio Shape – Parameter from a table rows, alarm from another table rows

Solved32 viewsalarm parameter table TableRowKey Visio
0
0 Comments

Hi All,
I have a "Microsoft Platform" protocol, with some "Service List" table row data.

I'm trying to use a Visio shape in this way:

PARAMETER: from a table row value "ServiceA"

ALARM: from another table row value "ServiceB"

Both from SAME element.

Visio Shape data:

Element <<DmaID/ElementID>>
Parameter <<101:ServiceA>>
Alarm <<354:ServiceB|ALARM>>

(ParameterID:TableRowKey)

Parameter is shown as expected. But alarm doesn't work.
If i separate them and i use one only one, they both works (individually).

It's doesn't work also if:

Remove "|ALARM"

or if i remove Element Data field and use:
Parameter <<DmaID/ElementID/101:ServiceA>>
Alarm <<DmaID/ElementID/354:ServiceB|ALARM>>
(in this case, it works only alarm and the parameter is blank)

Please, can someone help me? Where am I going wrong?

Reference:
https://docs.dataminer.services/dataminer/Operator_guide/Visio/linking_shapes/Linking_a_shape_to_an_element_parameter.html

https://docs.dataminer.services/dataminer/Operator_guide/Visio/linking_shapes/Linking_a_shape_to_an_alarm.html

Gabel Guagliumi Selected answer as best

1 Answer

1
21.24K 0 Comments

Hi Gabel,

I am not sure if it is possible to link one shape to a parameter, and at the same time link it to an alarm from a different parameter.

A possible option could be overlapping two shapes (one for each parameter). The top shape should be 'Text' shape.

Example:

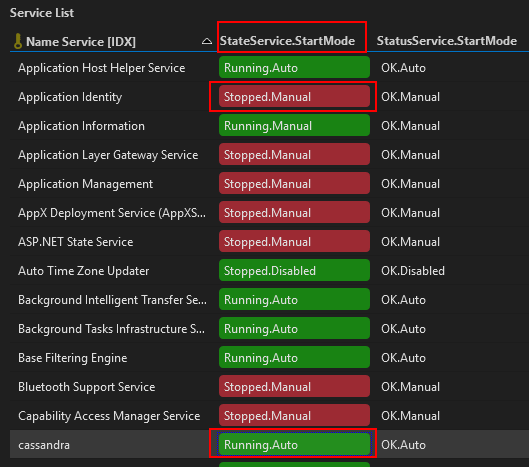

Source table

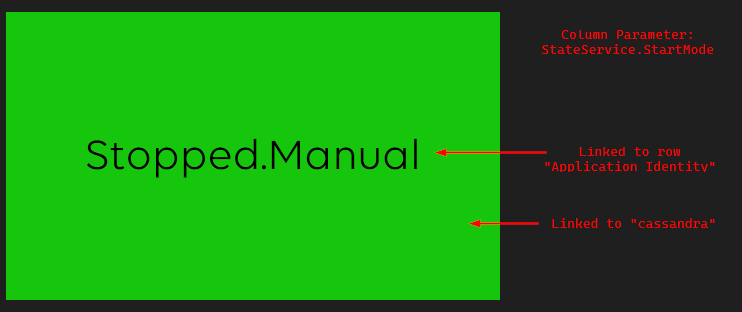

Visio file:

Hope it helps.
