I would like to configure an “Internal Element Chain” consisting of a total of five parameters from two elements, as shown in the following screenshot:
However, I can only configure two separate “Internal Element Chains,” inside Correlation -> Connecitvity Editor..
but I cannot connect them in this logic.
Creating a service with all five parameters and then configuring an “Internal Service Chain” only allows me to consider the parameters in isolation in their elements:
Does anyone know of another way I can implement this? The only thing I can think of is to create exactly one corresponding service for each parameter and then build a normal "Service Chain" with five services, but I hope there is a more elegant way.
Hi Gregor,

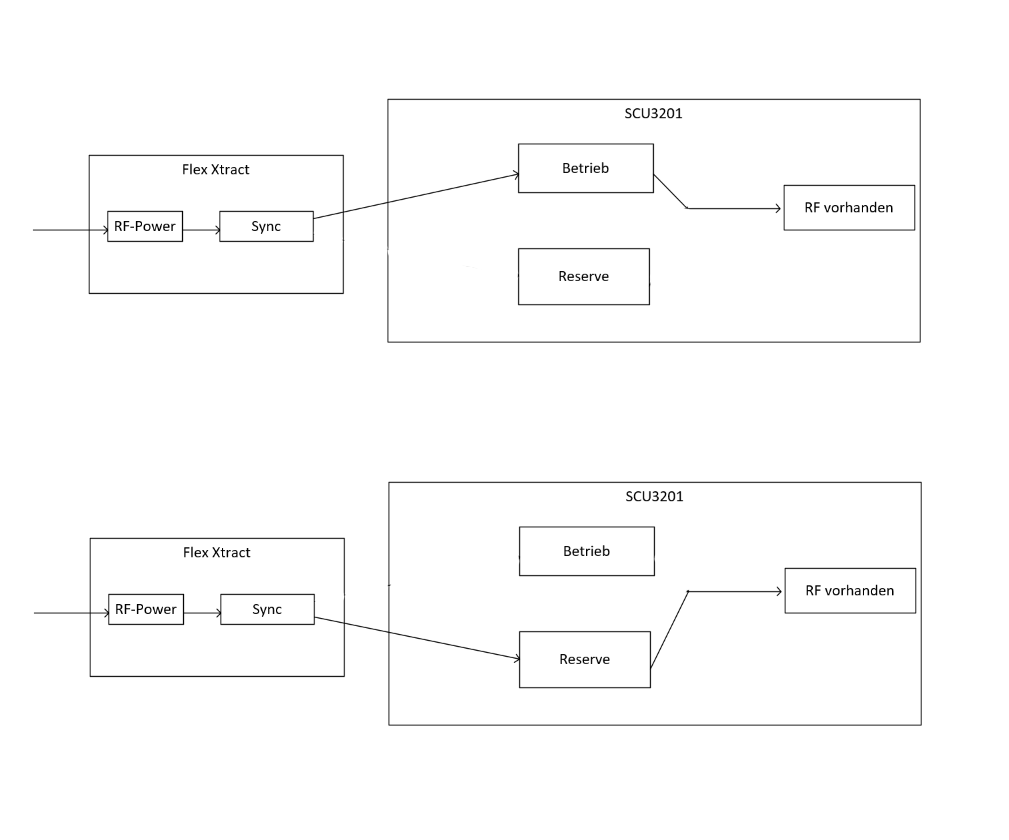

Would it be possible for your use case to define this as 2 separate RCA chains? One for the "Betrieb" path and one for the "Reserve" path? I've tried to edit your sketch below:
Hi Michiel,
while this could be possibility, it still would require to create one Service for each Parameter(small boxes), because I can't create a RCA chain with Cross-Element Parameters. Meaning "Internal Element Chains" (large boxes) can not be chained out and into another Element, which is what I'm trying to achieve.
As described before, creating one Service for each Parameter let's me create this logic even with the branching out of the "Sync"-Parameter, but as I said, I was hoping for a less workaround-ish way. 🙂
