node edge layered leves

166 views
2
0 Comments

Hello

Its posible indicate in the host data for node edge the position to the layered down?

somethink like give the top level to a ICA-NAZ...., second level yo AYA-PUQ... and continue this host, the data comes from a GQI so i can agregate o change data as it needed.

Thanks

Edited using wigth property:

Juan Falcon Edited question

1 Answer

1
22.42K 4 Comments

Hi Juan,

You can use the override option for nodes (Node Edge Graph Settings, see node override and weight).

You can have a look at this tutorial that use these settings.

Hope it helps.

Juan Falcon Posted new comment
Juan Falcon commented

Hi Miguel

Thanks for the tutorial, the override fuction was exaclty what i need.
Juan Falcon commented

Hi Miguel

Im using the Override and work for levels but only when the top element its just ome, for topology it can start with two elements on the top but the weight parameter just put on the top one, can be placed more that one element?

thanks
Miguel Obregon [SLC] [DevOps Catalyst] commented

Hi Juan,
Yes, it is possible. I assume that your filter is based on the element name. You could use another value as a filter for the override.
For example, you can use an element property as filter. The value of the element property should be the same for both elements on top.
Hope it help.
Juan Falcon commented

hi Miguel

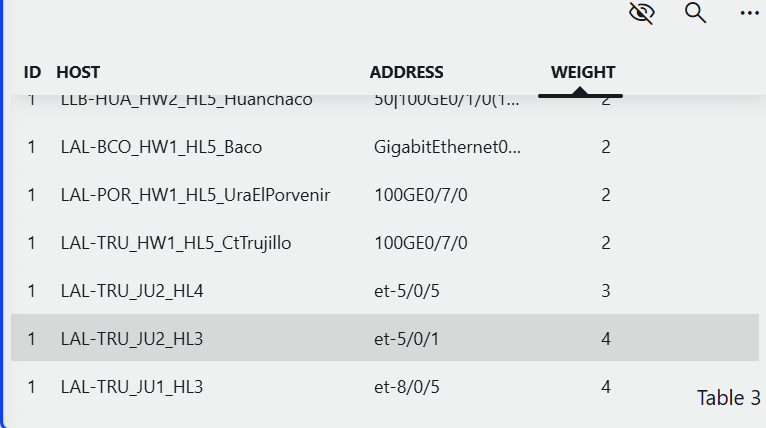

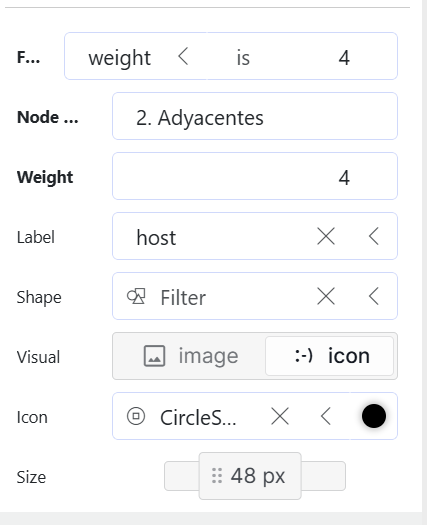

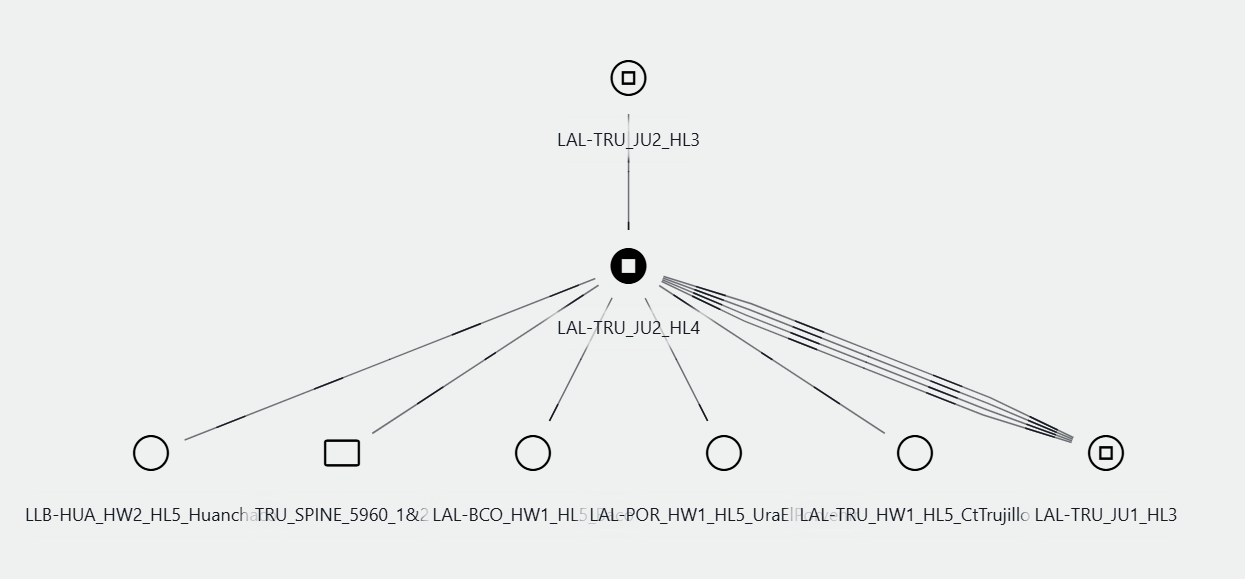

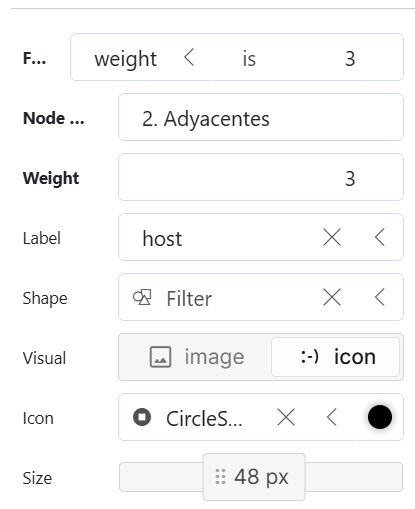

I edit the main question to upload images. you can see that im using a table with calculated weigth and used as well in the filter but the result is the same, only one element on the top.

Thanks
