“DisableWritePids” not working on dynamic table displayed in a shape

Solved82 viewsDisableWritePids Dynamic Tables parametercontrol ParameterControlOptions Visio
0
0 Comments

Hi Dojo!

I display a dynamic table in a shape and filter successfully by columns and with the TableRowFilter.

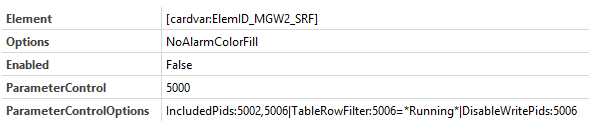

One of the output parameters is a writable parameter. To prevent anyone from changing this parameter via the table, I want to use “ParameterControlOptions” with “DisableWritePids” but so far without success.

Am I misunderstanding something here, or am I doing something wrong?

Thank you very much for your feedback!

Daniel

Daniel Zank [DevOps Advocate] Selected answer as best 8th September 2025

1 Answer

1
20.67K 1 Comment

Hi Daniel,

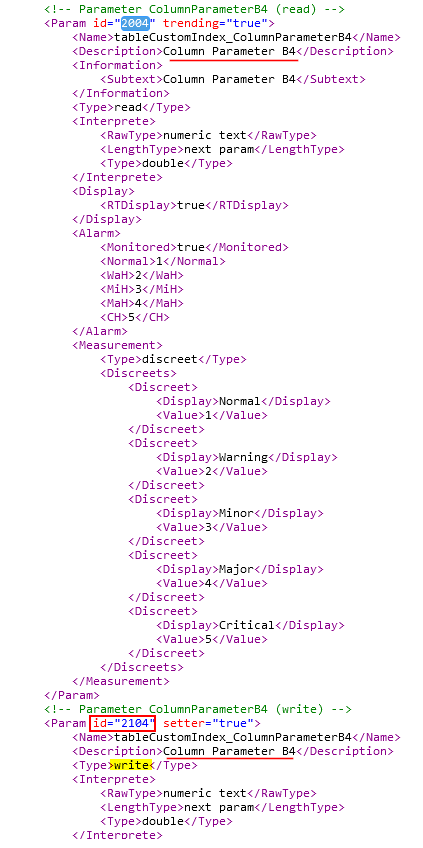

I performed a small test and you will need to use the write parameter PID (instead of the read parameter ID). To determine the write parameter ID, you could have a look at the protocol definition. The write parameter will have the same description as the read parameter. See example below:

Hope it helps.

Daniel Zank [DevOps Advocate] Posted new comment 8th September 2025
Daniel Zank [DevOps Advocate] commented

Hi Miguel, thank you very much, that's the solution! It works now as expected. Best regards, Daniel
