AssignVisioFileToView alternative in C# Automation available?

16 views
0
0 Comments

Hello,

I need to create some views (with assigned visio) by using automation script on a regular base.
Is there an alternative c# method available to use instead of the AssignVisioFileToView webservice?

Thanks,

Paulo Henriques [SLC] [DevOps Advocate] Answered question

1 Answer

1
1.79K 0 Comments

Hi Peter,

Yes! The C# alternative is `AssignVisualToViewRequestMessage` from the `Skyline.DataMiner.Net.Messages` namespace. Send it via `engine.SendSLNetMessage()` in your Automation script:

using Skyline.DataMiner.Net.Messages;

var msg = new AssignVisualToViewRequestMessage(viewID, "MyVisio.vsdx");

engine.SendSLNetMessage(msg);

This is the proper SLNet message handler equivalent, it internally dispatches via `NotifyType.VdxChangeViews`, the same underlying mechanism as the SOAP webservice, but without the HTTP overhead.

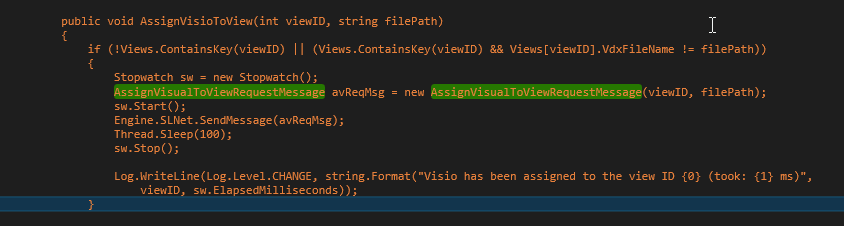

Here is another example I took from an automation script I wrote some time ago:

Hope this helps!

Paulo Henriques [SLC] [DevOps Advocate] Edited answer
