SONY LEO – MONITOR AND CONTROL
2110
Sony
This use case shows Sony LEO deployed on an UHD ALL-IP OB-truck. Multiple monitoring and control surfaces have been deployed to keep control on all aspects of this OB-truck.
USE CASE DETAILS

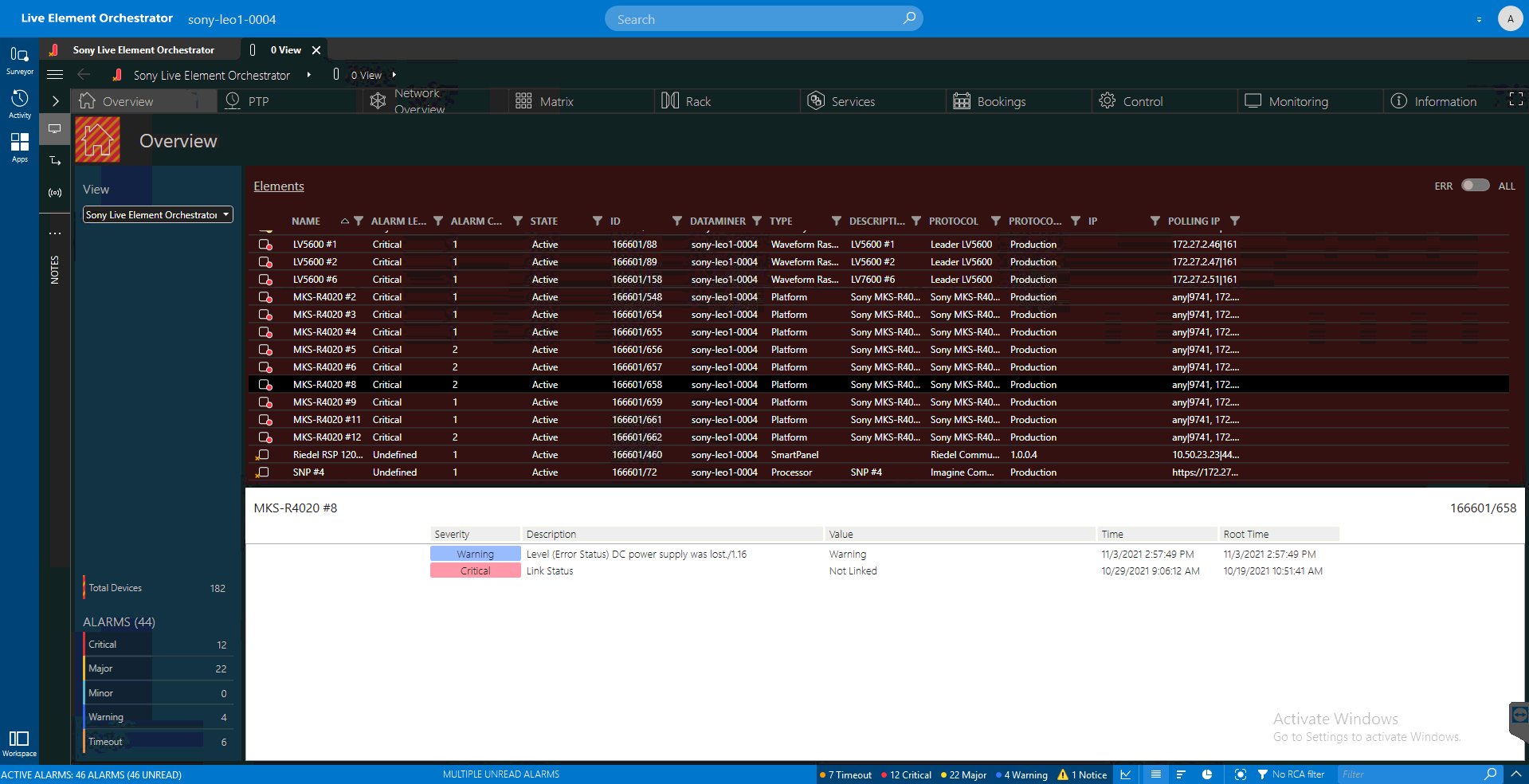

This is a general overview showing the health state of all the equipment used on the OB-truck. Close to 200 devices are monitored and controlled by Sony LEO.
PTP-Monitoring is essential for every SMPTE ST-2110 project.

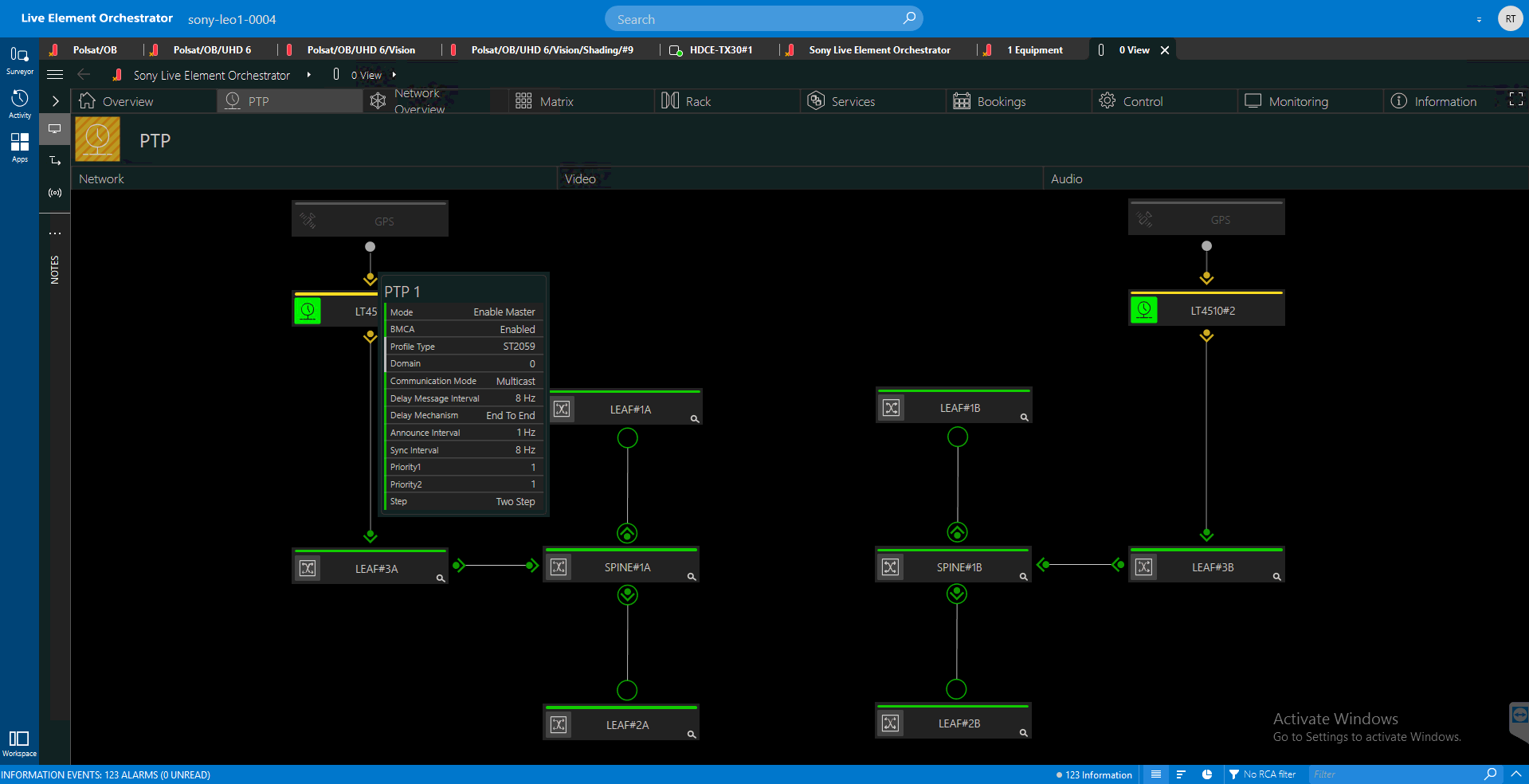

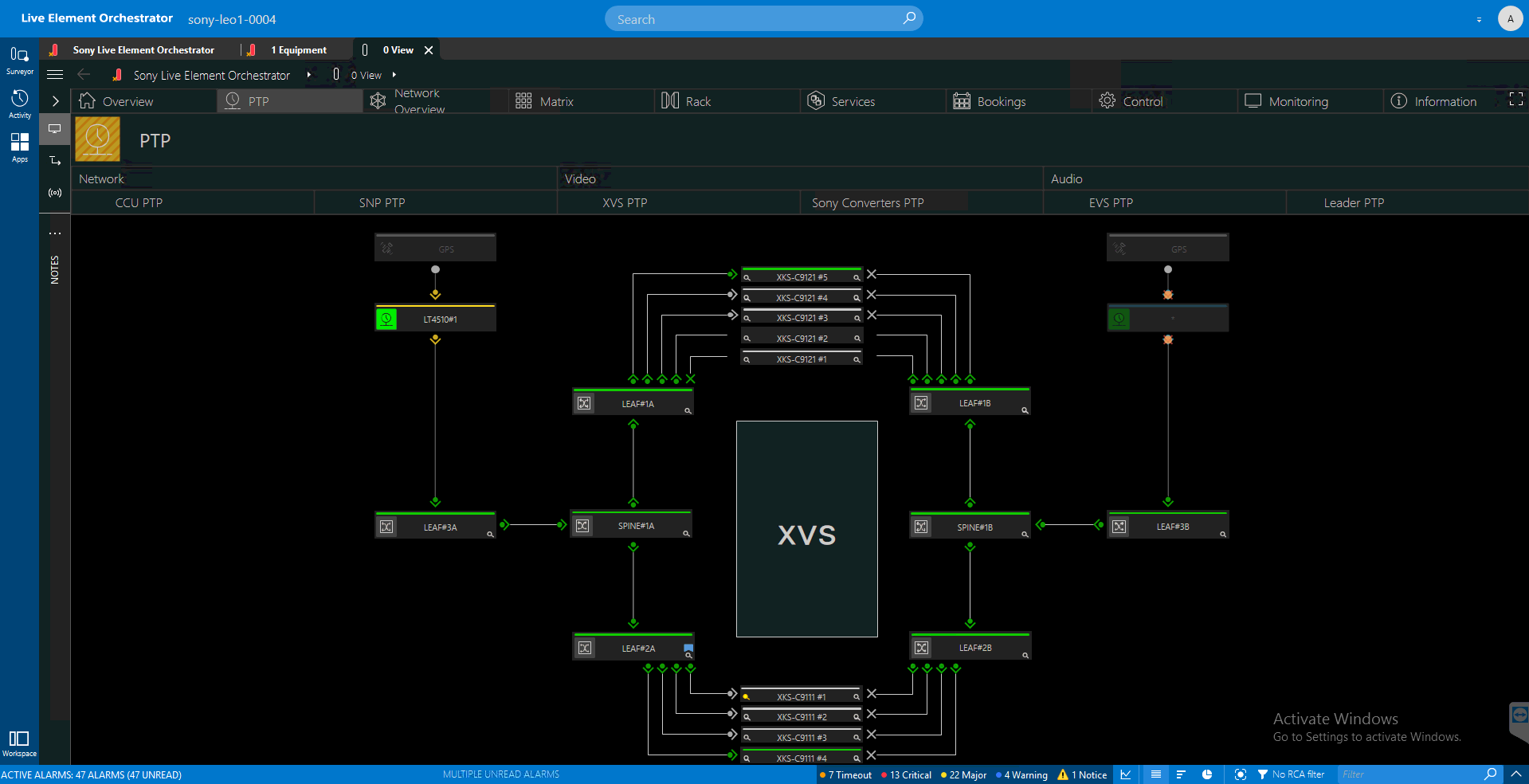

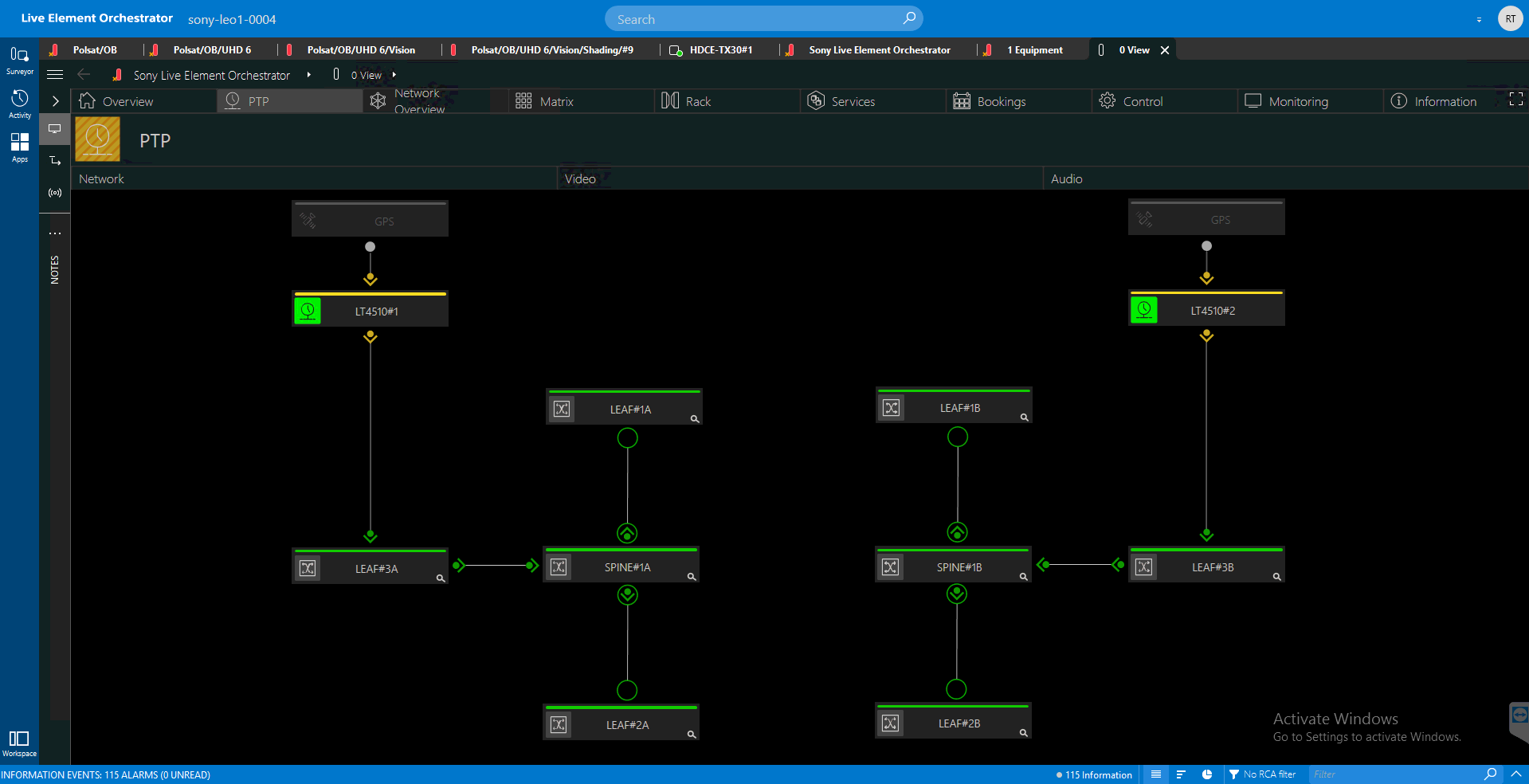

Simply click on one of the one of the switches, those are PTP boundary clocks, to get more PTP details.

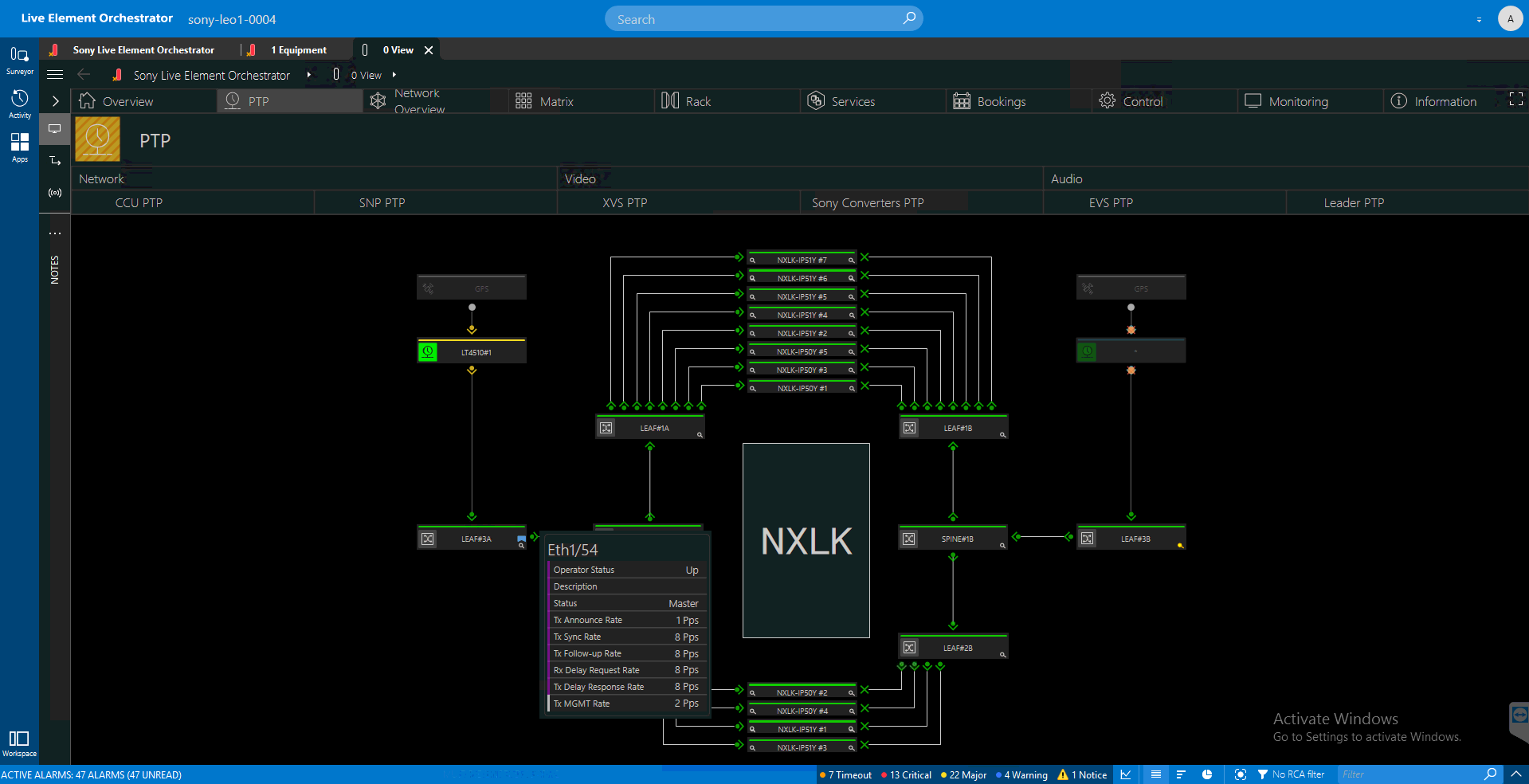

The same goes for the configuration of your PTP grandmaster. Every PTP parameter is permanently monitored.
Sony LEO also monitors your PTP slave devices.
Every visual overview is interactive. Click anywhere to get more details.
Sony LEO also interfaces with your test and measurement equipment.

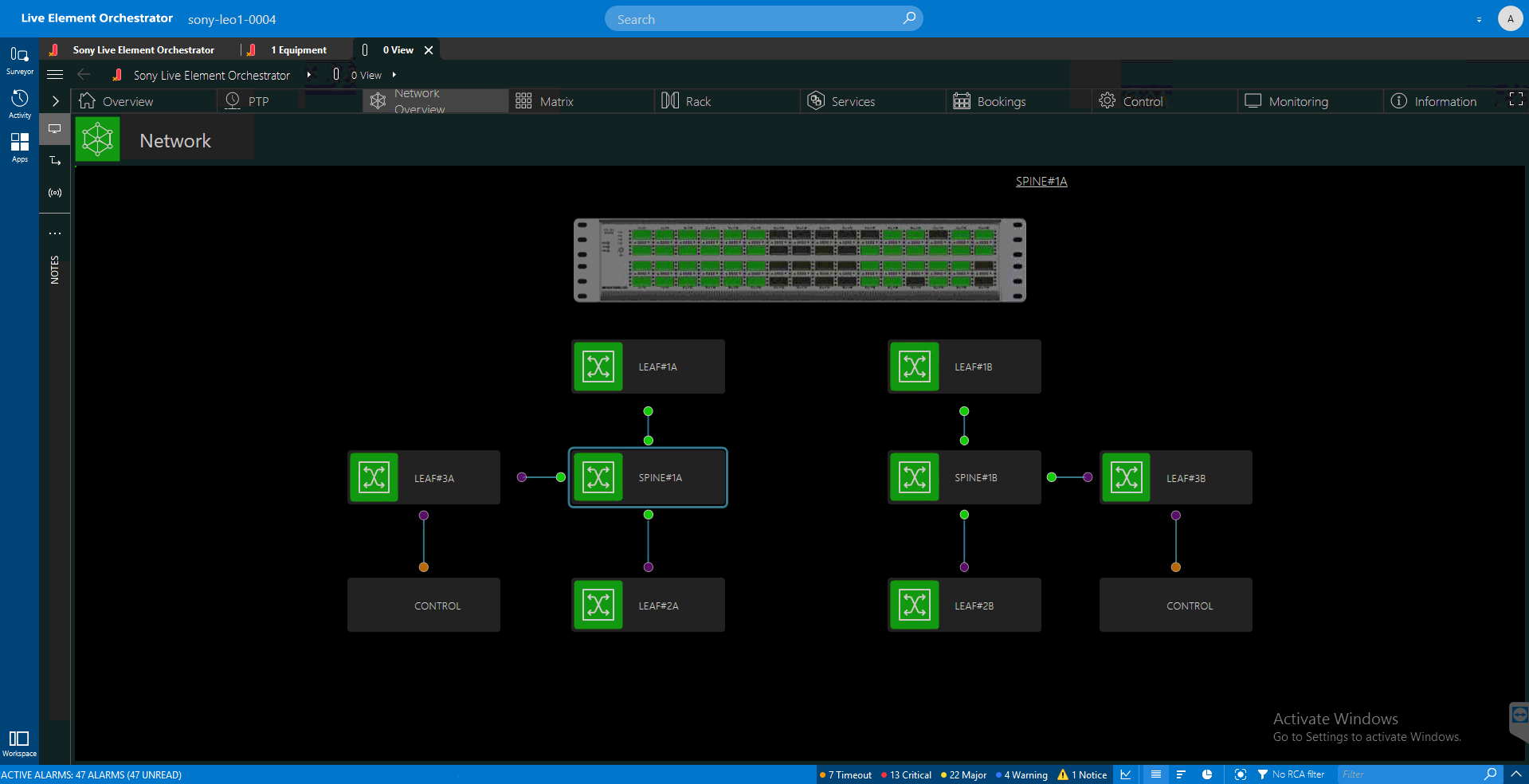

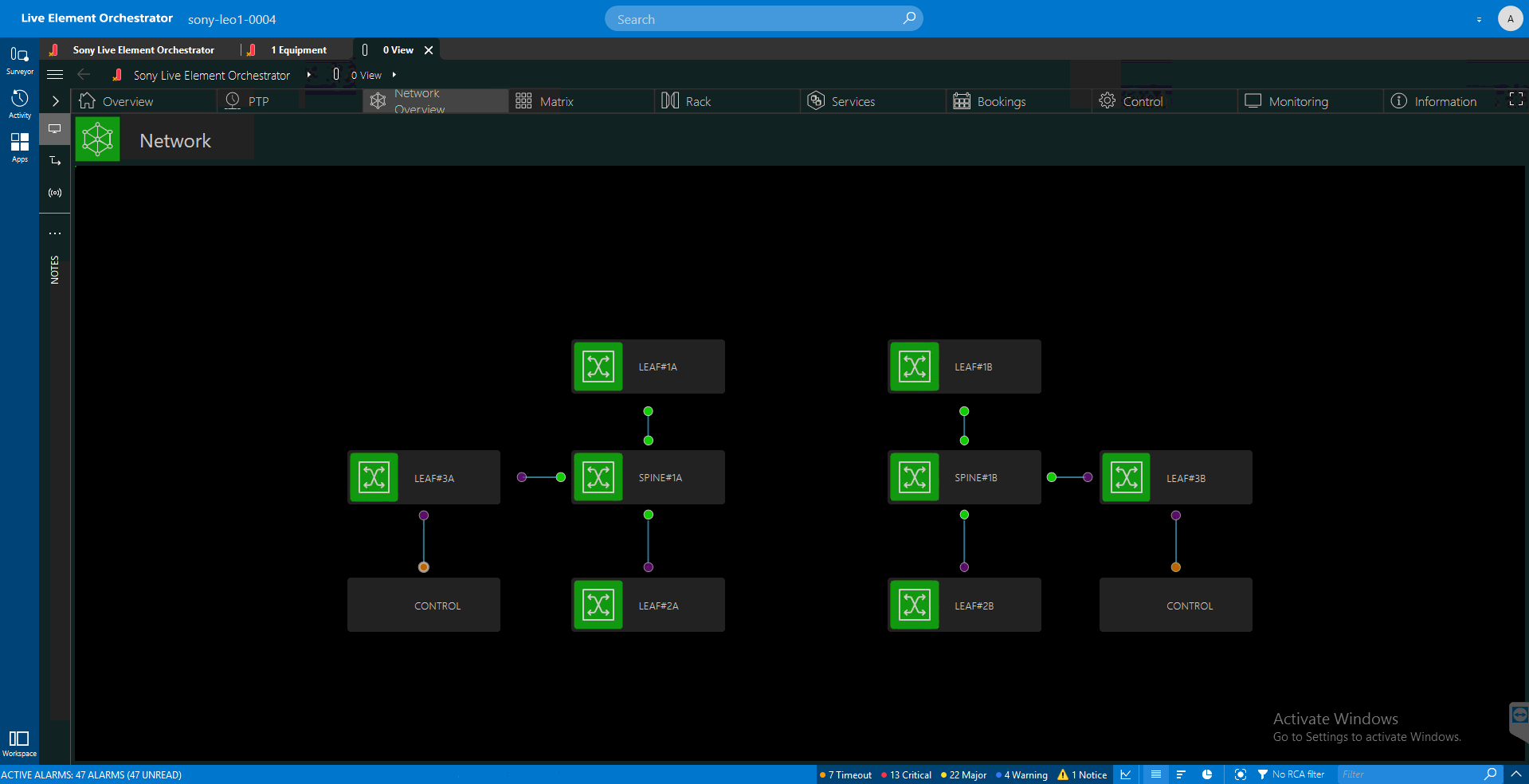

This is an overview of the redundant spine-leaf network.

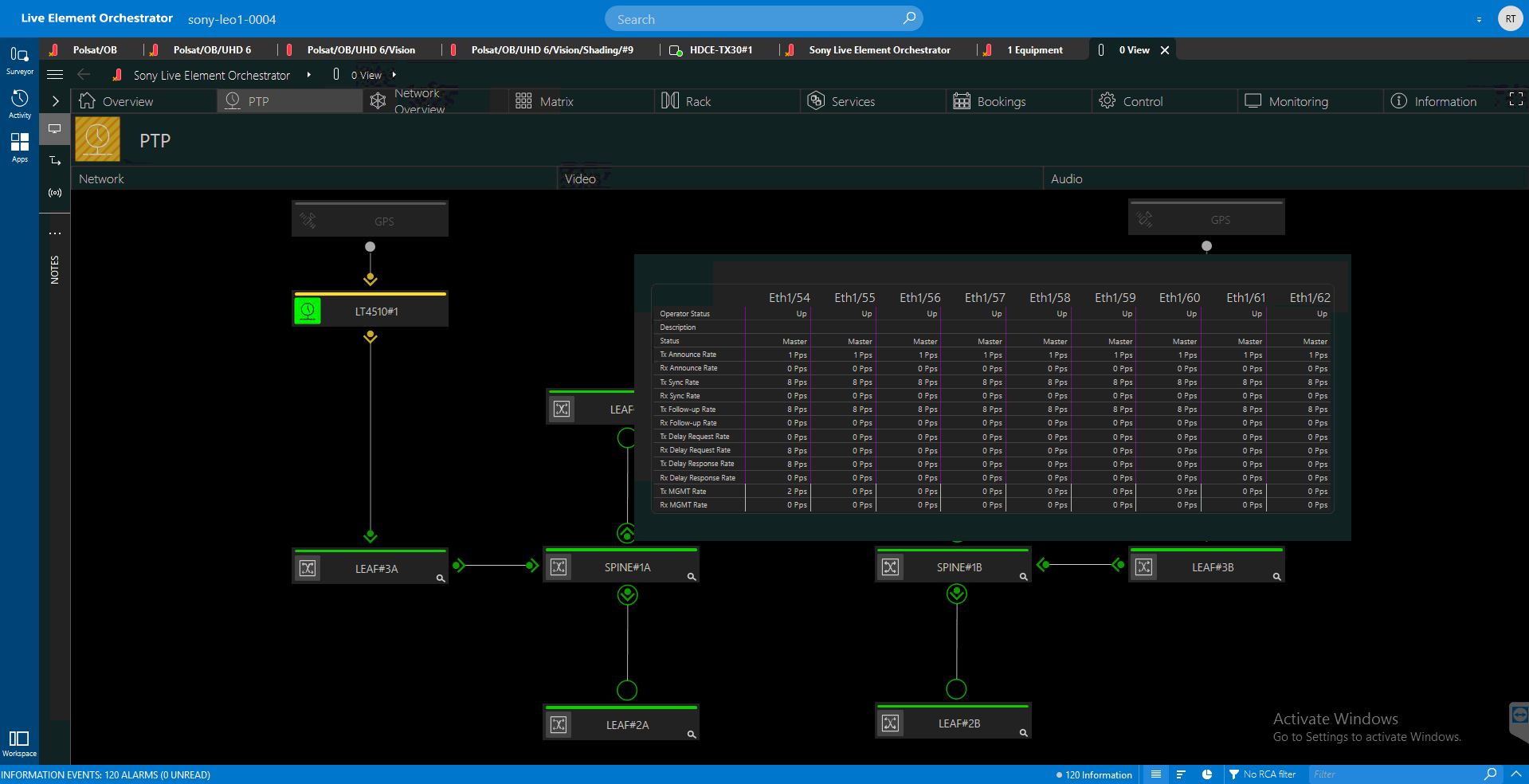

Select one switch to see detailed real-time information for each switch.

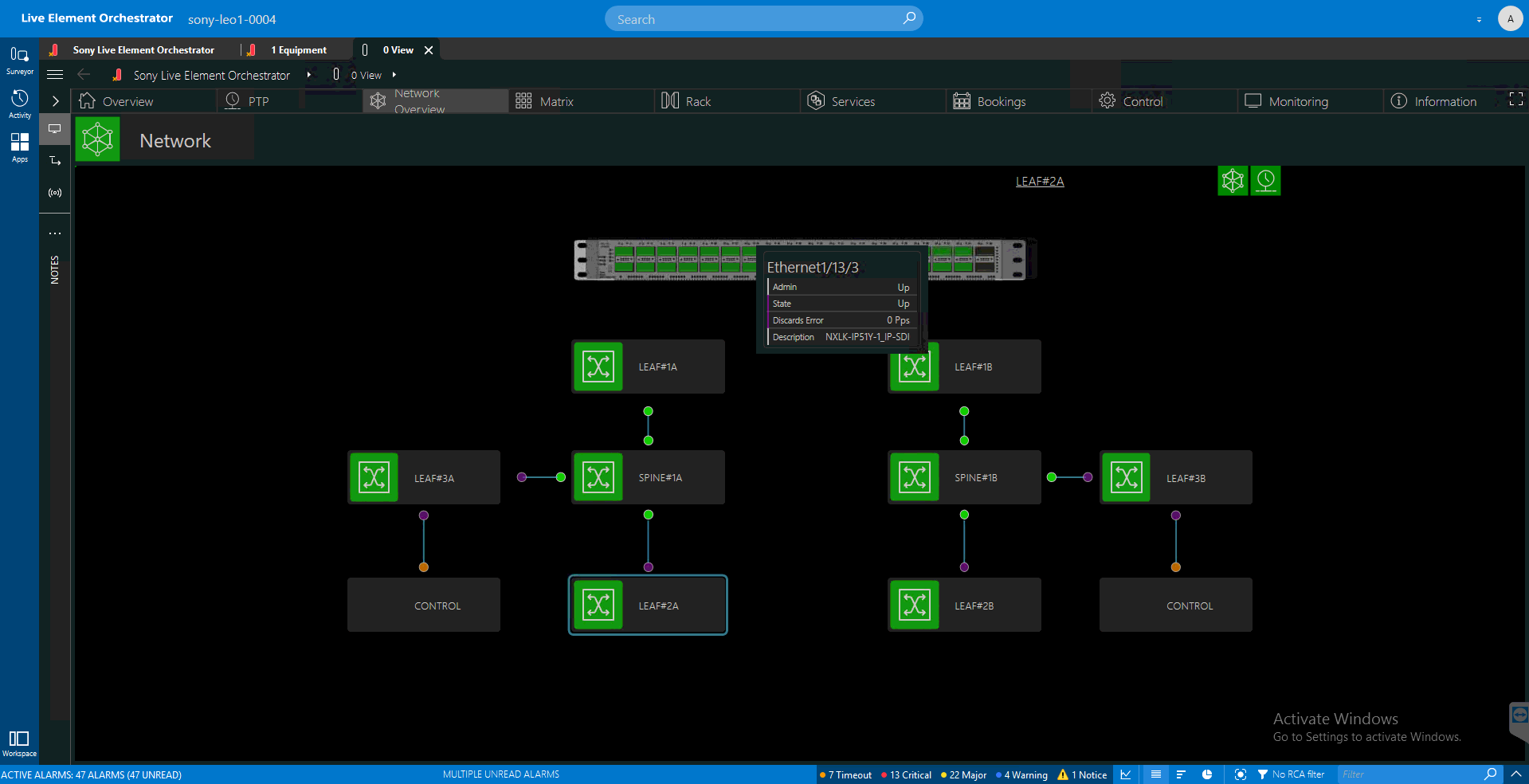

Click on any network interface to get more information.

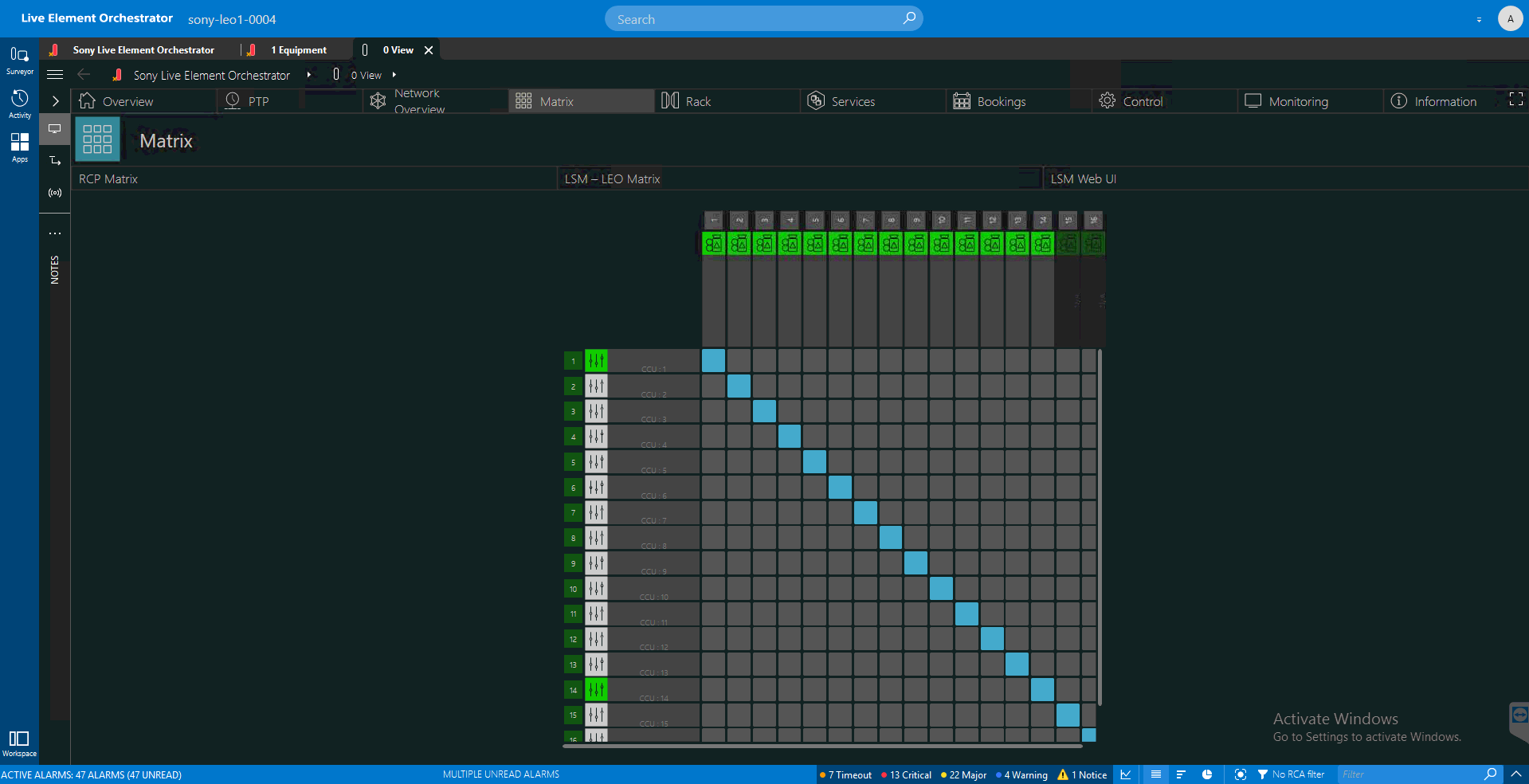

With this control surface you can connect any CCU with any of your RCPs on the truck.

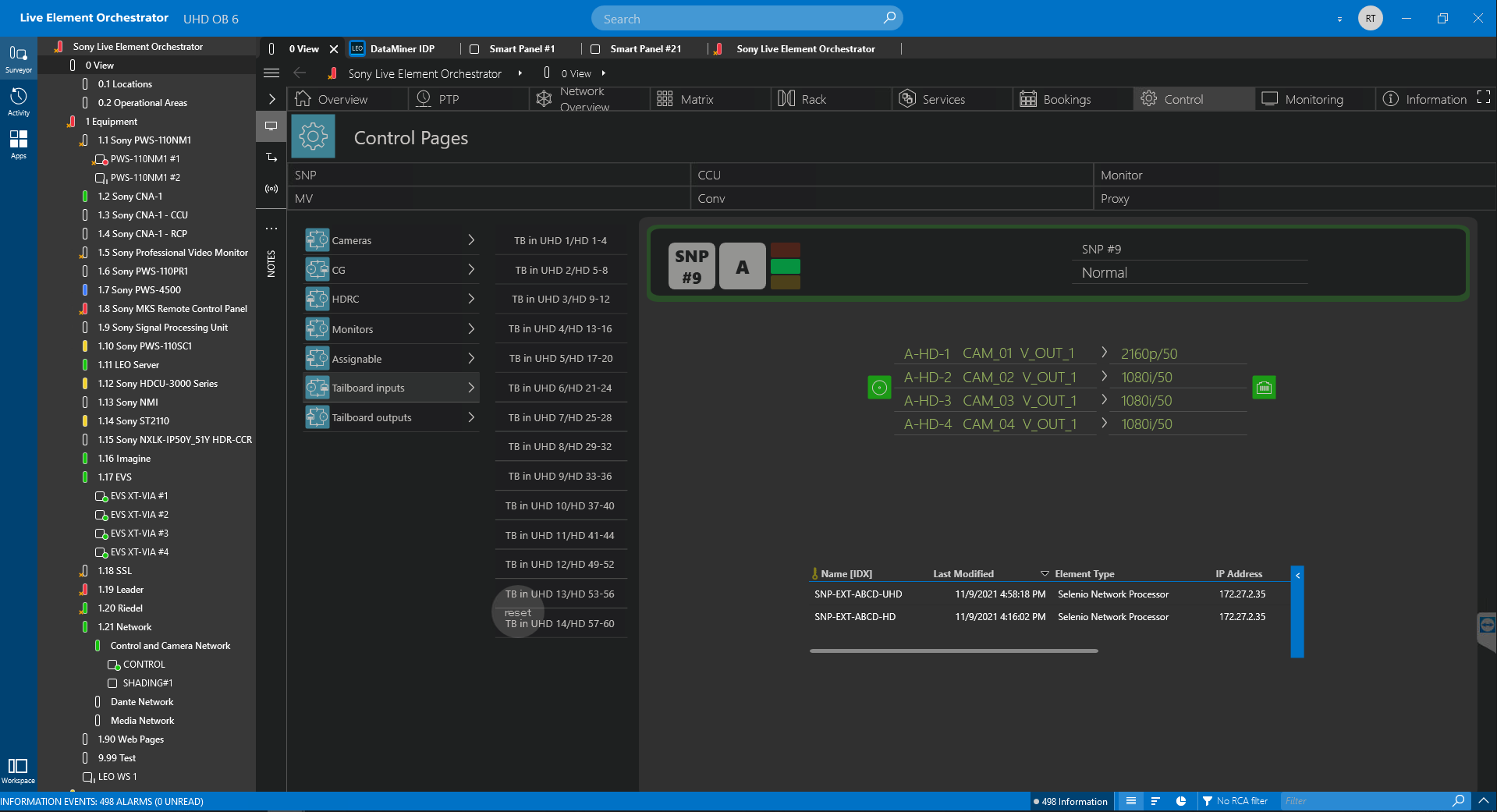

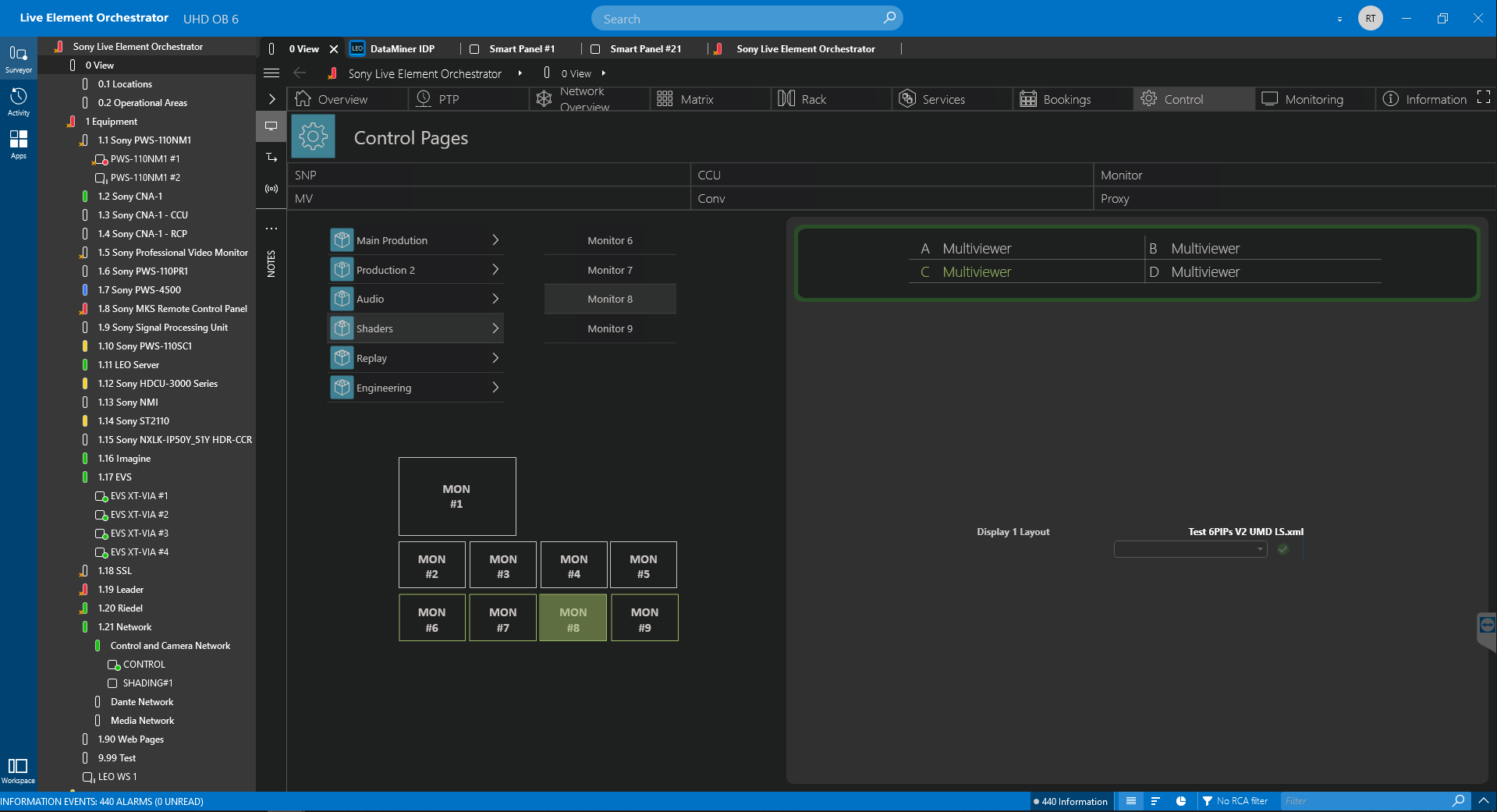

Easy-to-use control interfaces have been deployed to control your multiviewers, e.g. to load a different layout.

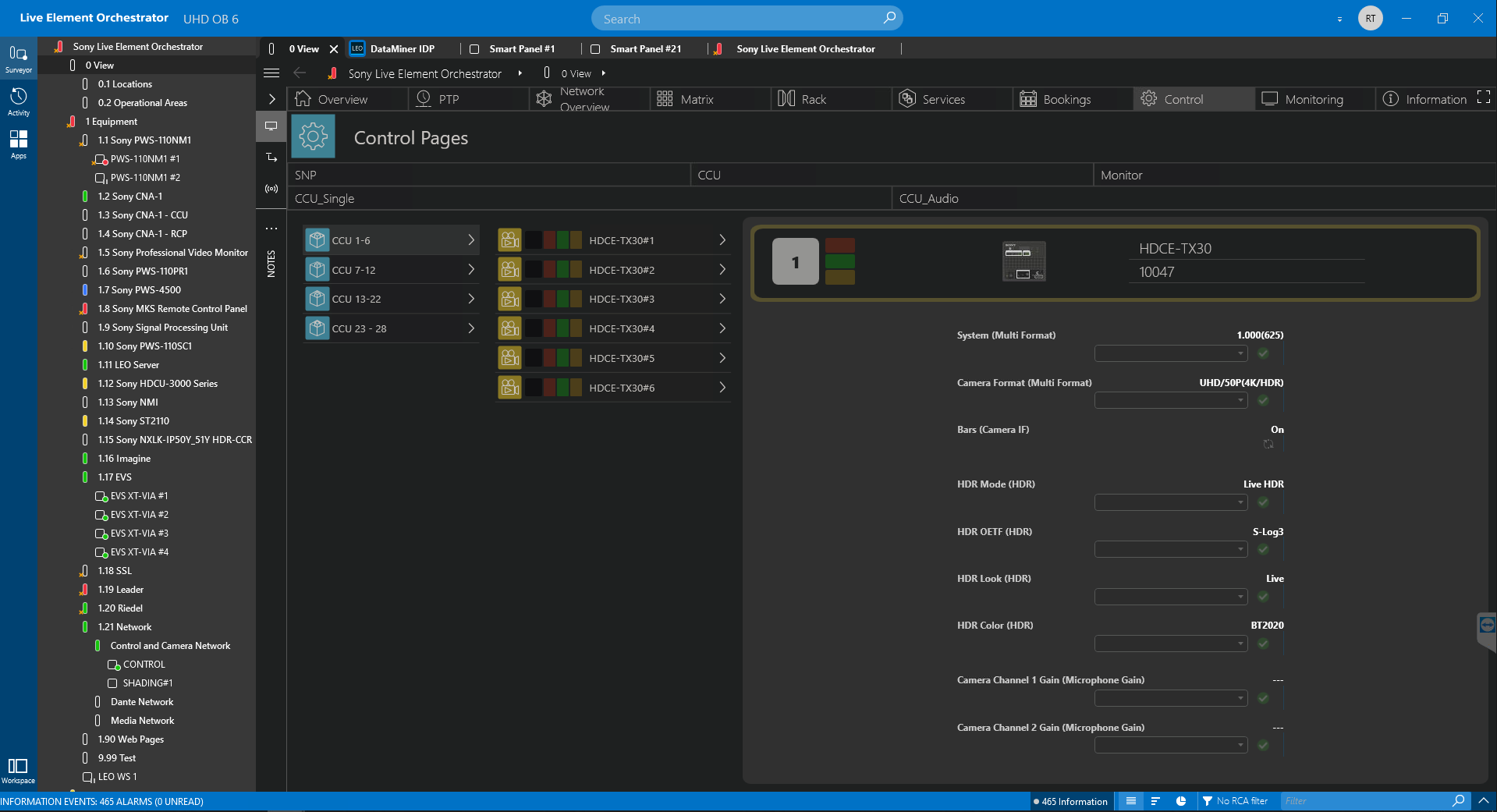

You can also control every parameter of any of your CCUs in real-time.

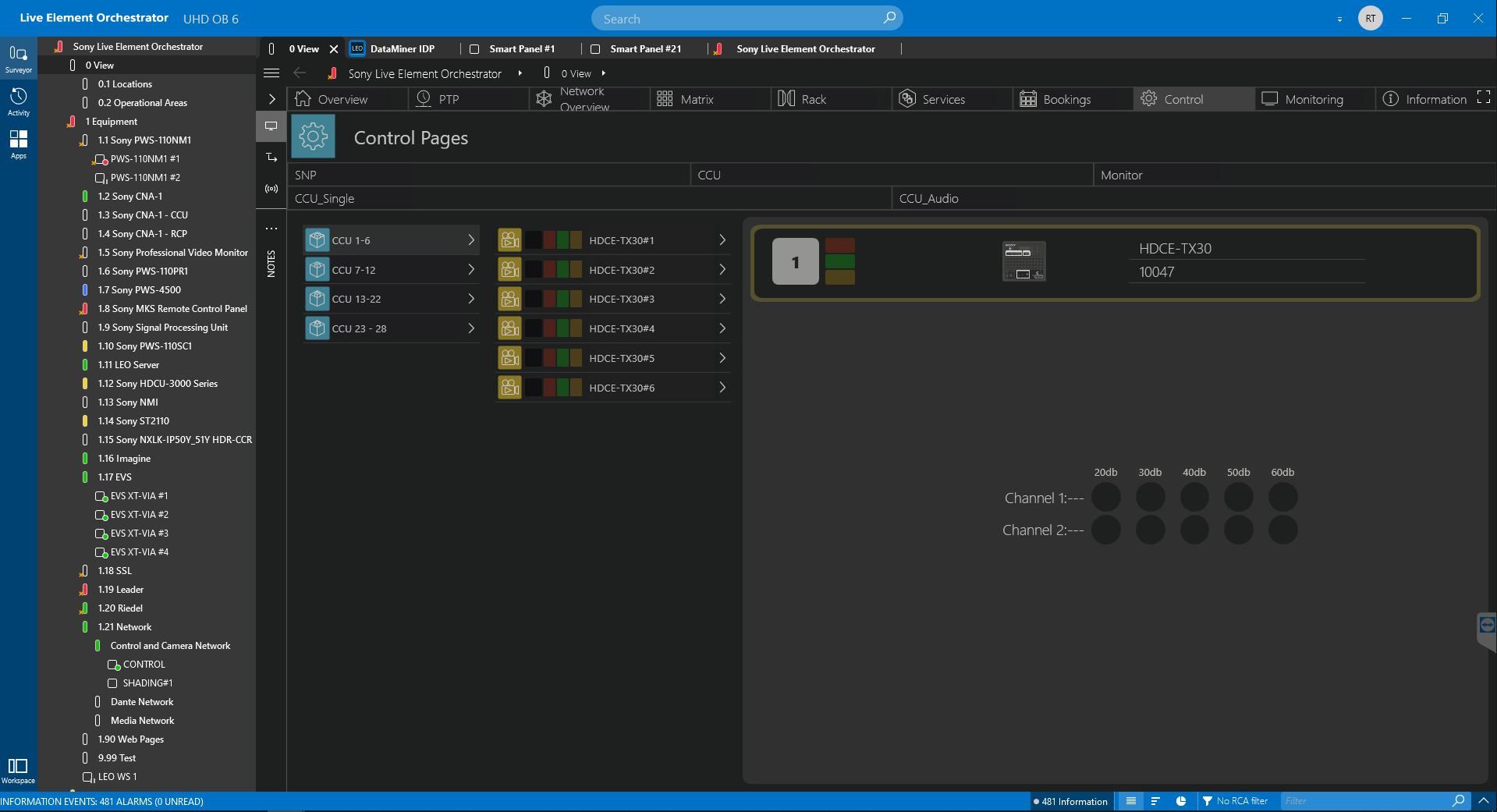

Here you can set your audio configuration for each CCU.

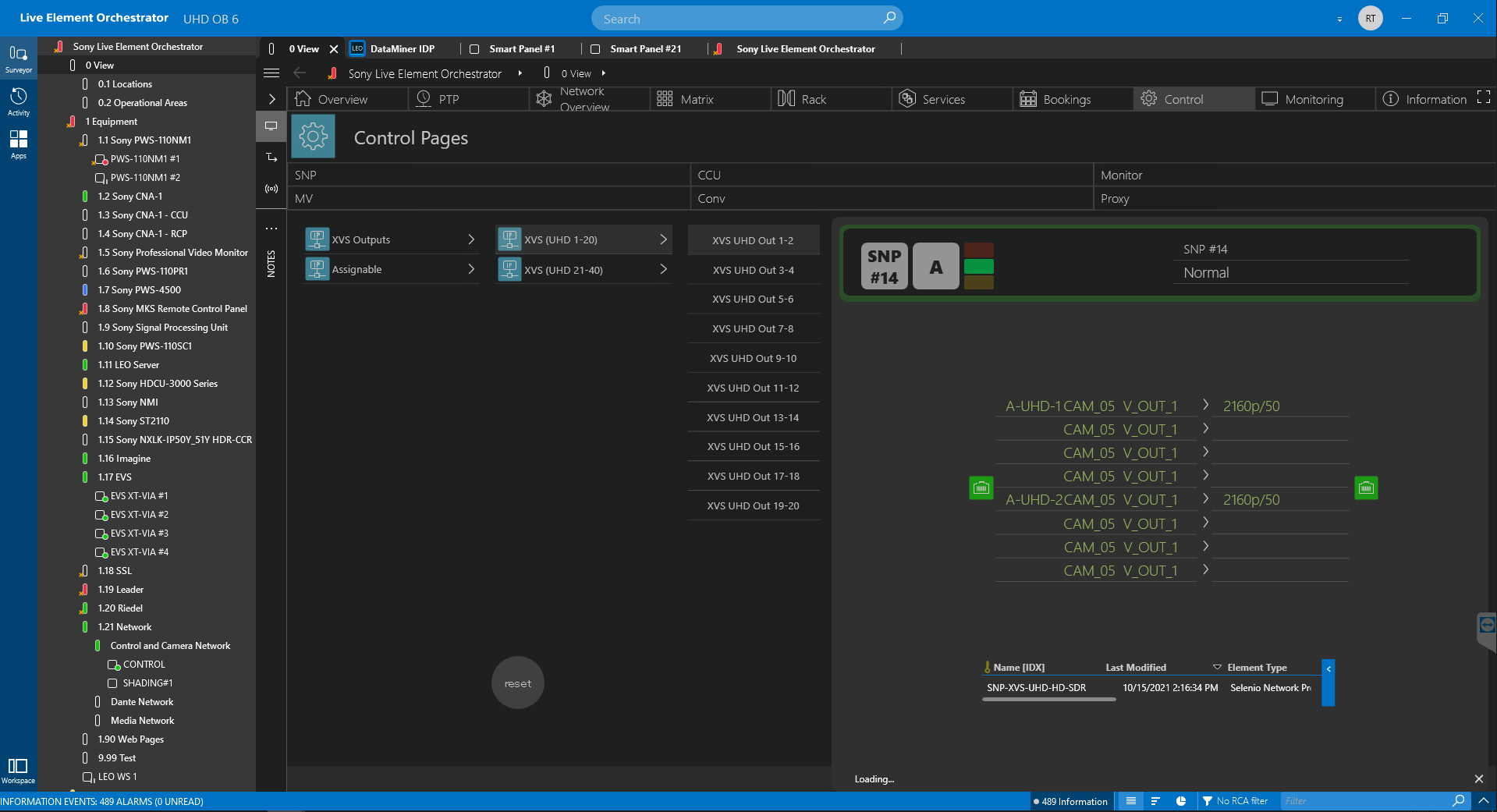

With a few clicks you can navigate to all your Sony XVS outputs and configure your video processing on the attached processing devices.
Sony LEO is not limited to Sony devices only, any product from any vendor can be implemented.

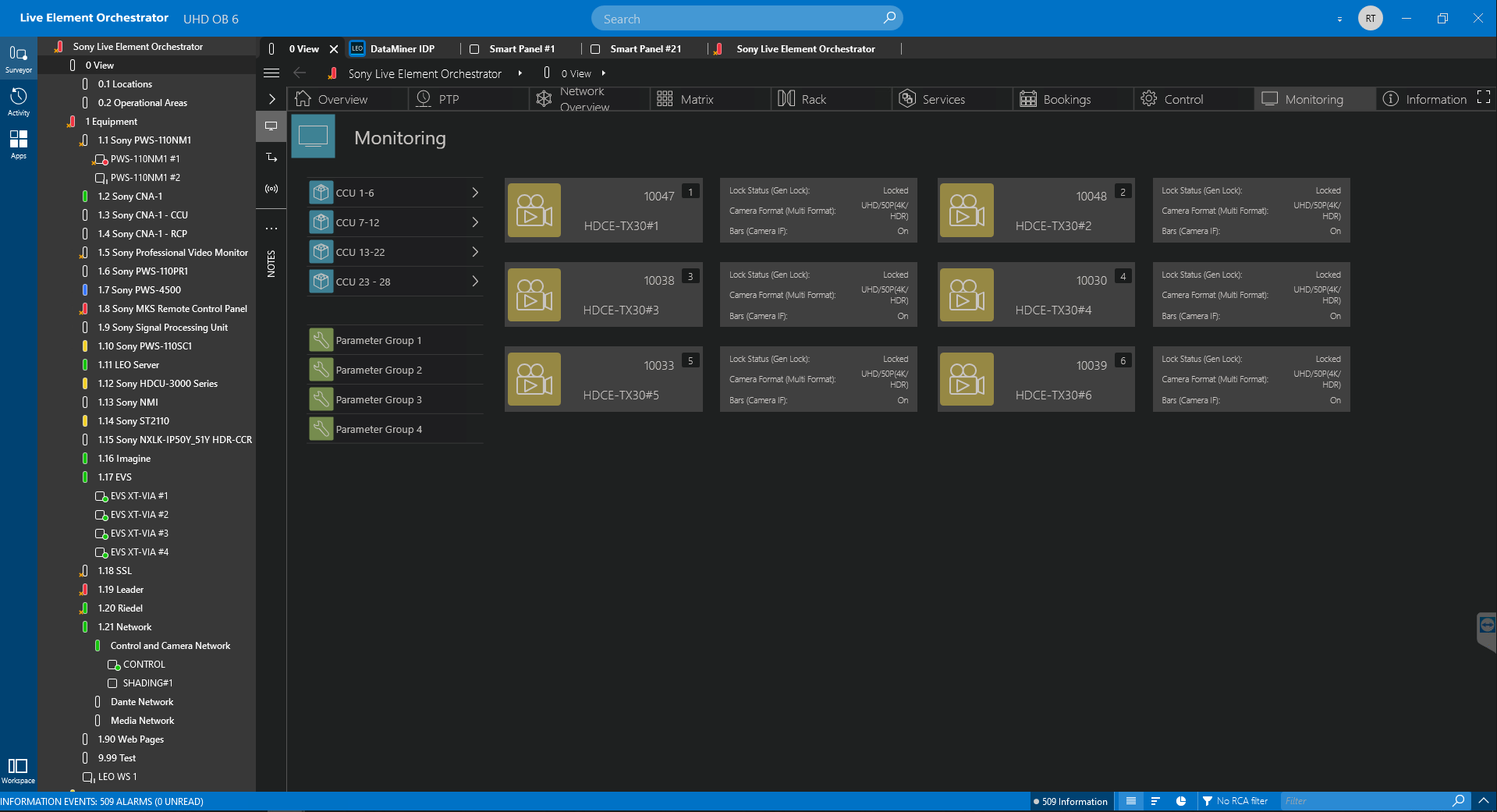

This screenshot shows your CPUs with the most important parameters such a lock status and camera format.

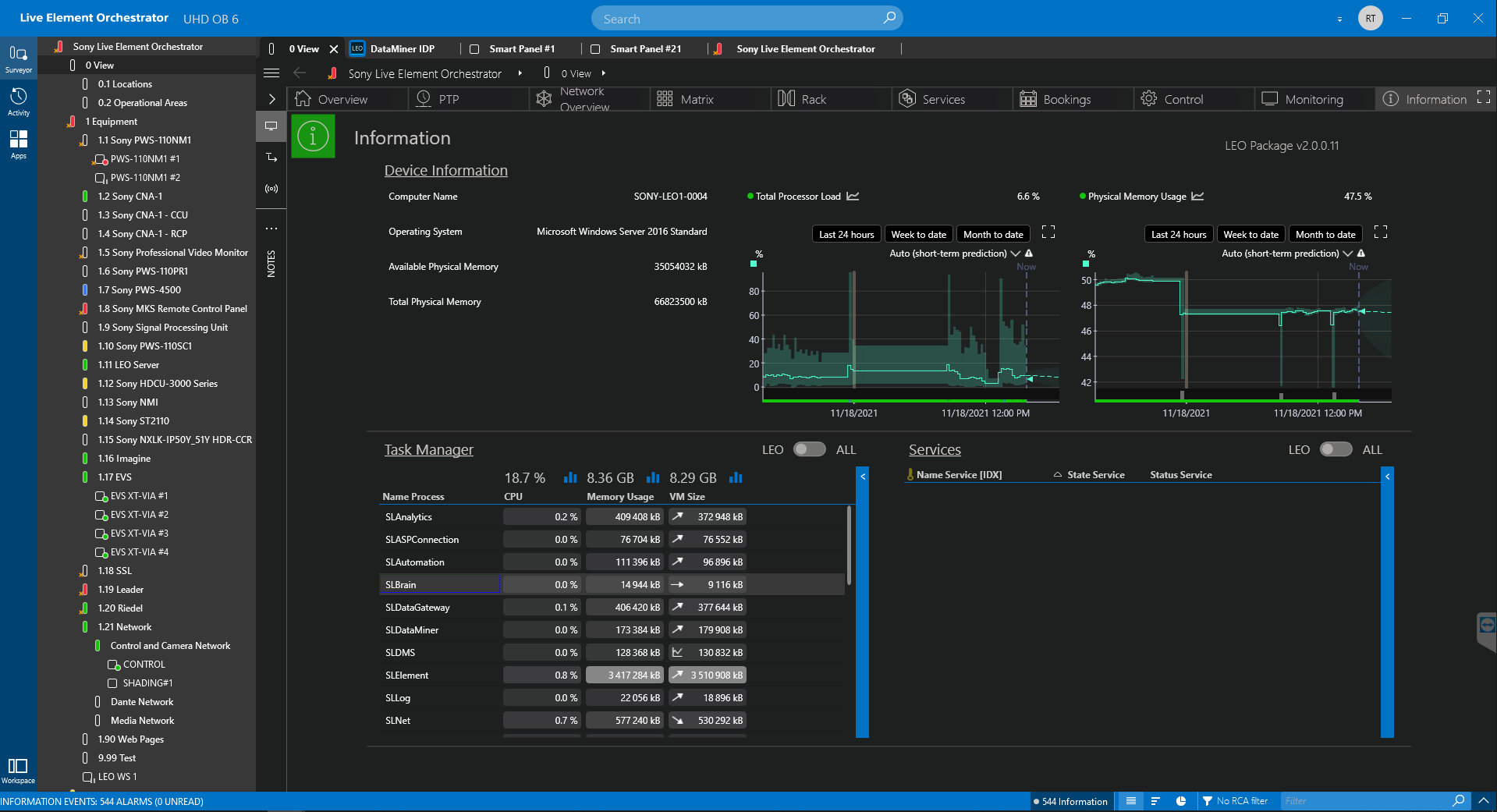

And here you can see how Sony LEO monitors a server running a Windows operating system. Real-time information on each process together with performance monitoring of CPU load and memory usage.
