solution Use Case
Riedel – Tech Partner Integrations
Take a look at this use case to learn how DataMiner Visuals & Dashboards are used to manage Riedel devices & solutions:
- Riedel SmartPanel
- Riedel MuoN
USE CASE DETAILS

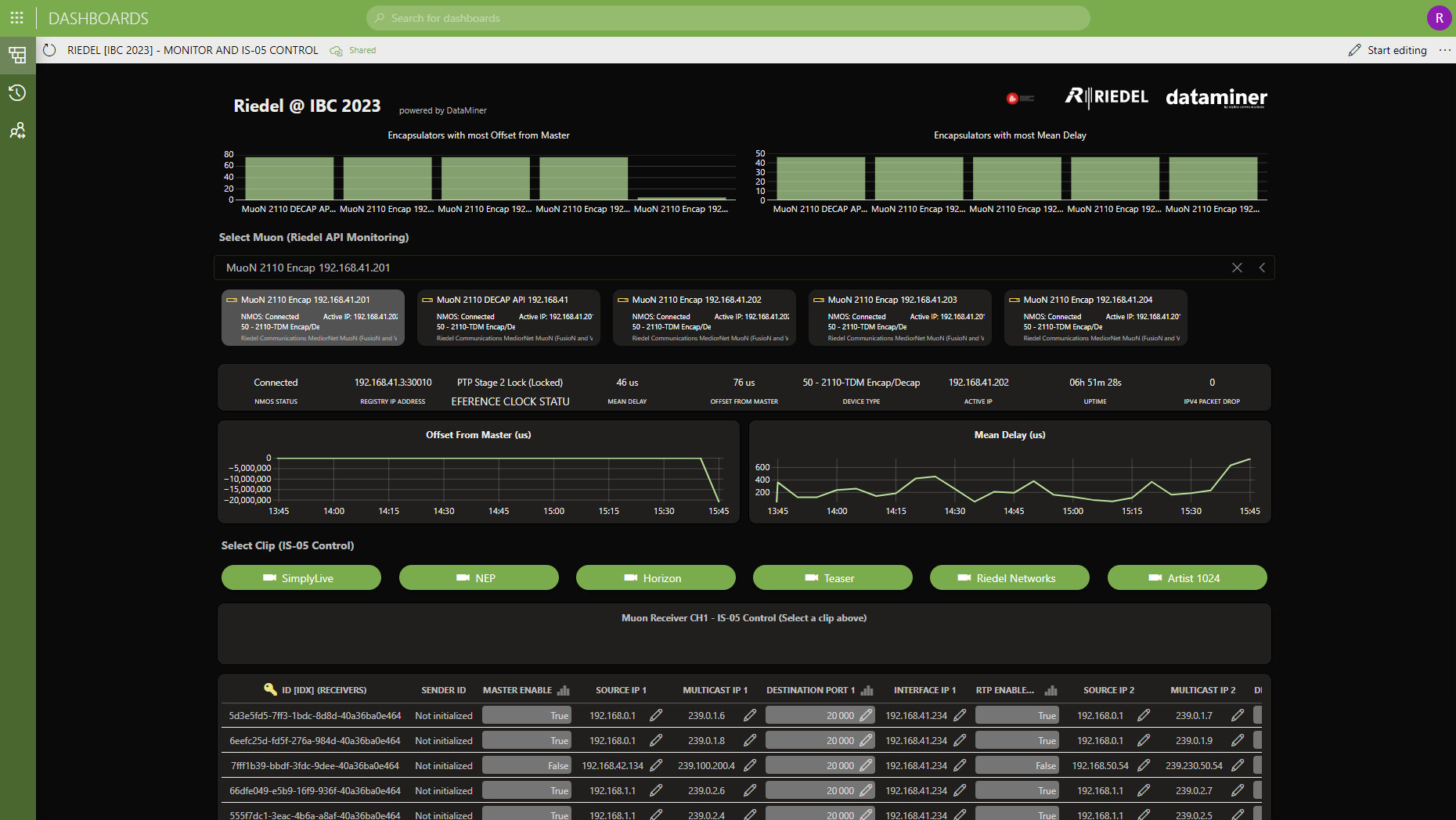

This control surface demonstrates real-time ST2110 signal switching on the Riedel MuoN platform. It is based on the open NMOS IS-05 specifications, combined with monitoring Riedel MuoN via the MuoN API.

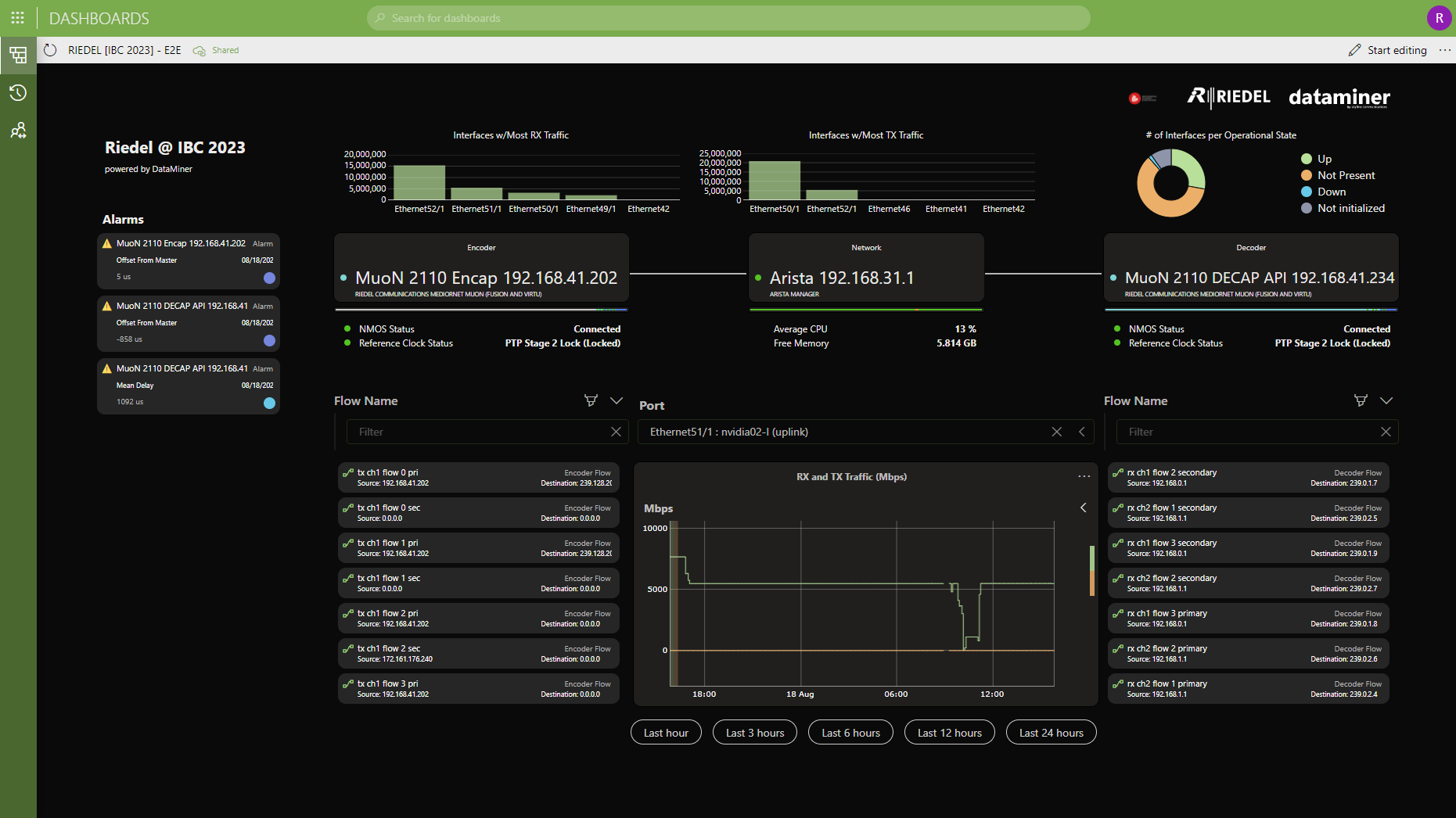

In this example dashboard, we monitor ST2110 encapsulators and decapsulators and also verify the network utilization across the Riedel lab media network (Arista switches).

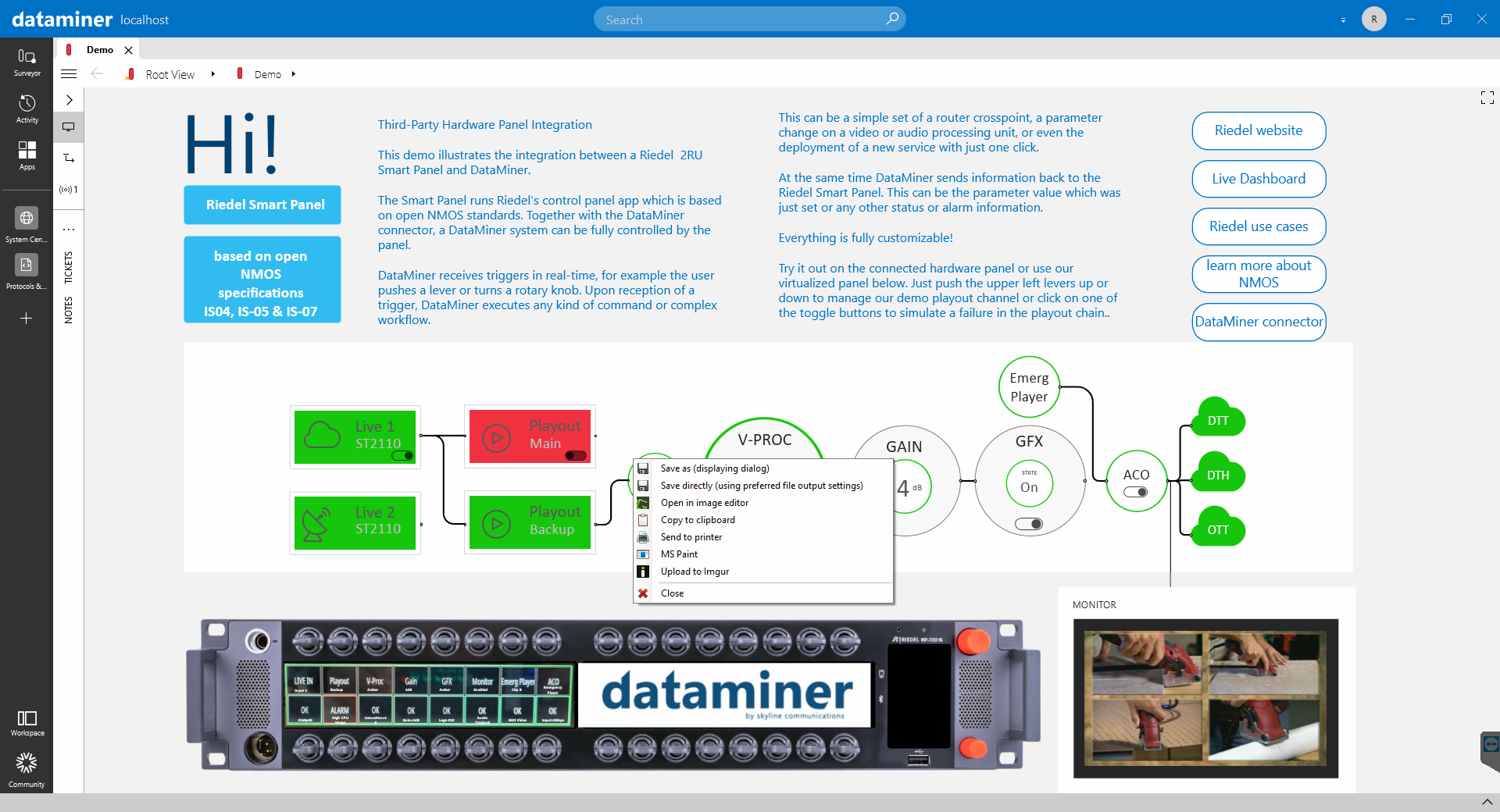

Use the Riedel SmartPanel to control DataMiner directly from the panel. More information can be found in this use case.

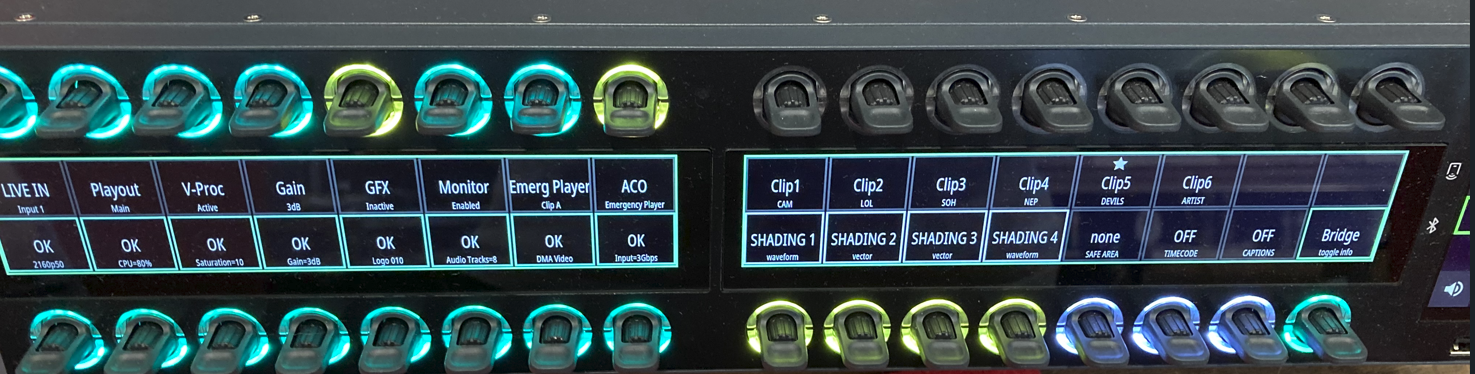

This picture features a Riedel SmartPanel. The buttons on the left and top right are used to control DataMiner, while the buttons on the bottom right are designated for controlling a VB440 unit from BridgeTech. All of these controls are conveniently integrated into a single panel.

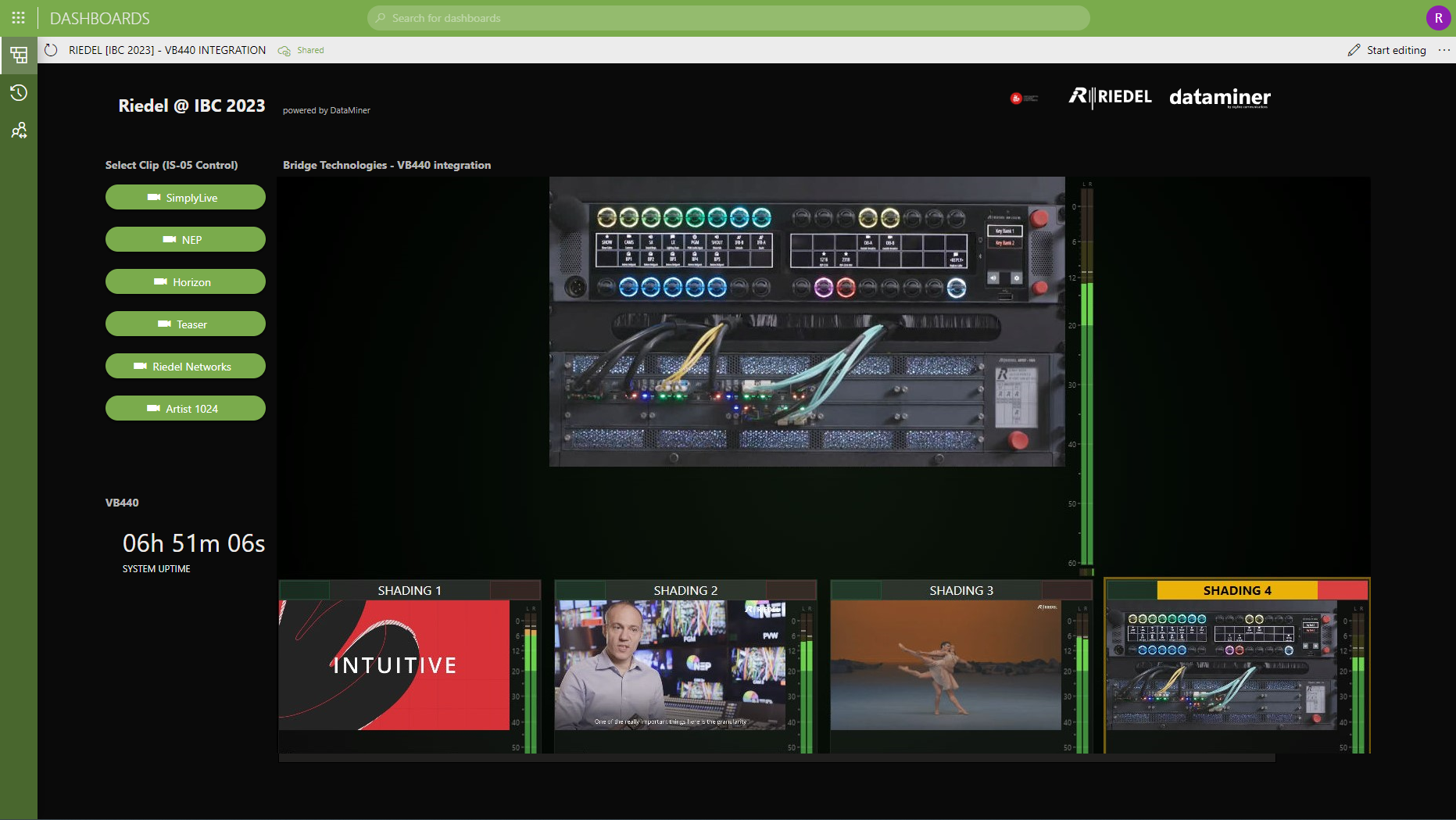

Displayed here is the outcome of Riedel's control over a VB440 using the panel. The VB440 is equipped with a built-in multiviewer known as Bridge Widglets, which is integrated into a DataMiner dashboard once more. What a remarkable collaborative effort between Skyline, BridgeTech, and Riedel!
