Bridge Technologies – Tech Partner Integrations (VB440 Widglet controls)

Thomas Gunkel

In this use case, we demonstrate how the DataMiner Low-Code Apps module is used to integrate with our Tech Partner BridgeTech.

• VB440 appliance & dynamic Widglet control

With the most recent improvements to our DataMiner Low-Code Apps, we can now dynamically control the VB440 Widglets and embed them into any of your DataMiner apps. Be sure to check out this use case to learn more about the VB440 app.

USE CASE DETAILS

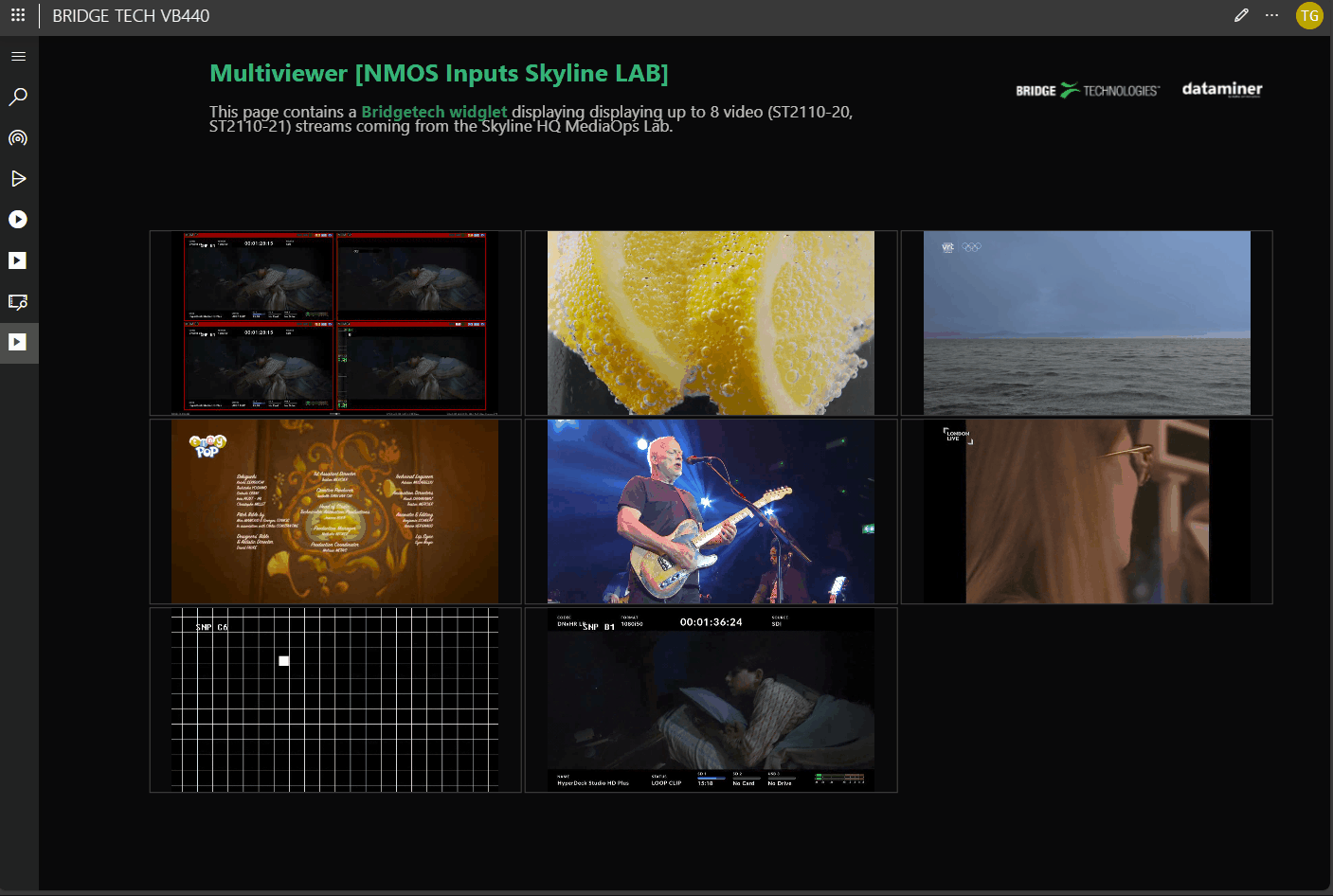

Widglets can be embedded as shown in this multiviewer example, which displays all configured ST2110 inputs of a VB440. You can access this multiviewer from anywhere, even over the public internet.

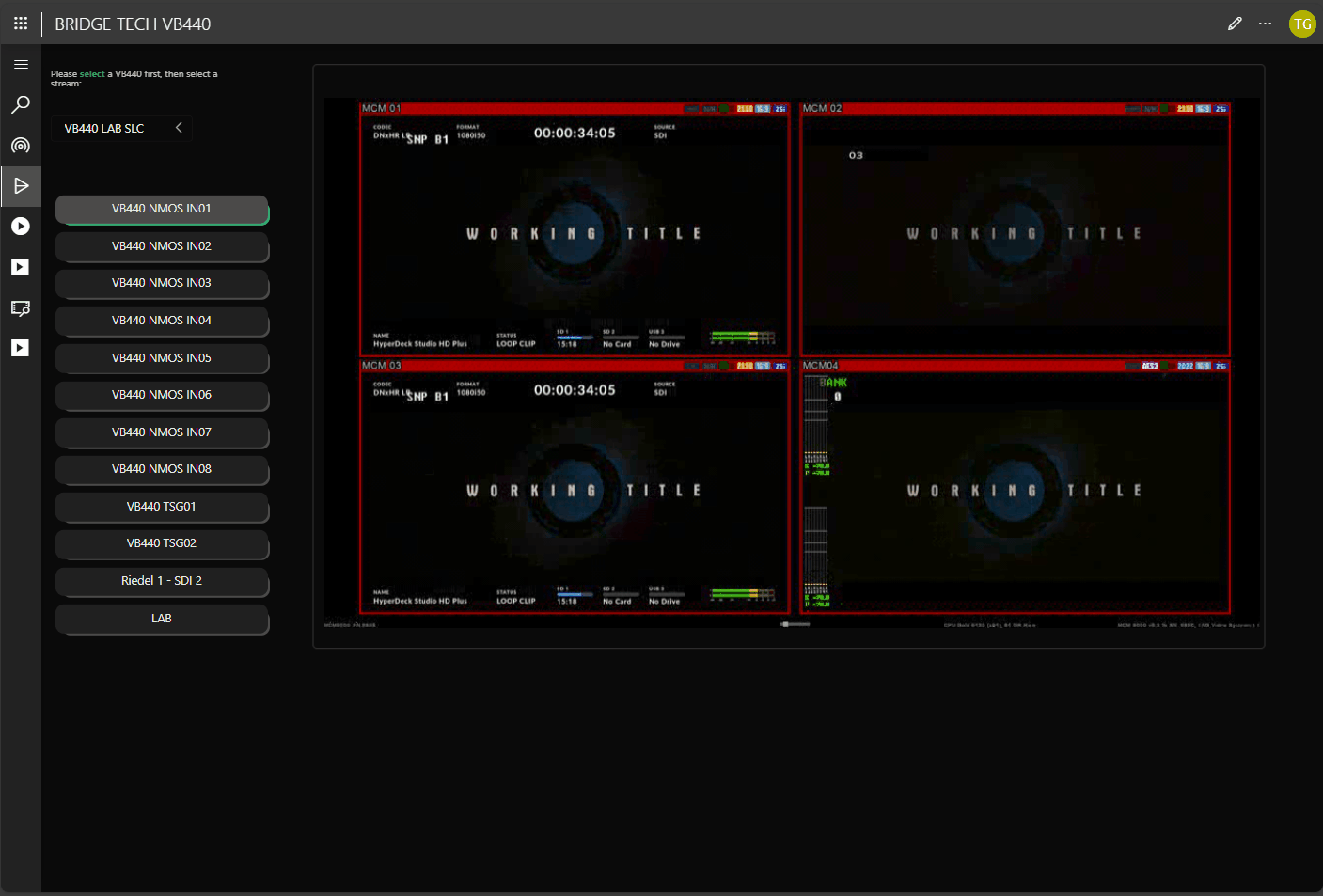

Alternatively, you can add controls to your low-code app to decode any of the VB440 inputs.

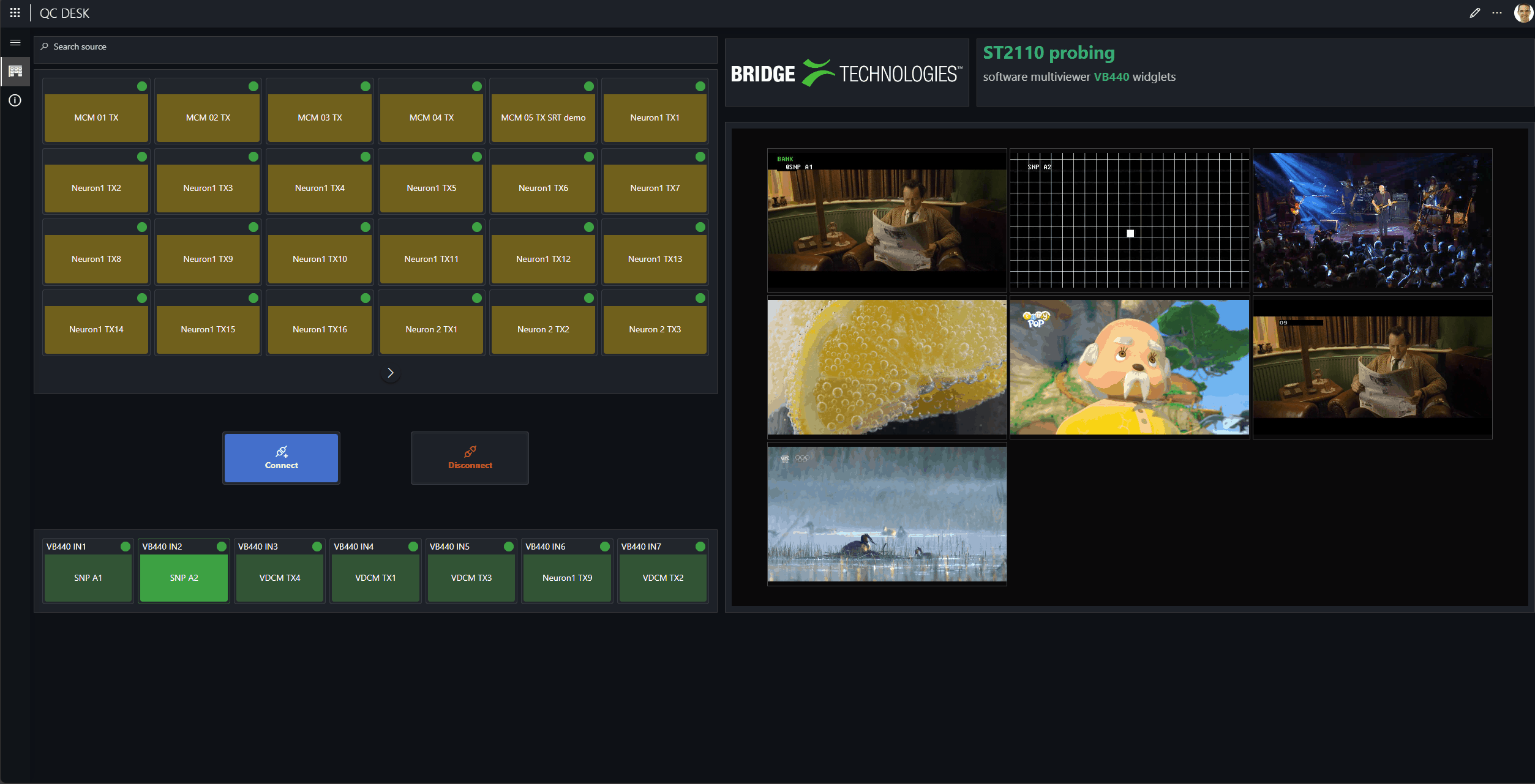

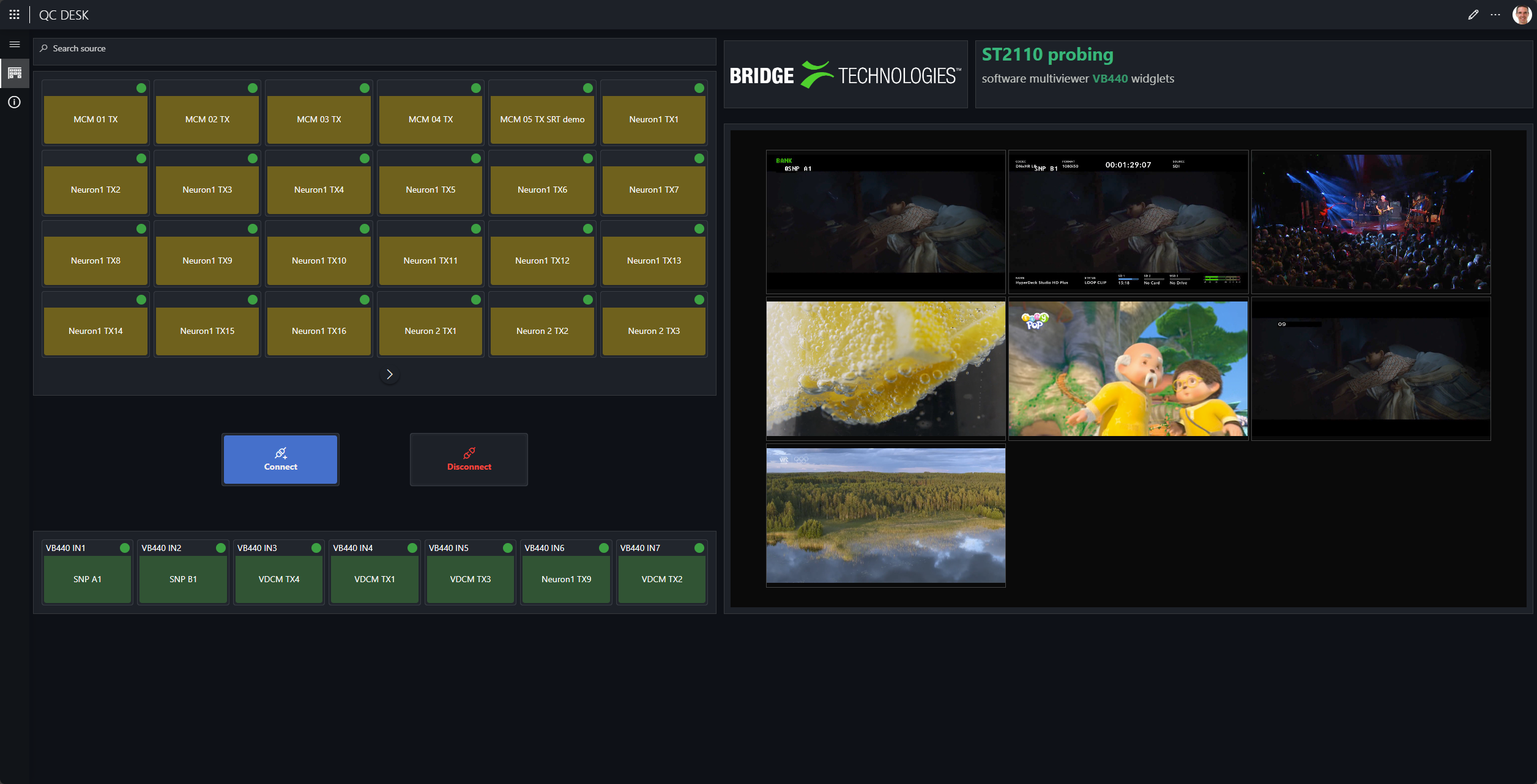

Here we have customized our MediaOps Control Surface app and added the VB440 Widglet.

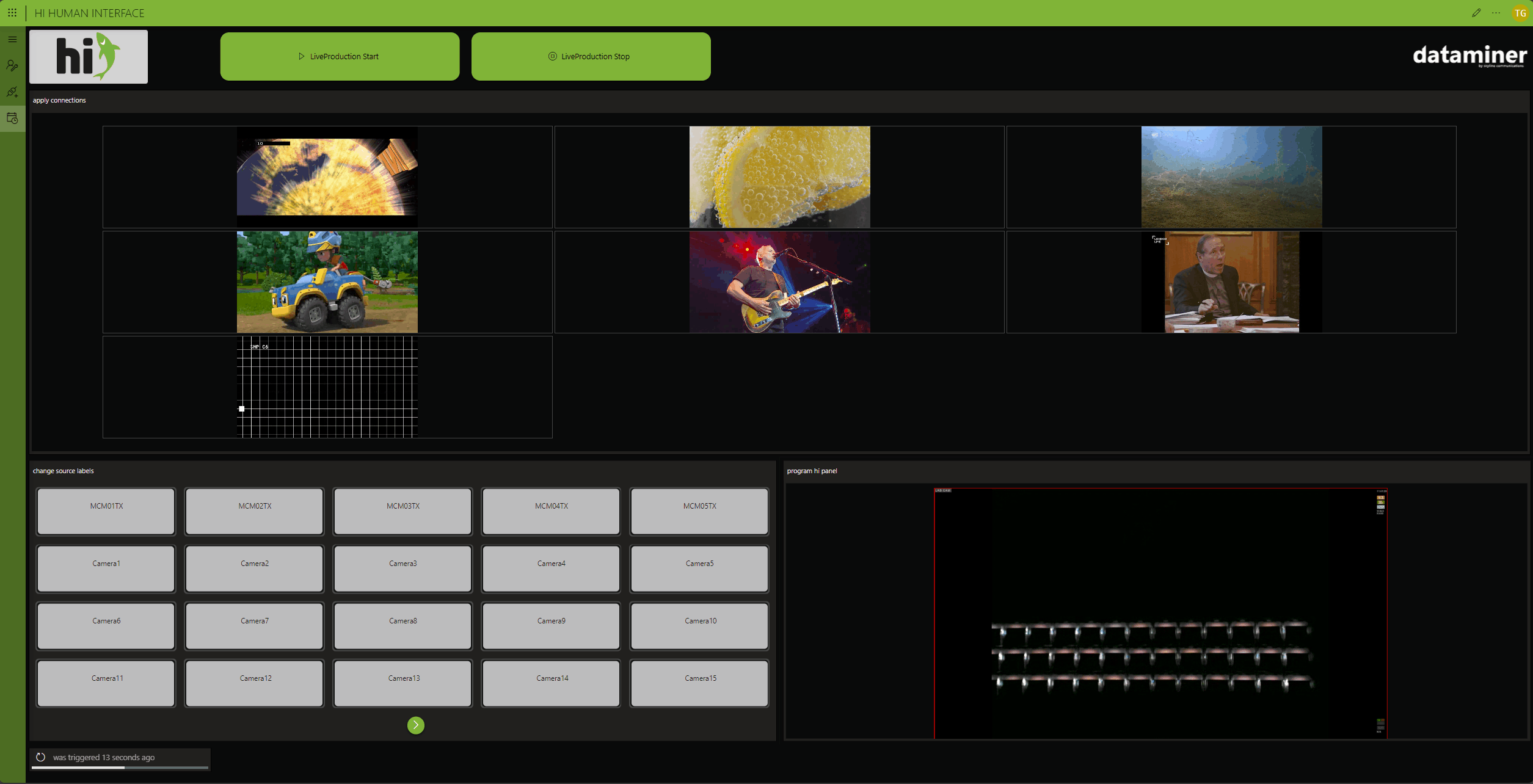

This example shows how DataMiner interfaces with a third-party broadcast controller (hi human interface) for ST2110 signal switching. The Widglet has been embedded as a multiviewer with dynamic controls to select a single ST2110 stream.
