integration Use Case
Arista Manager Connector
Arista
Have a look at all details on our Arista Manager connector. This connector uses a combination of multiple interfaces: SNMP, Arista eAPI & Syslog
USE CASE DETAILS
General Overview - IP, Uptime, Firmware version, memory, ...

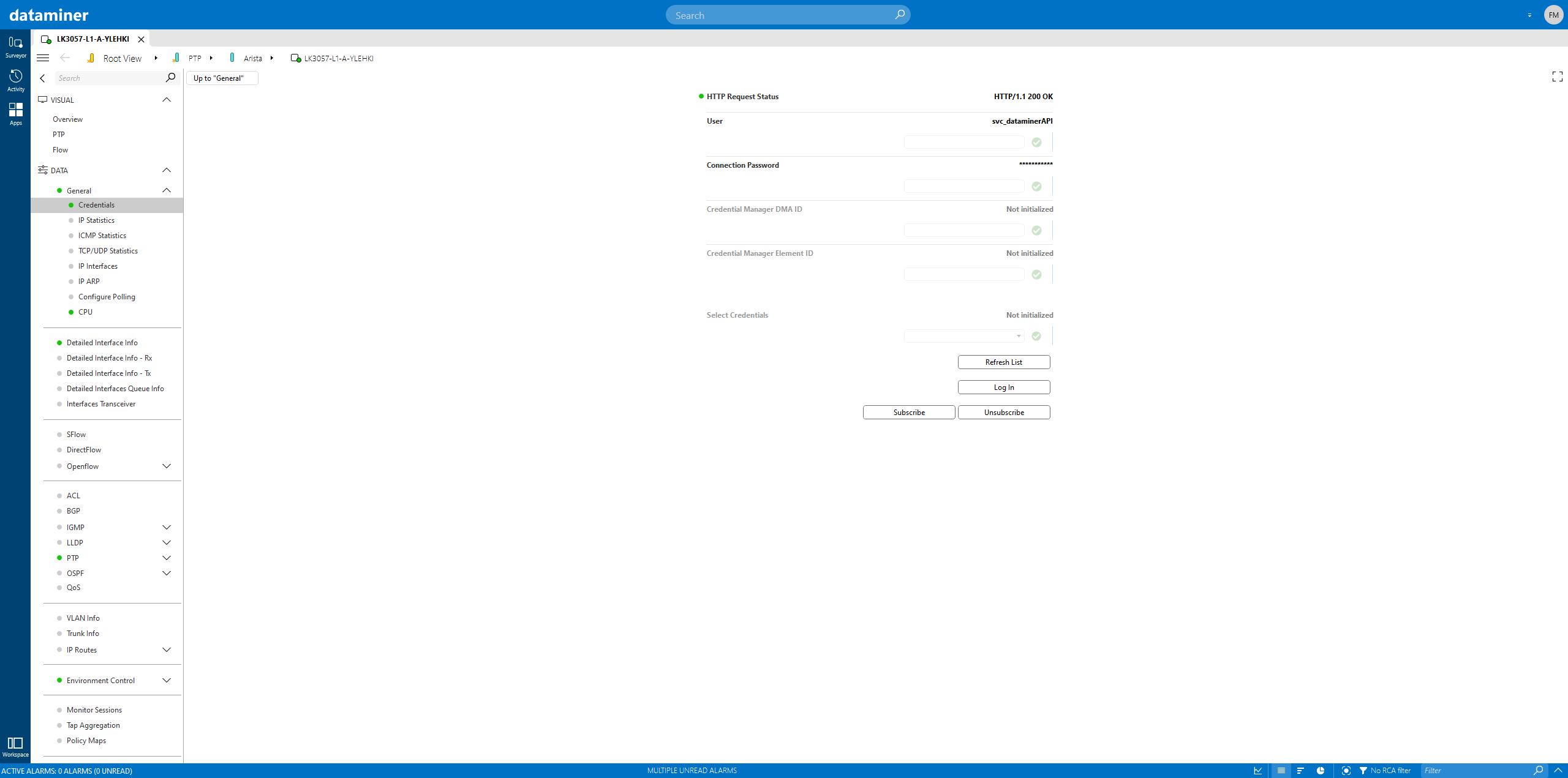

Credentials - establish your connection via Arista eAPI

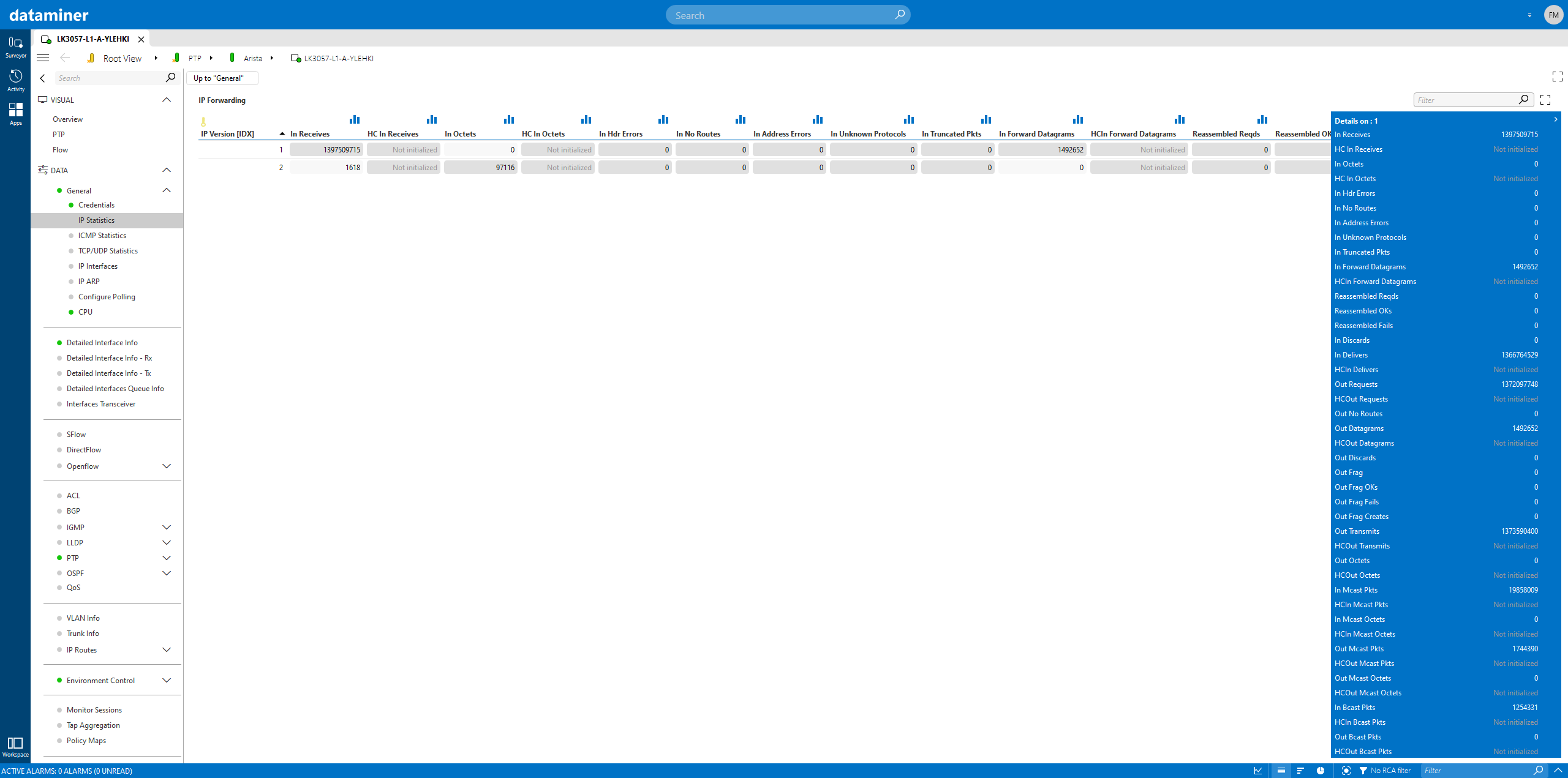

IP Statistics - all your IN and OUT packets

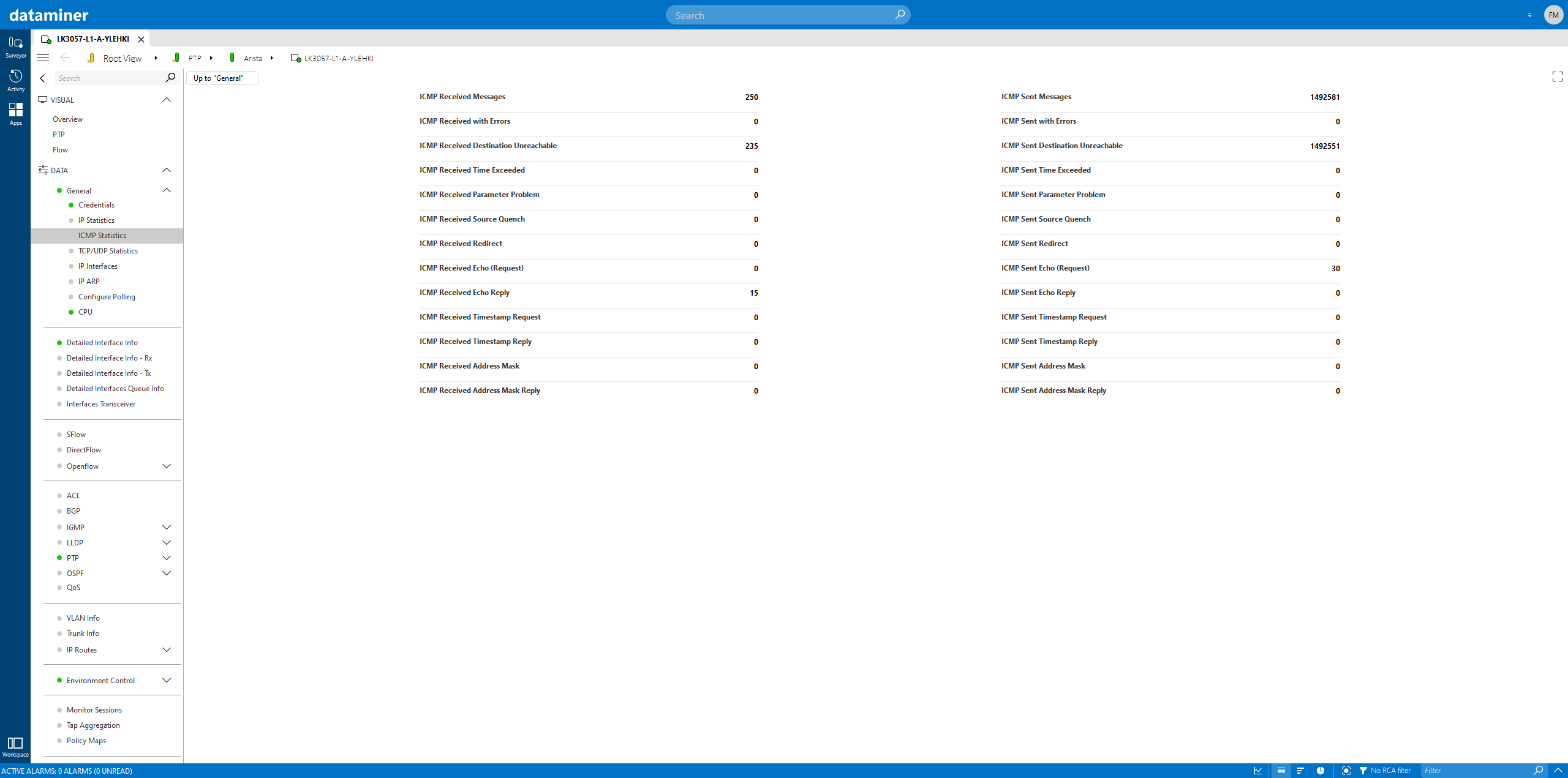

ICMP Statistics

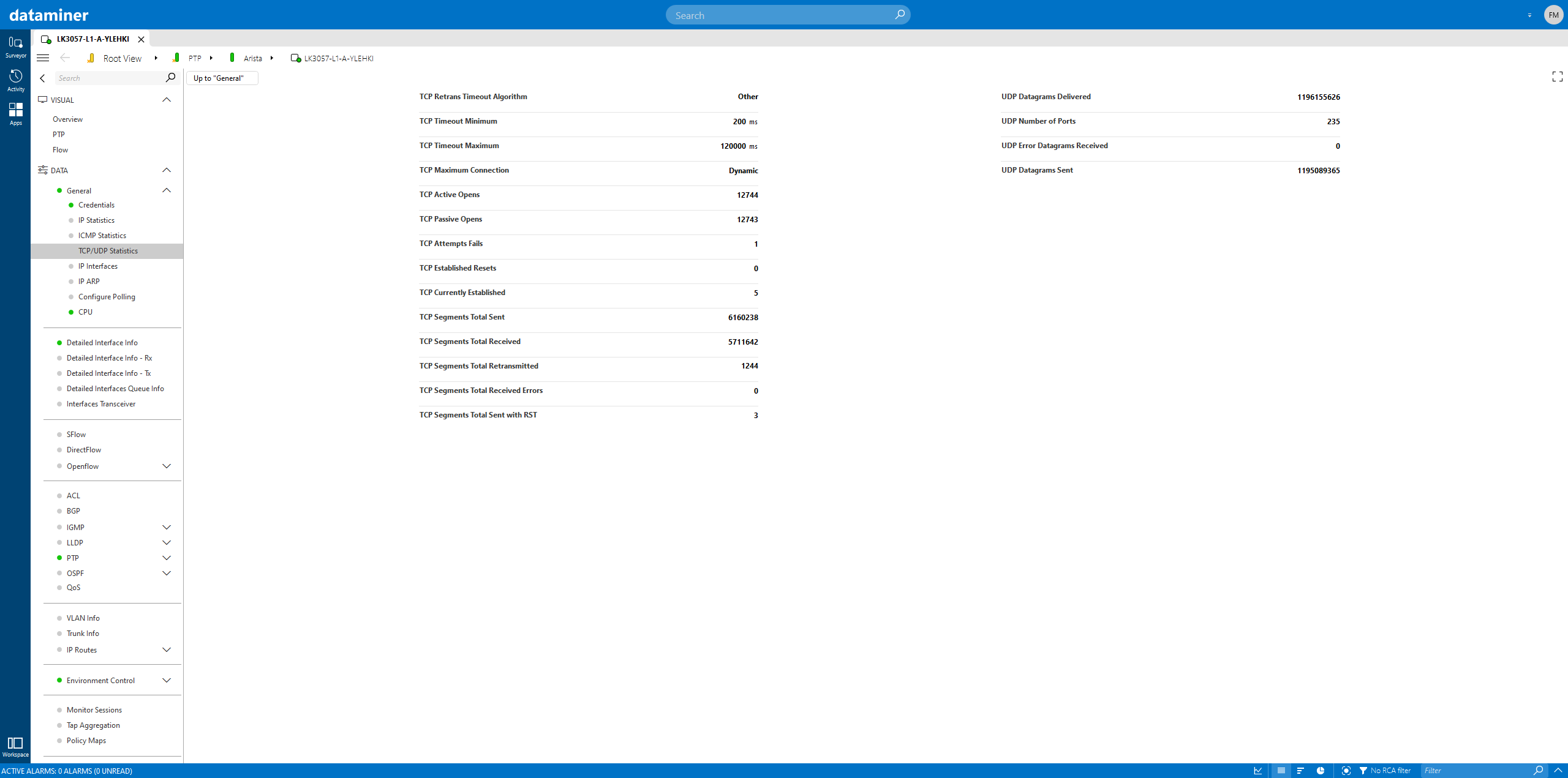

TCP/UDP Statistics

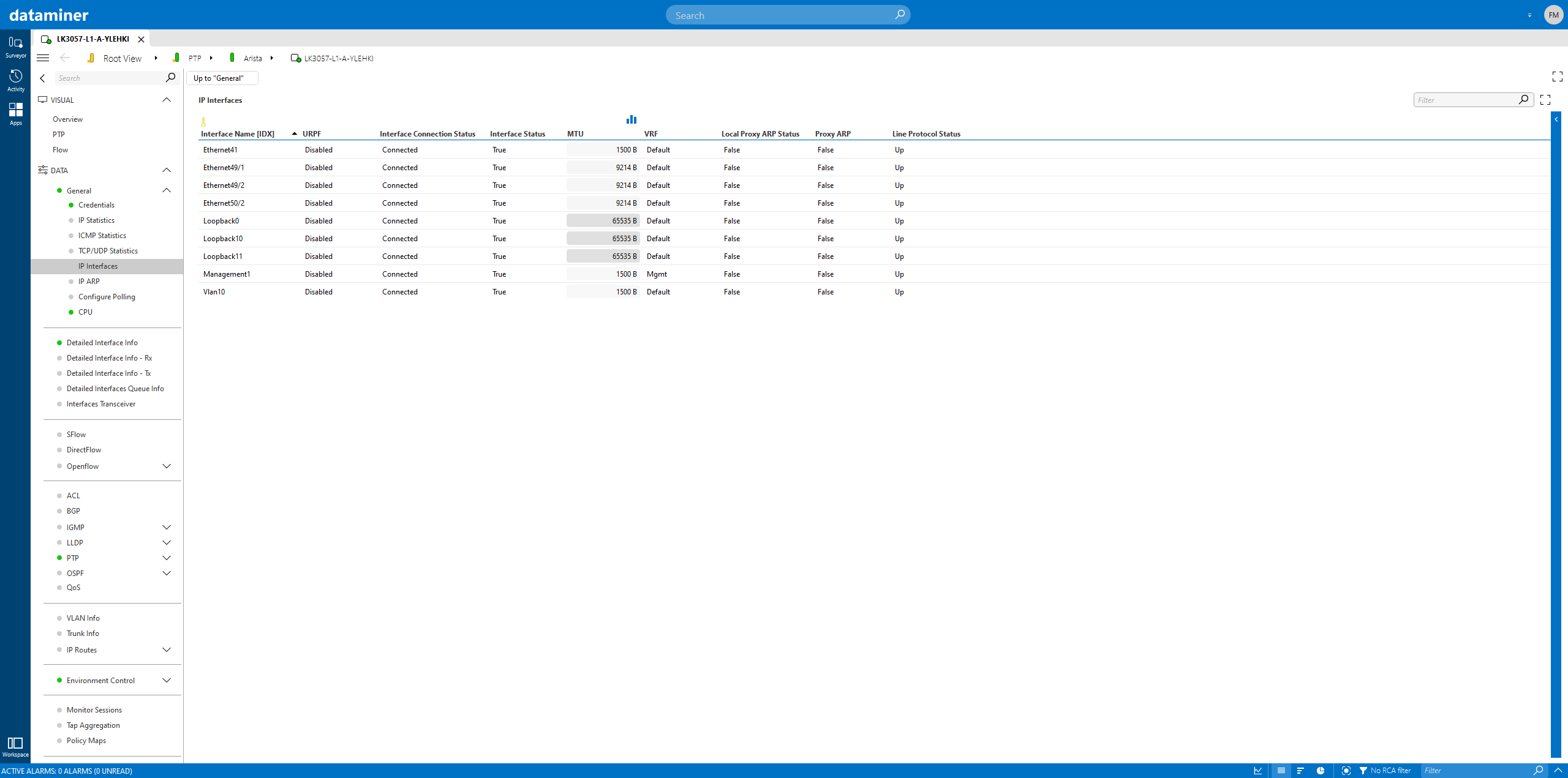

IP Interfaces - interface status, VRF, MTU, ARP, ...

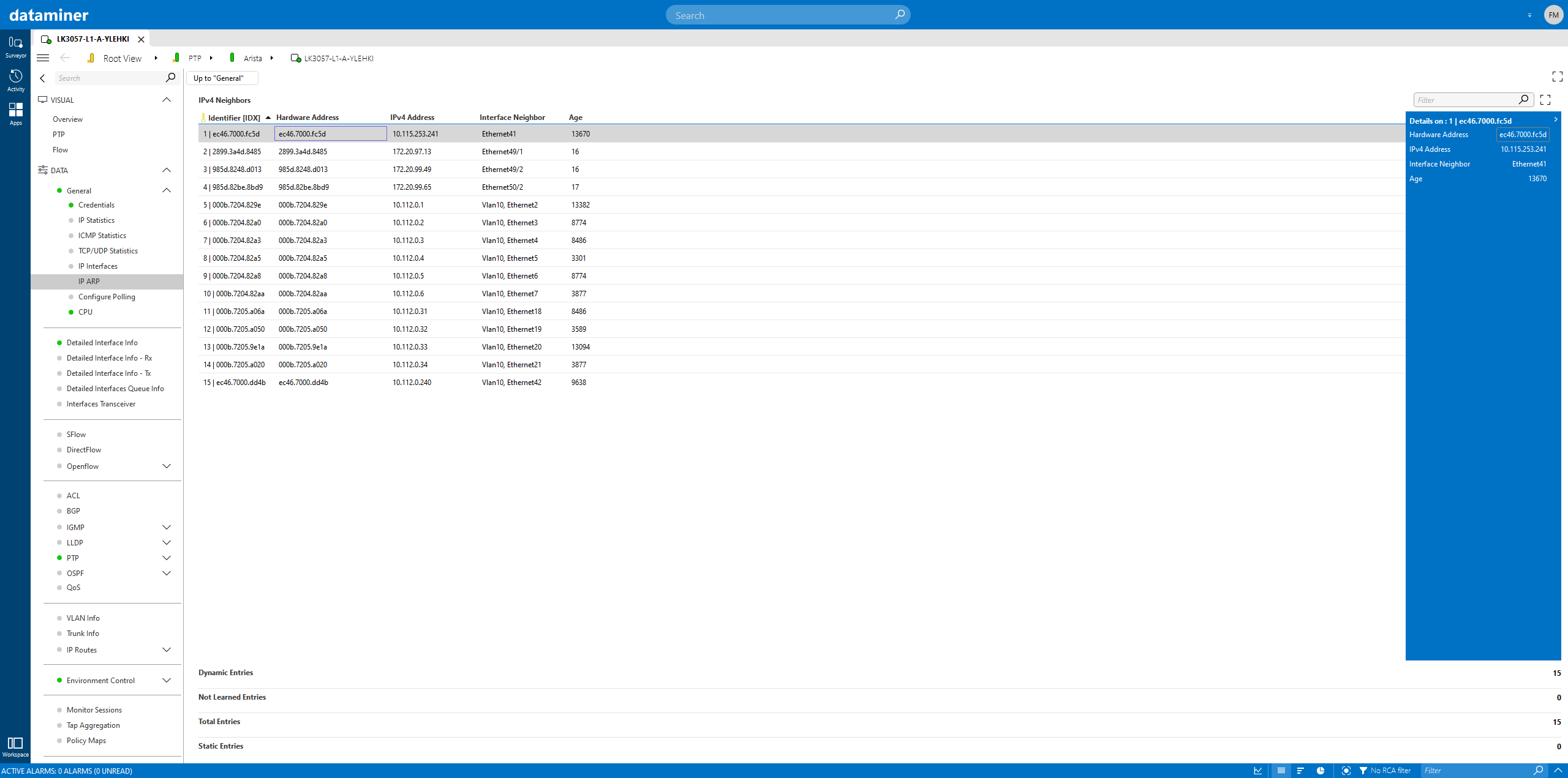

IP ARP - IP-address, MAC-address, interface neighbor, ...

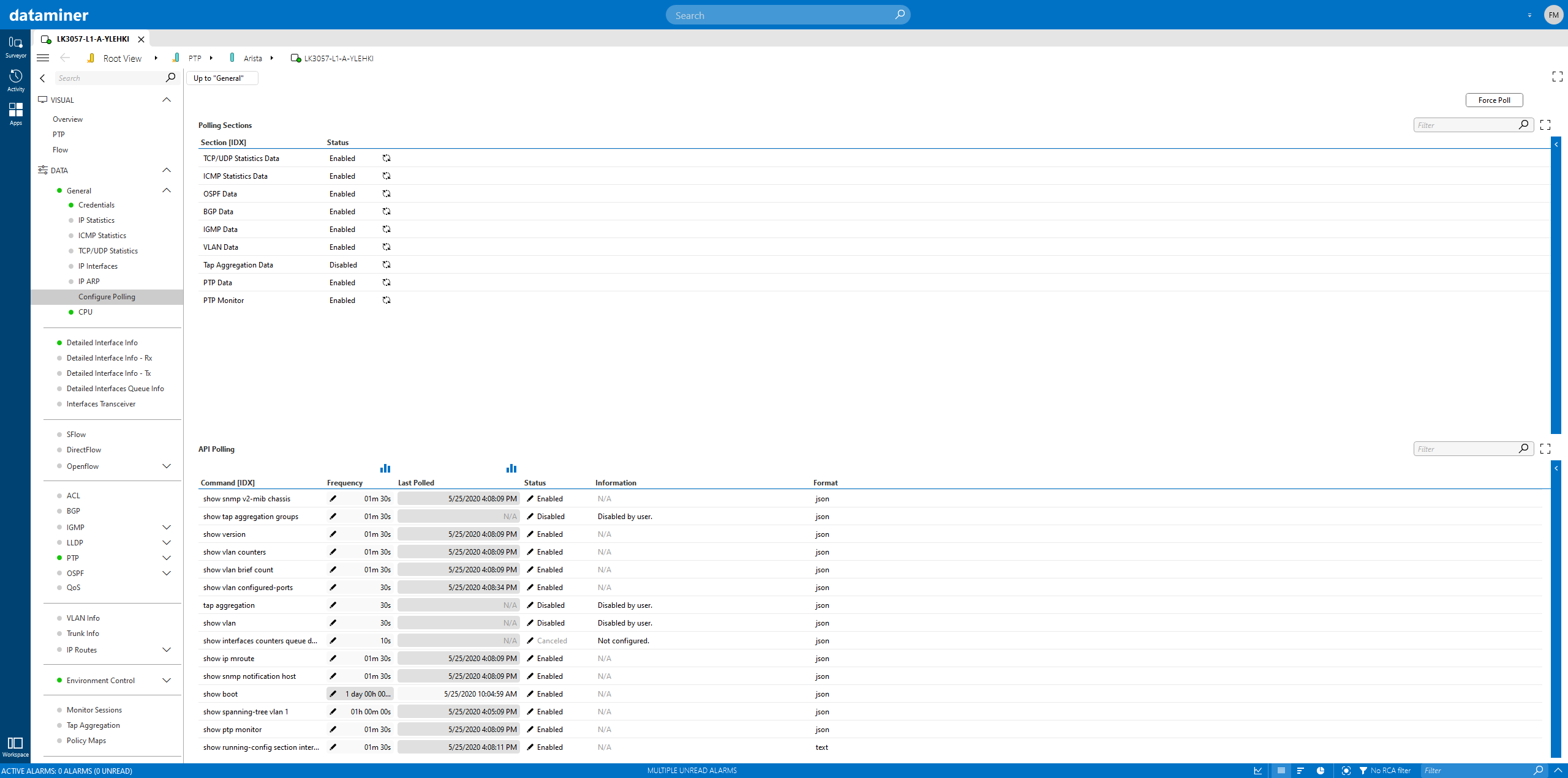

Configure Polling - this page allows you to specify in detail which data and how often to poll them

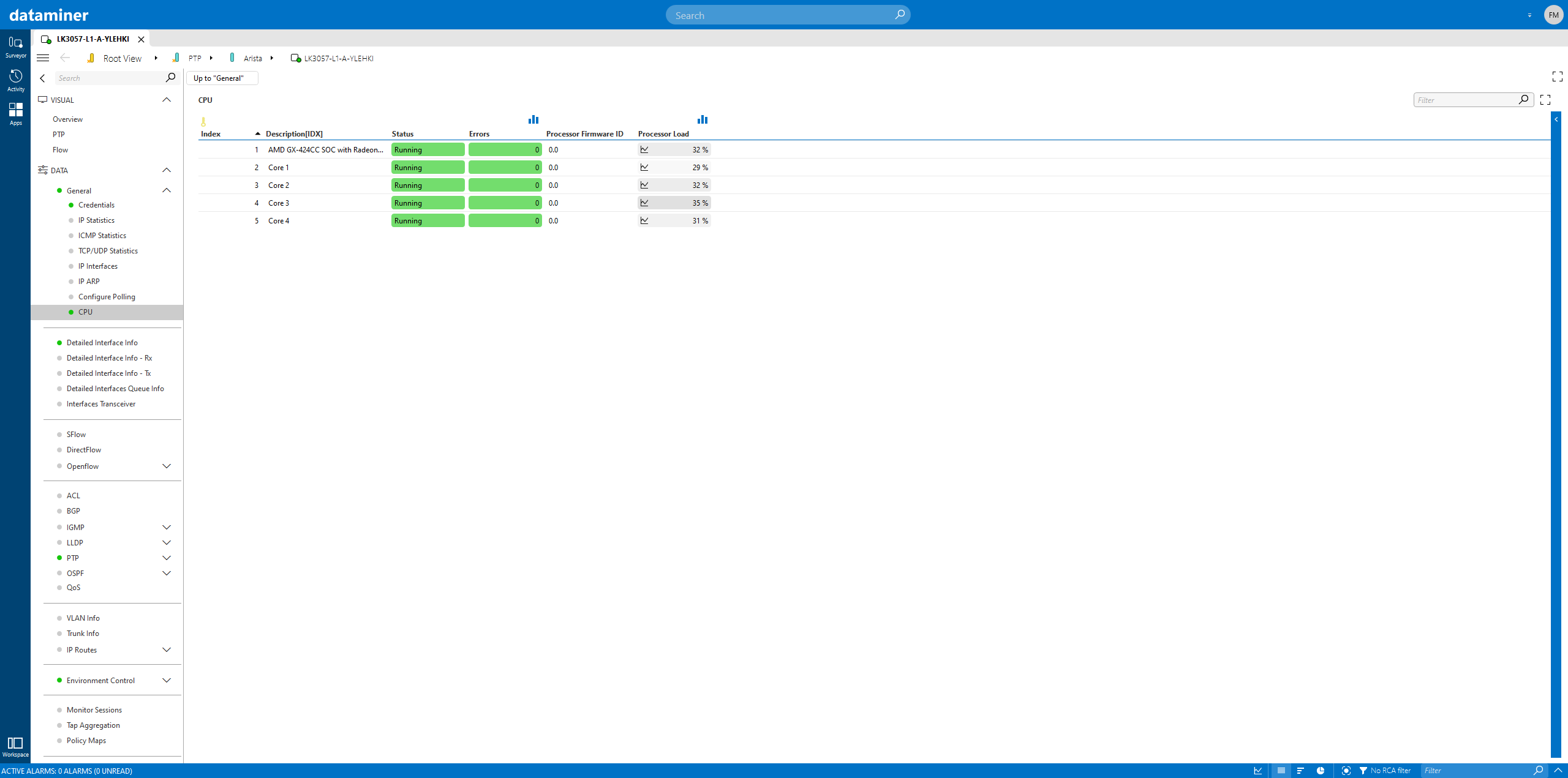

CPU - monitor your CPU processor load

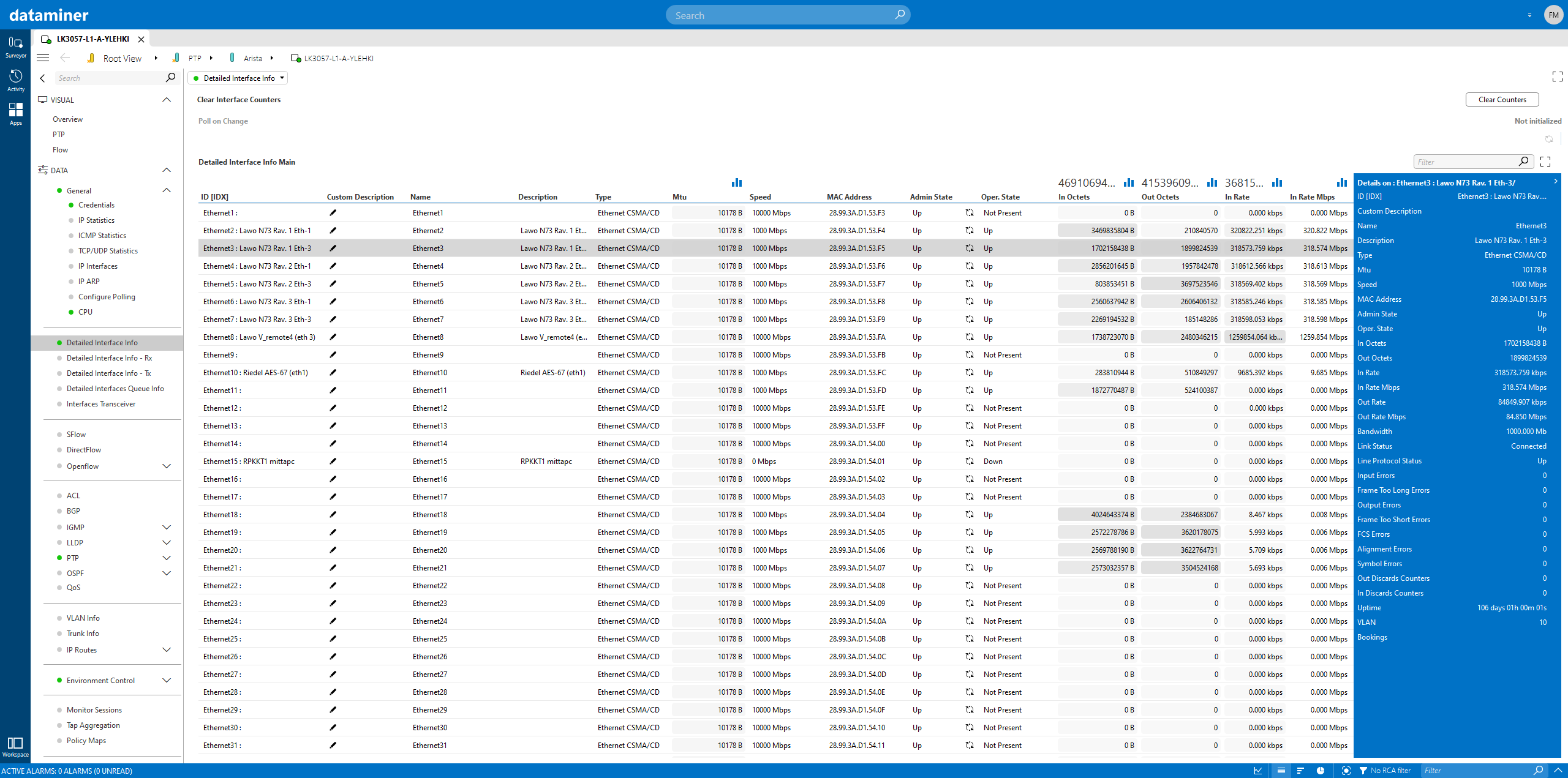

Detailed Interface Info - Name, speed, interface state, bitrate, errors and custom descriptions for each interface

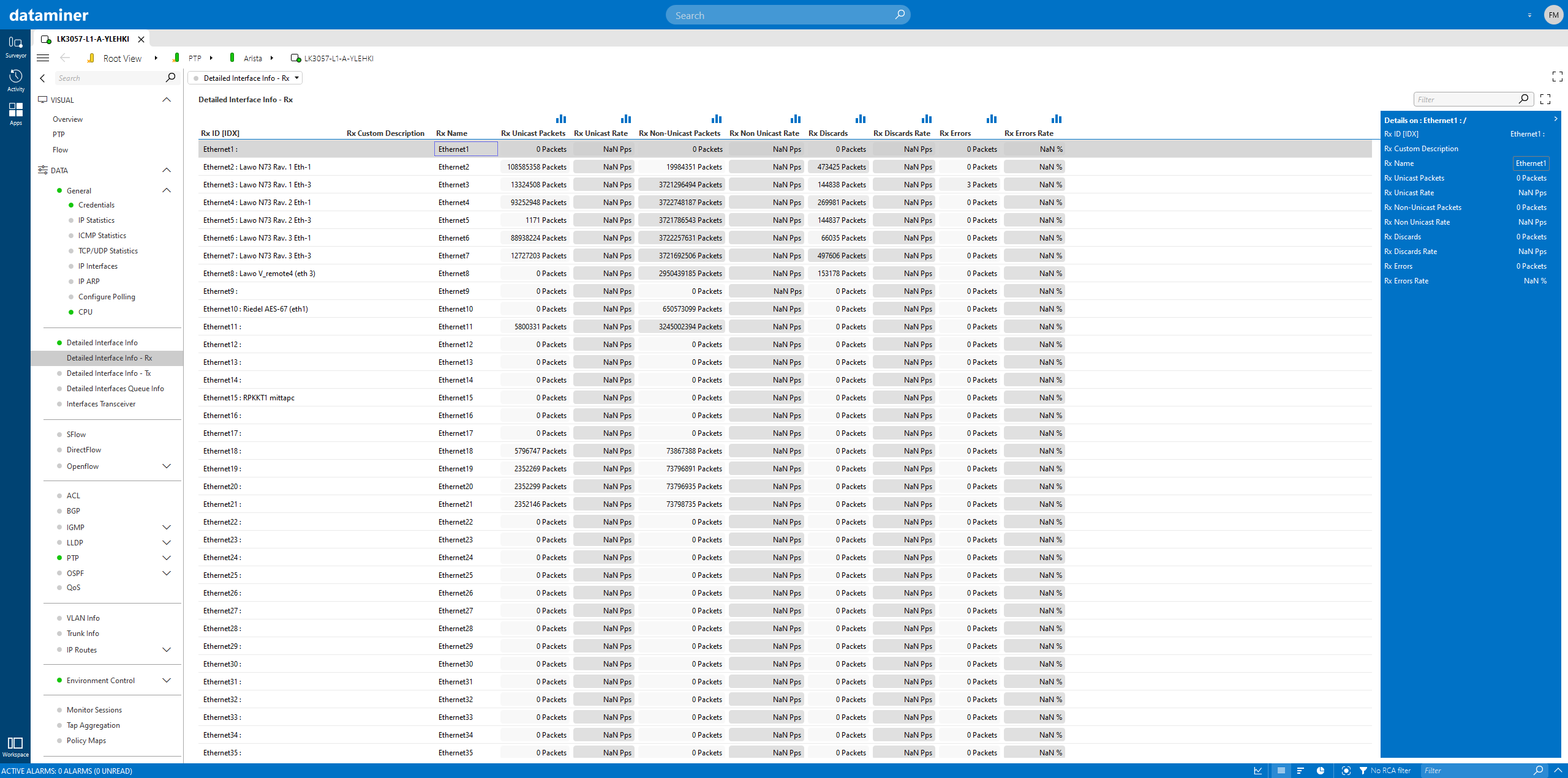

Detailed Interface Info RX - everything about your RX packets

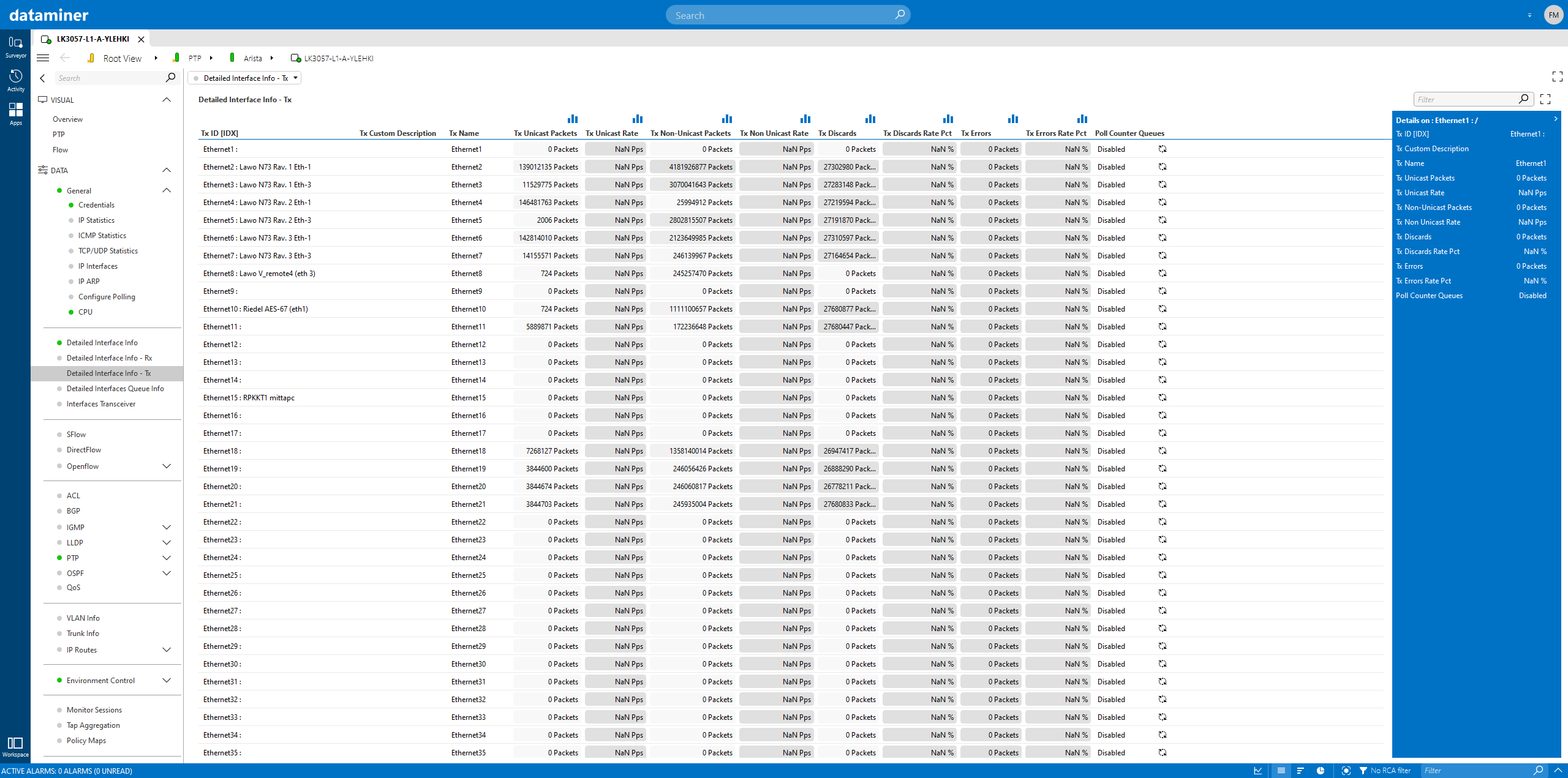

Detailed Interface Info TX - everything about your TX packets

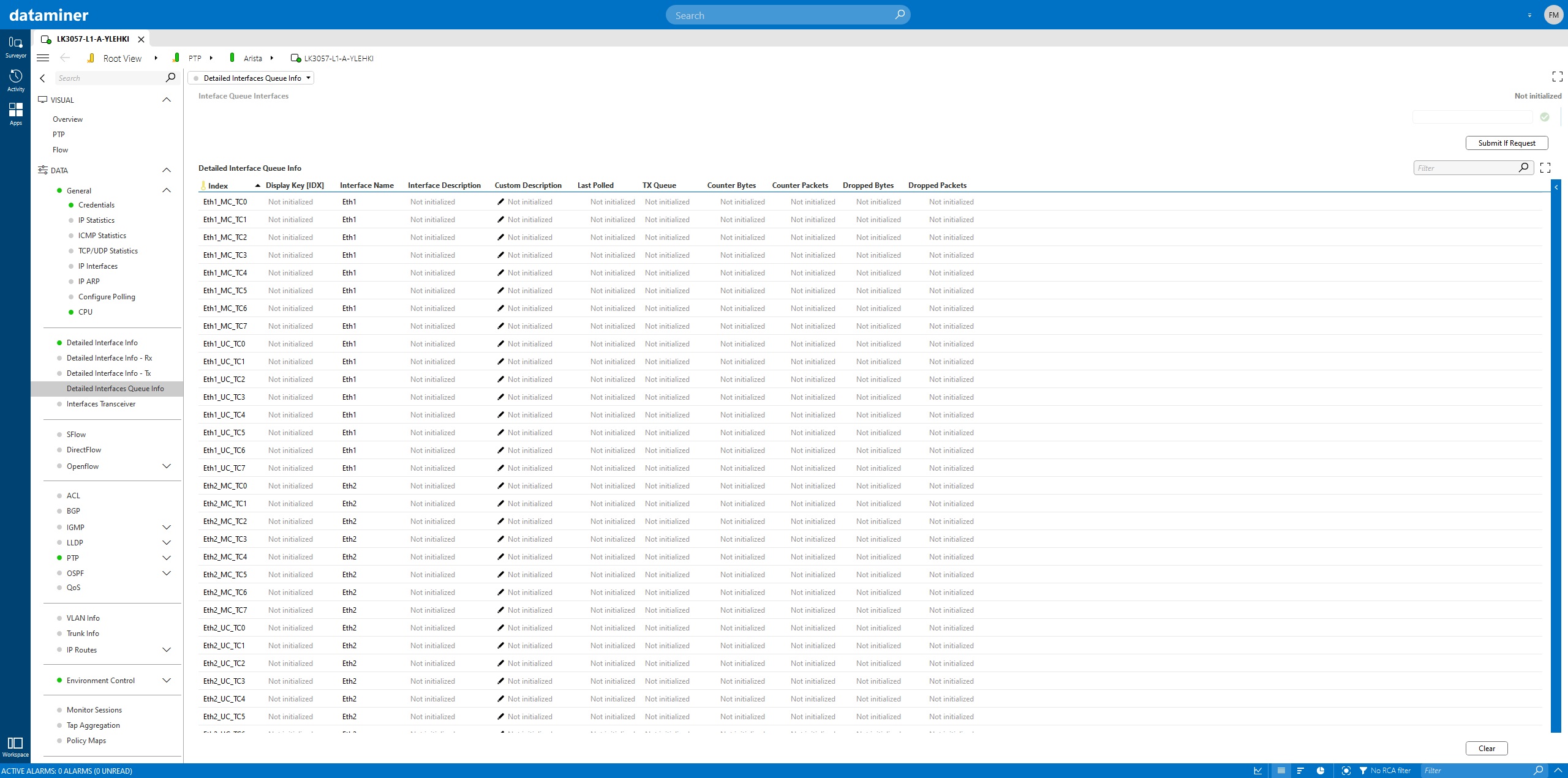

Detailed Interface Queue Info - check for dropped packets and TX queue

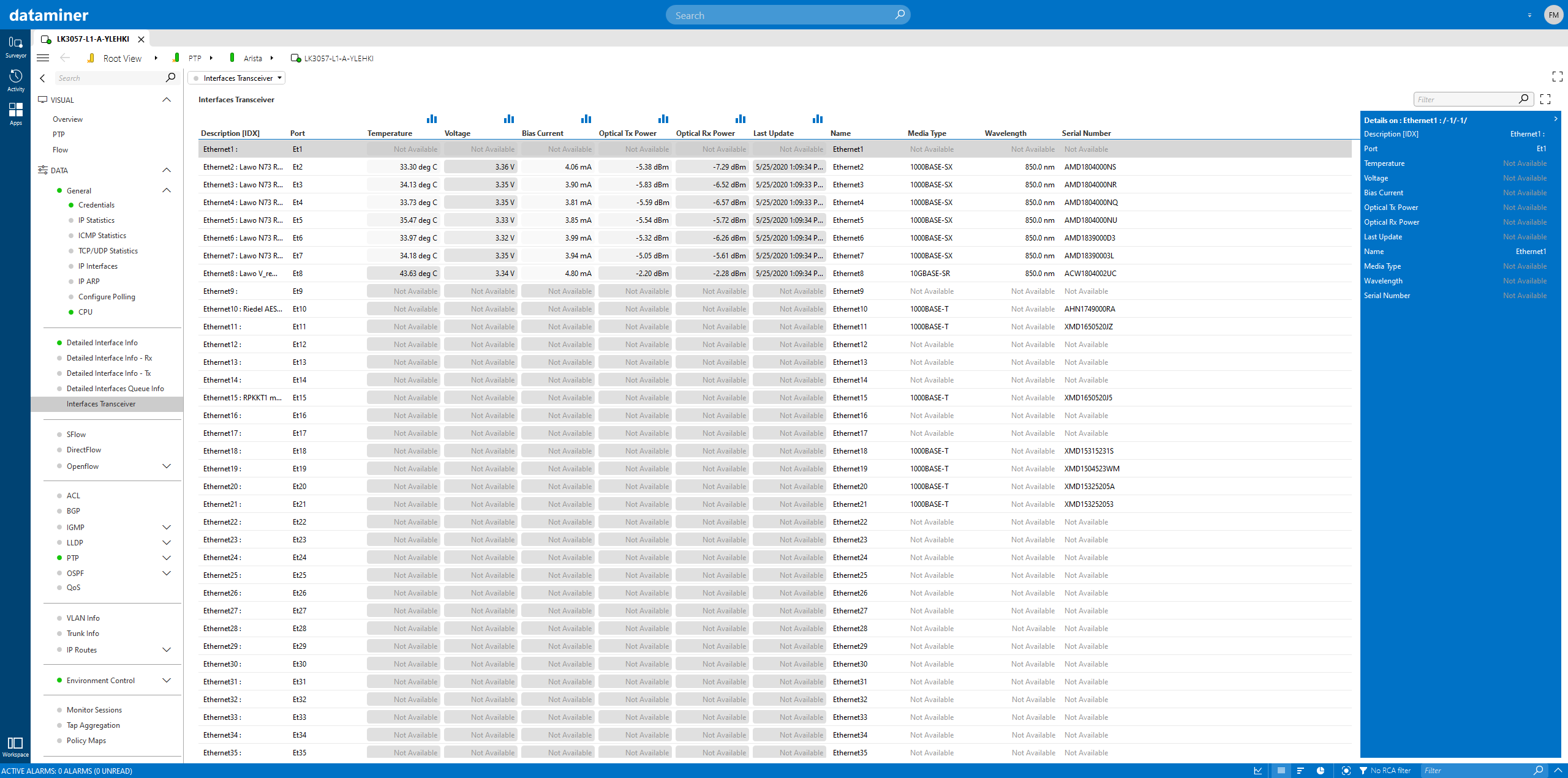

Interface Transceivers - get all the DOM (digital optical monitoring) metrics - Temperature, Voltage, Bias, TX Power, RX Power and monitor your SFP's performance over time

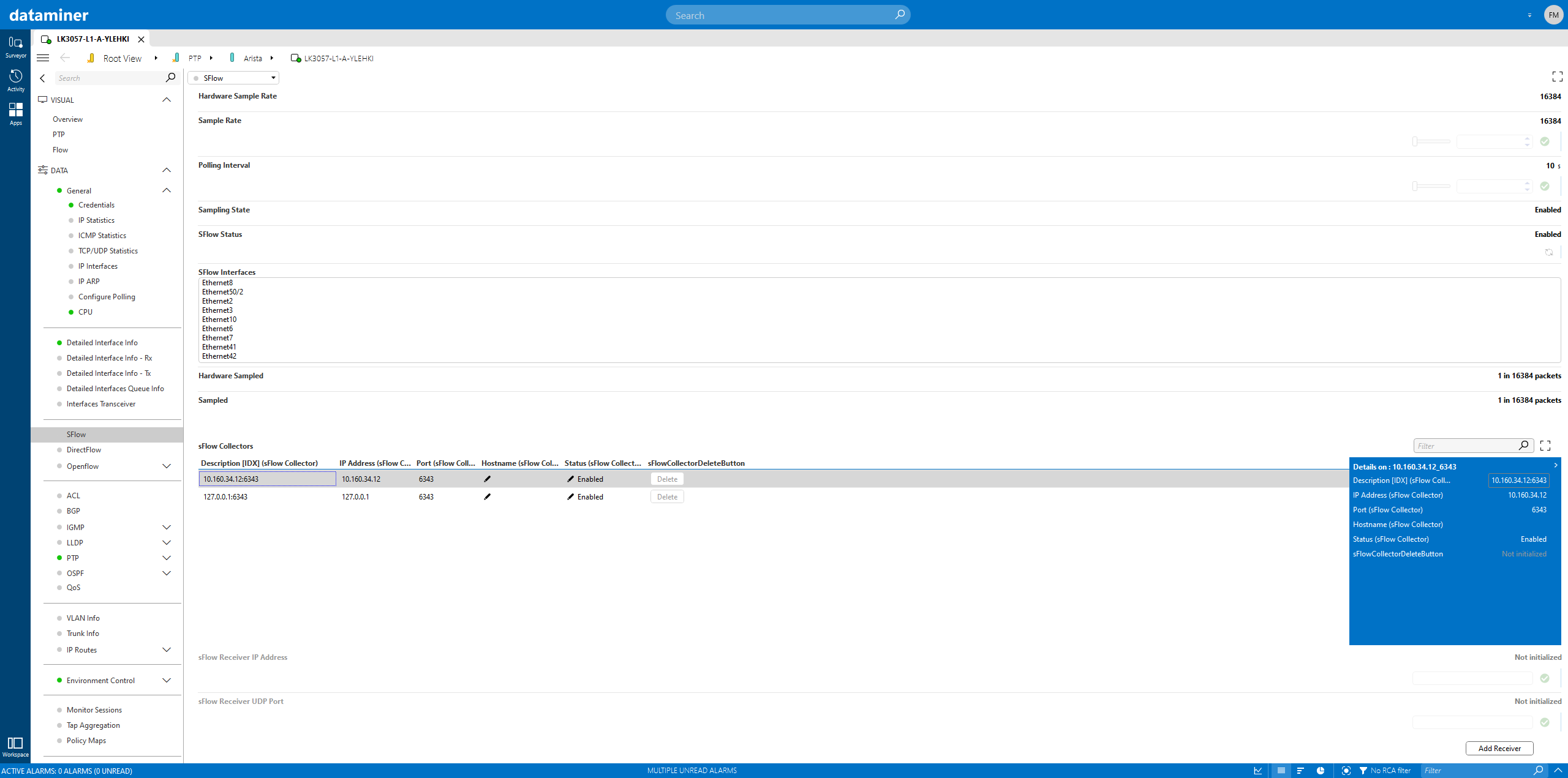

SFLOW - configure SFlow settings - Note: you will need a separate SFlow connector for DataMiner to act as SFlow Collector

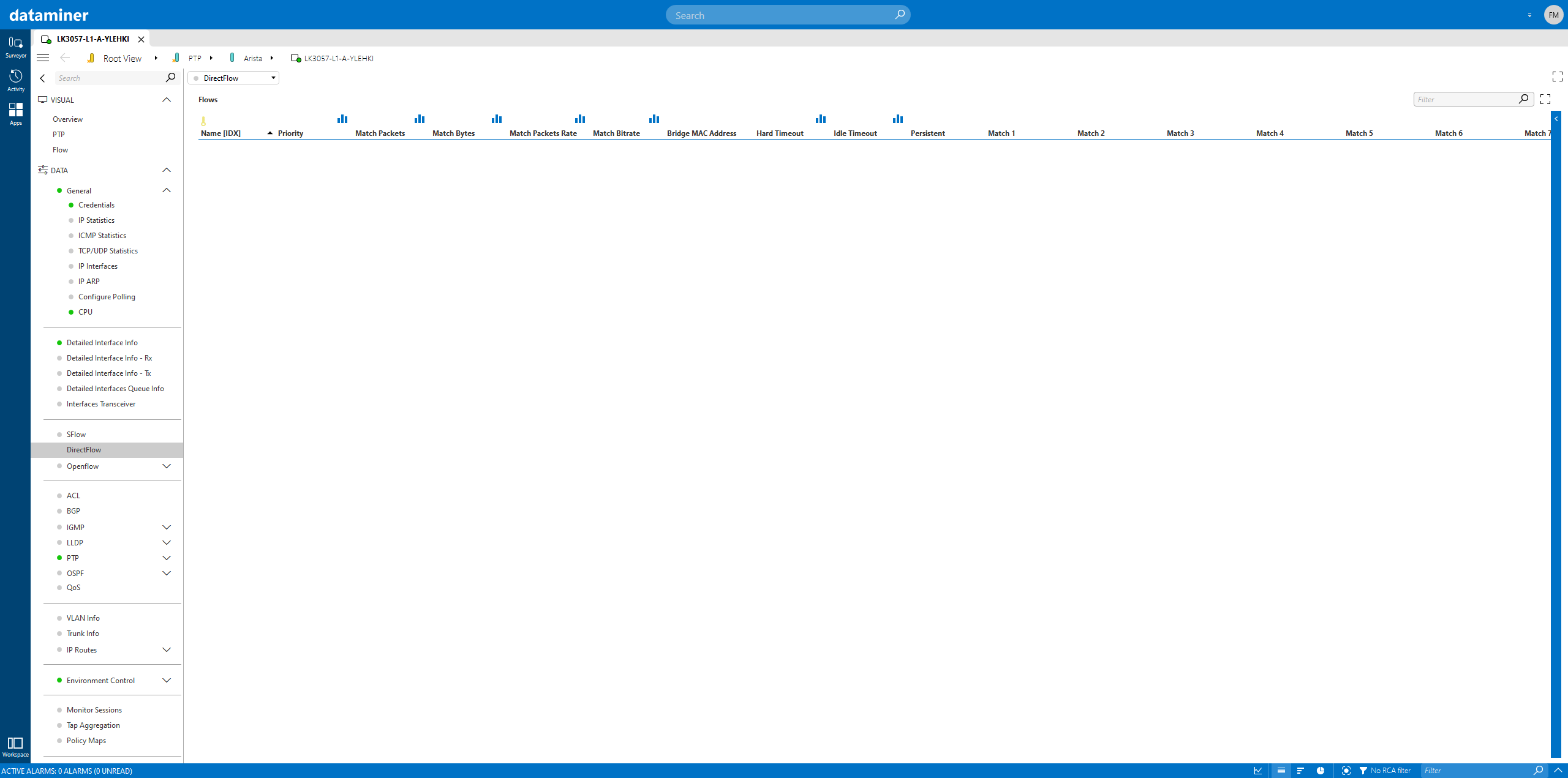

DirectFlow - monitor your DirectFlow packets

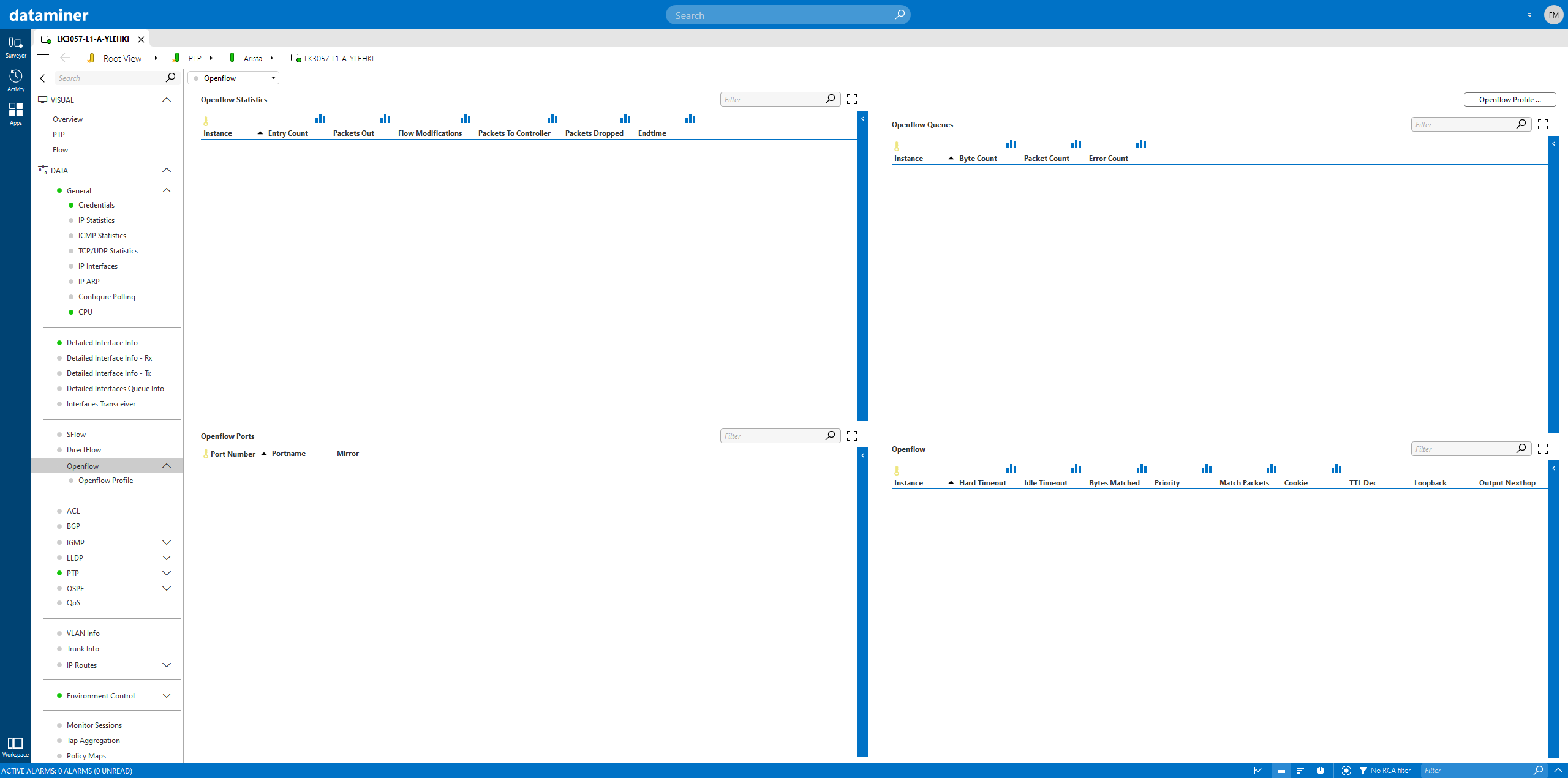

OpenFlow - Statistics, Queues, Ports, ...

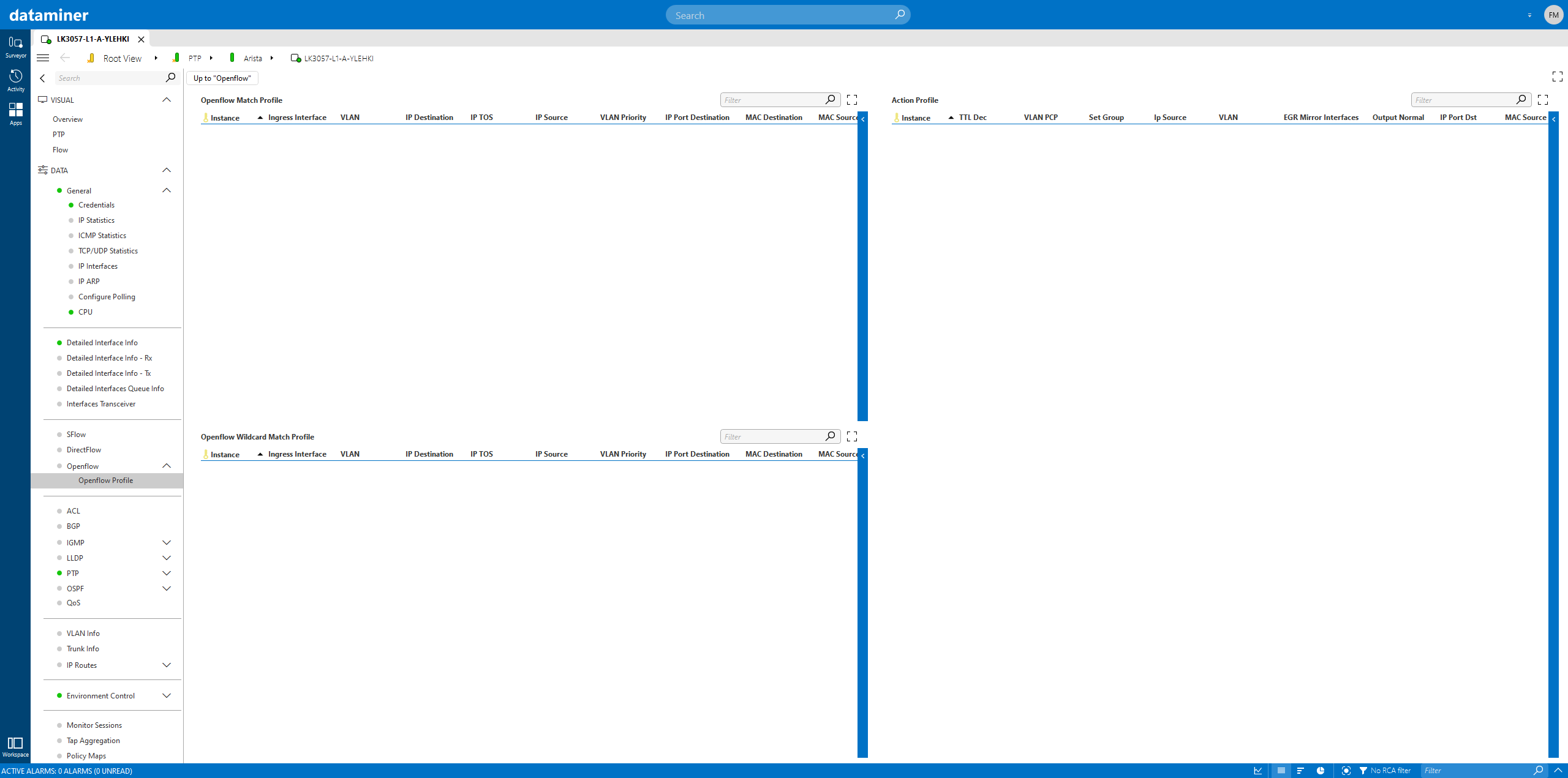

OpenFlow Profile

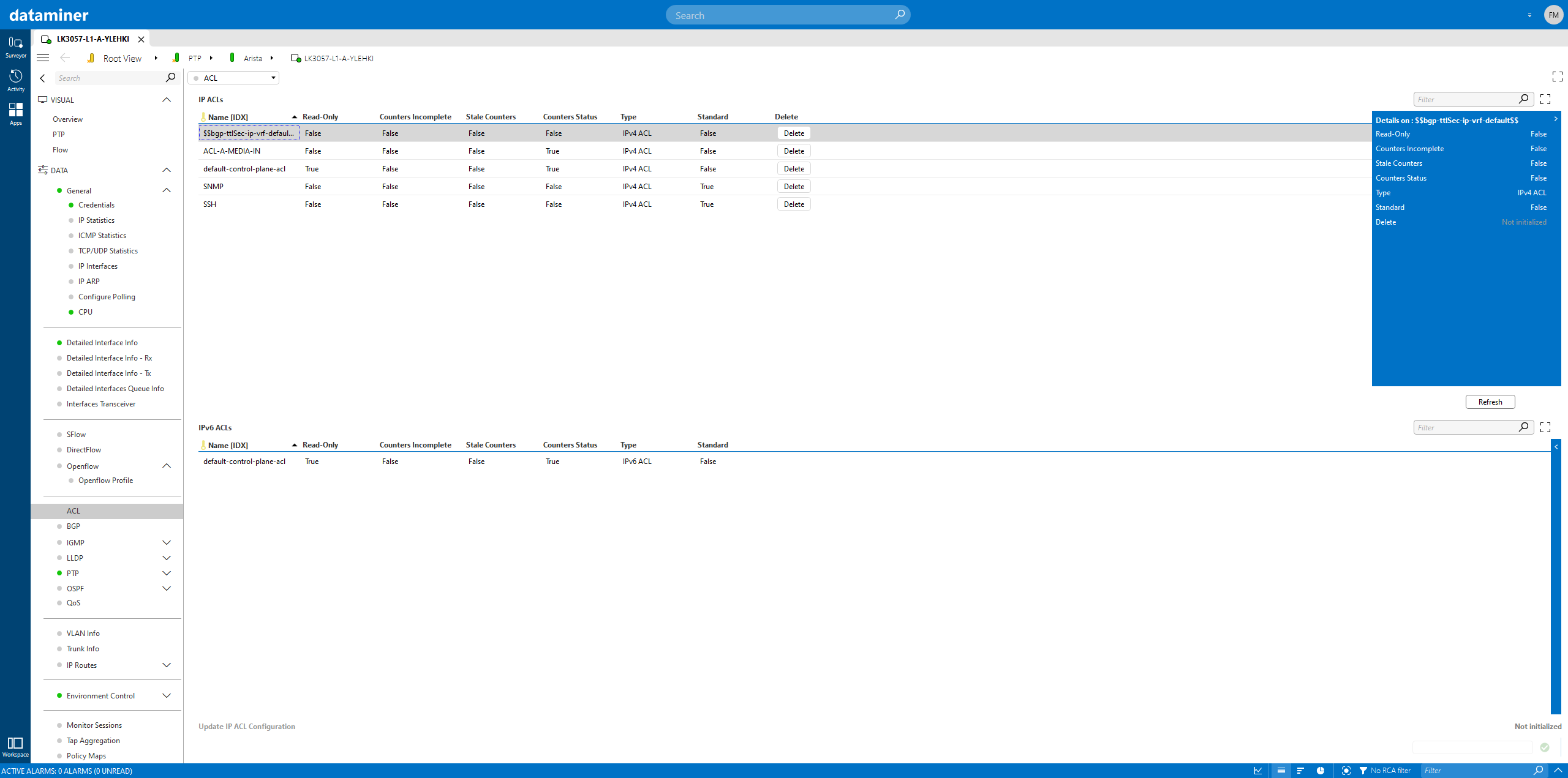

ACL - configure access control lists

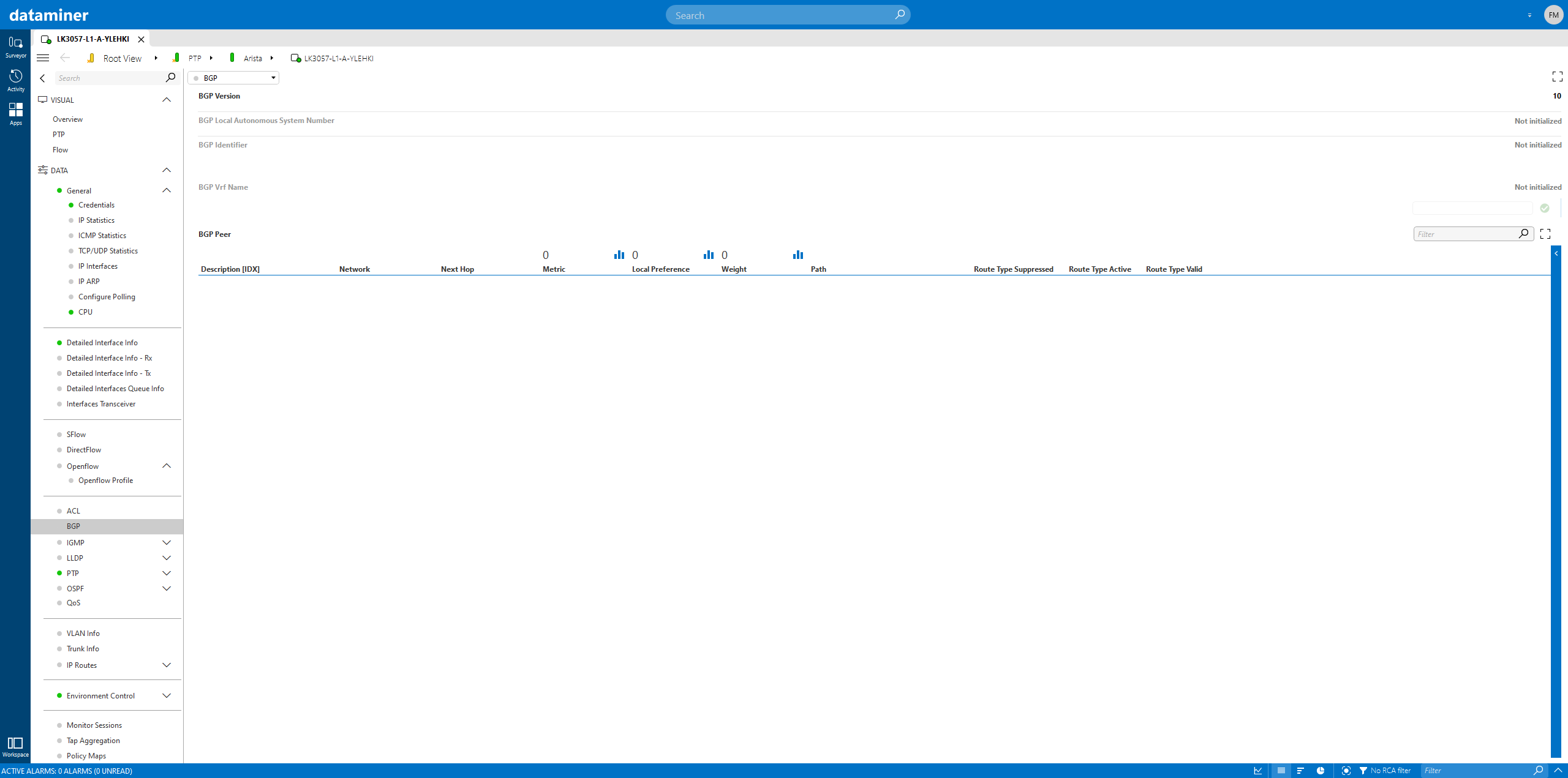

BGP - check your BGP neighbors

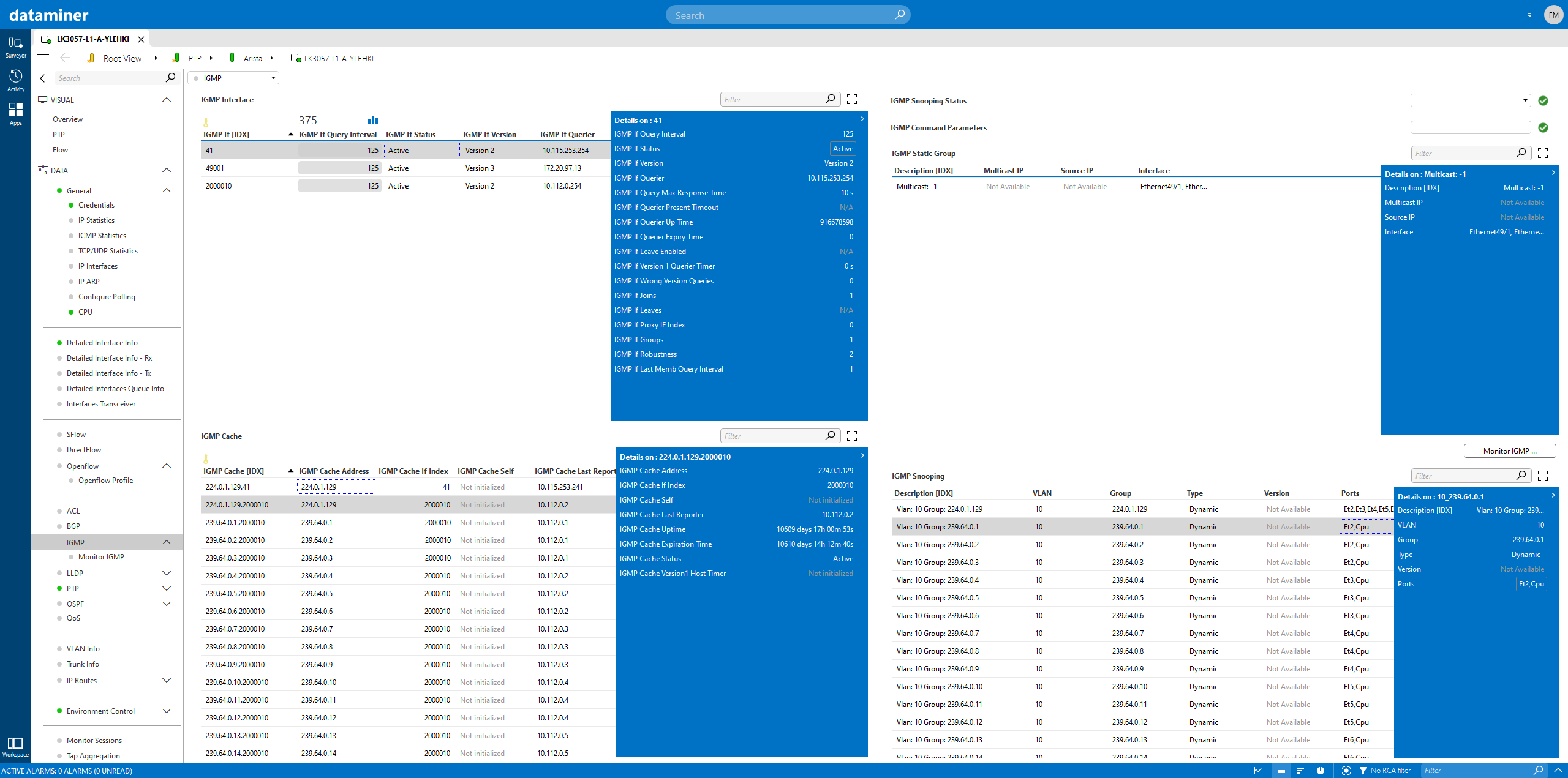

IGMP - monitor your IGMP multicast tables - snooping, cache, IGMP version - and check your which interfaces joined multicast streams

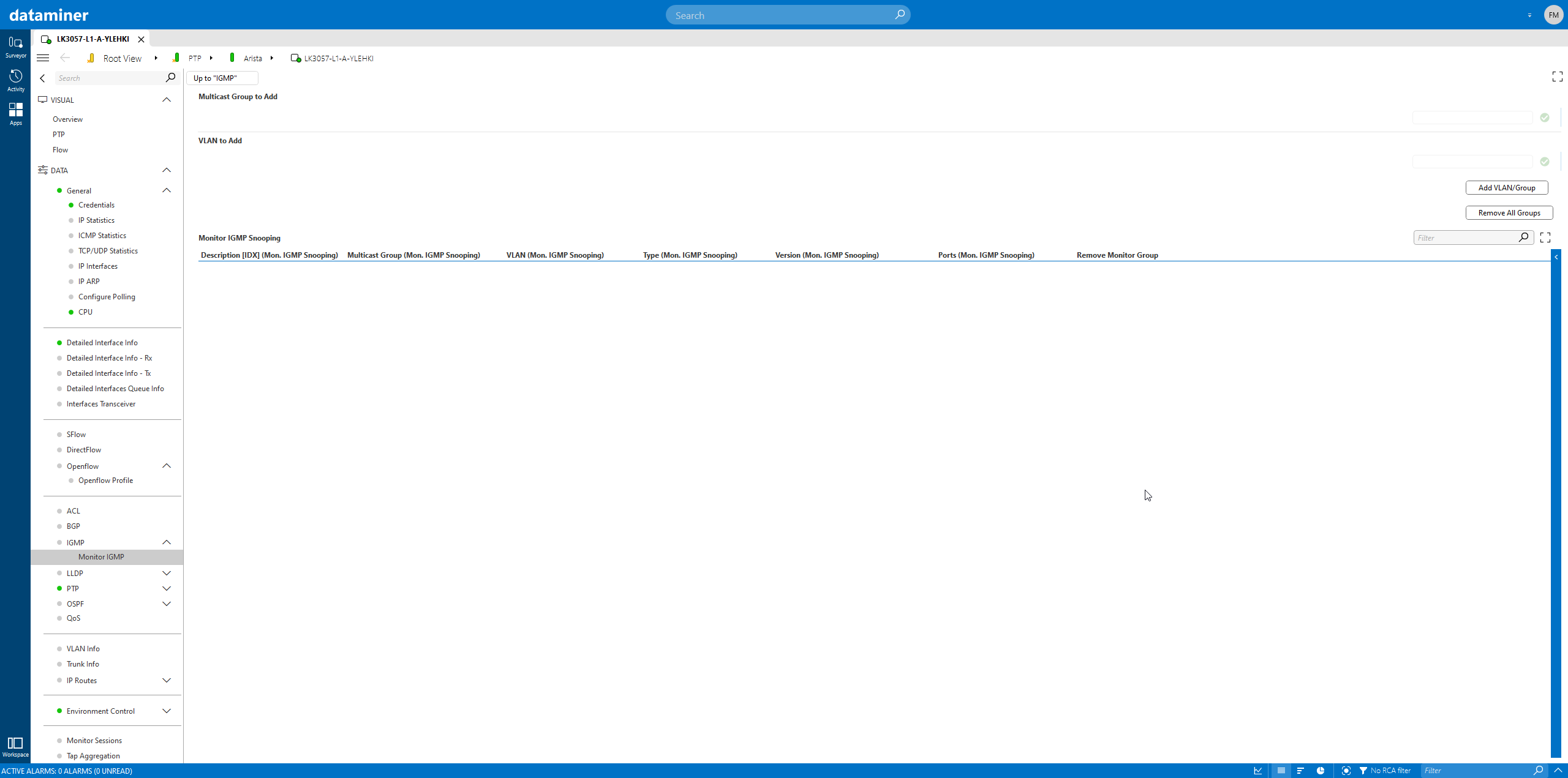

Monitor IGMP - check for specific multicasts and monitor against those
LLDP - show your switch neighbors and endpoints - use this info to create a topology view

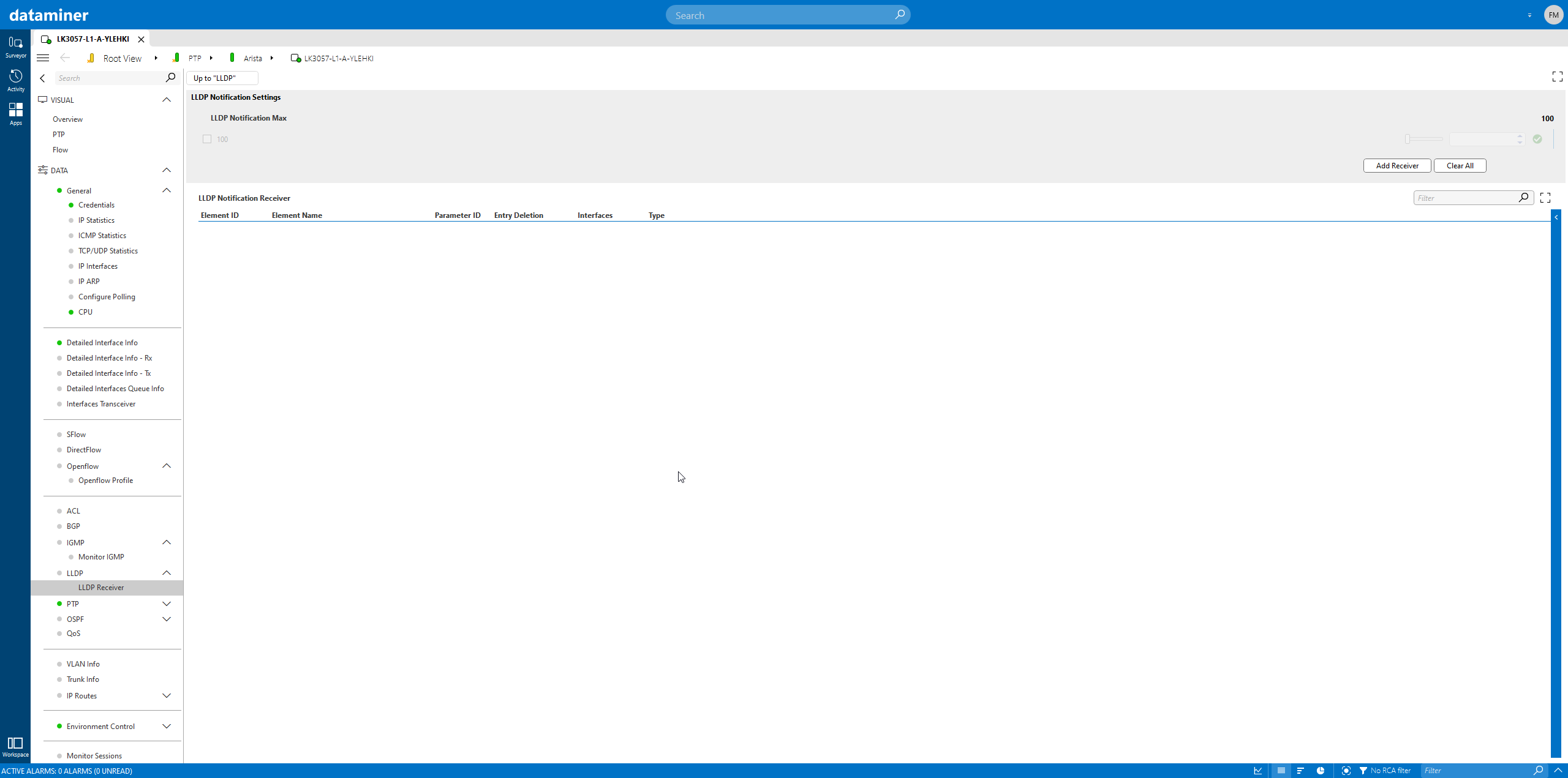

LLDP Receiver

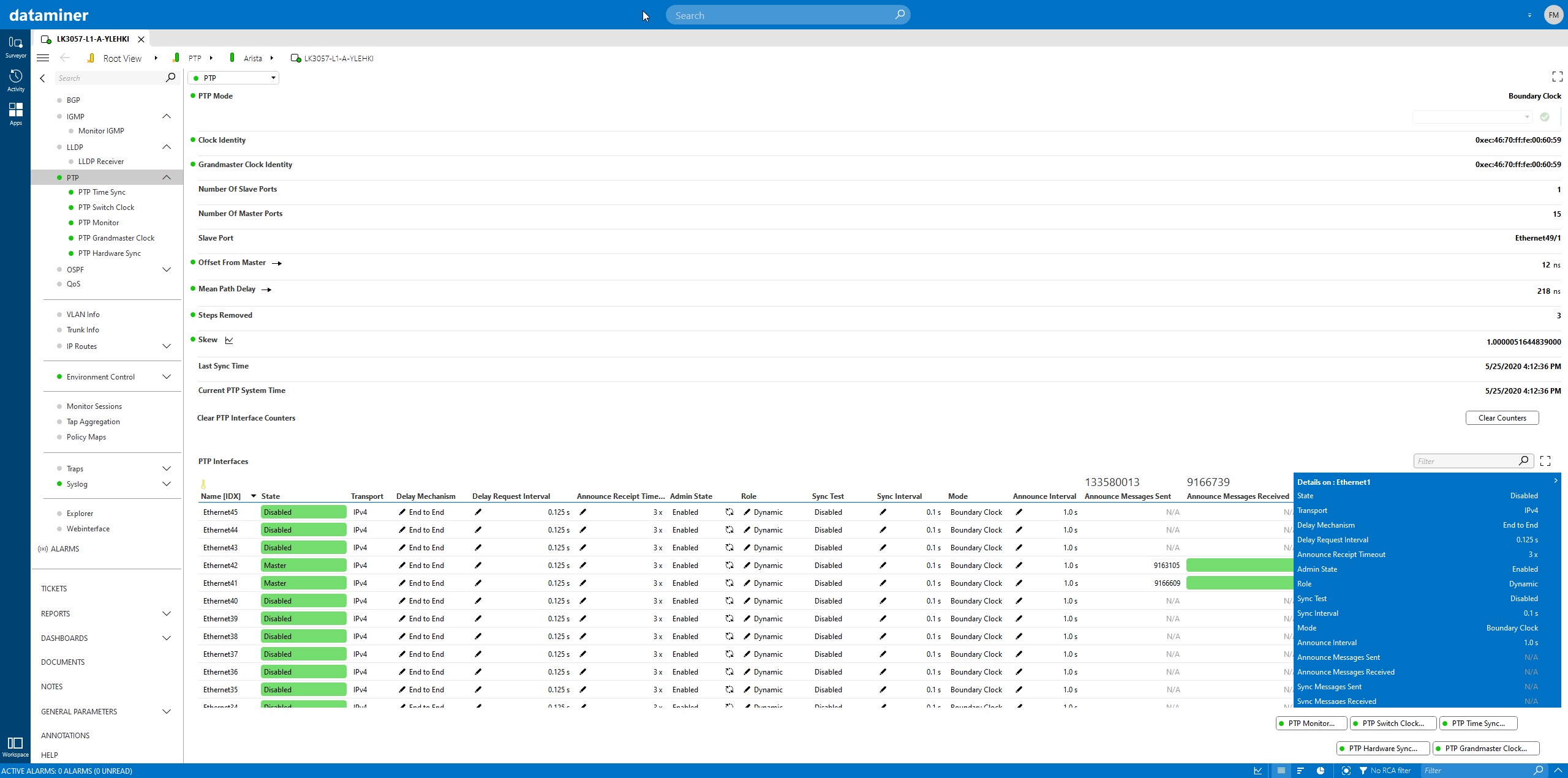

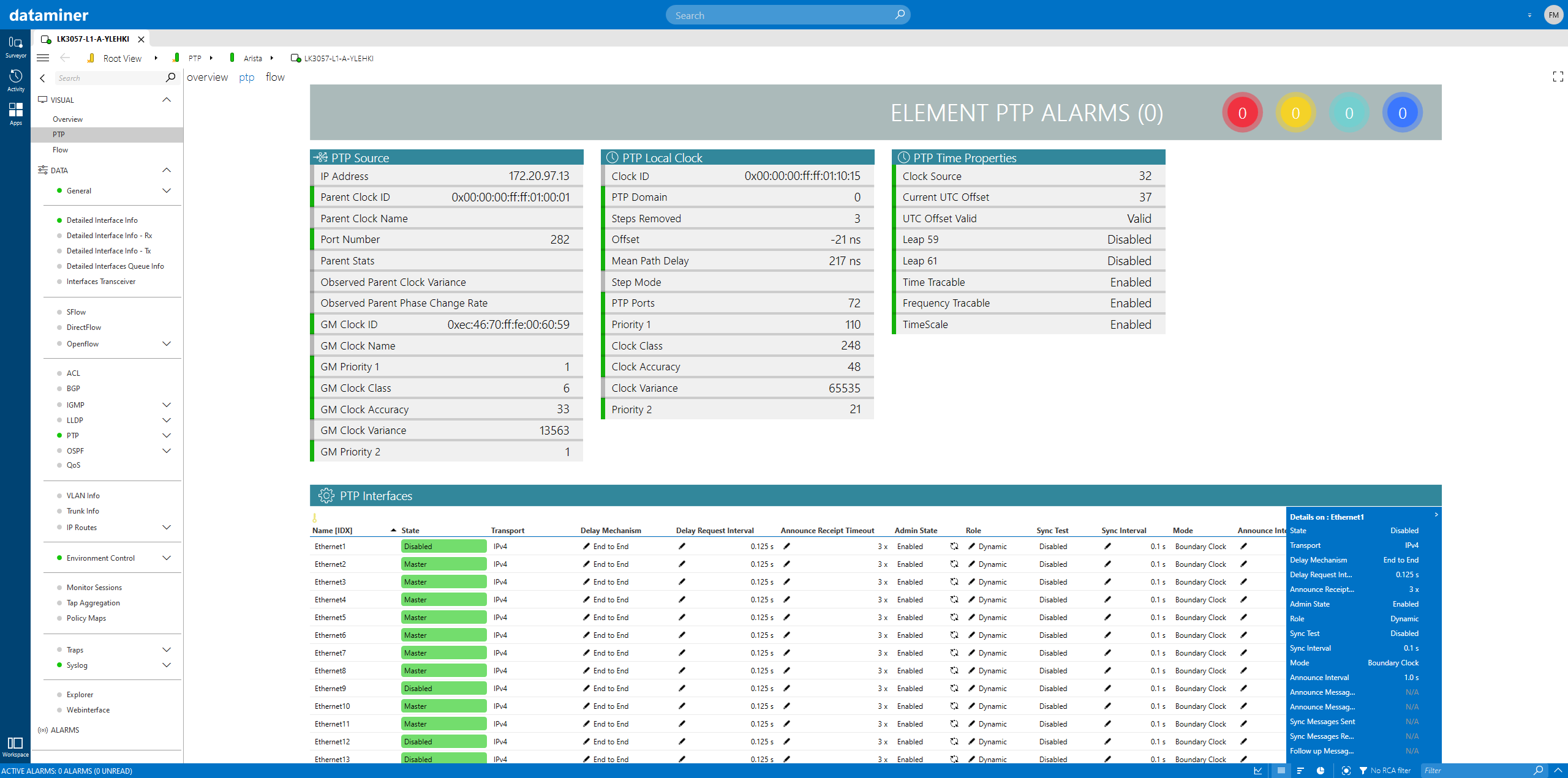

PTP - in depth PTP monitoring - offset, mean path delay, skew, steps removed, grandmaster. Configure all PTP parameters for each interface and get PTP statistics

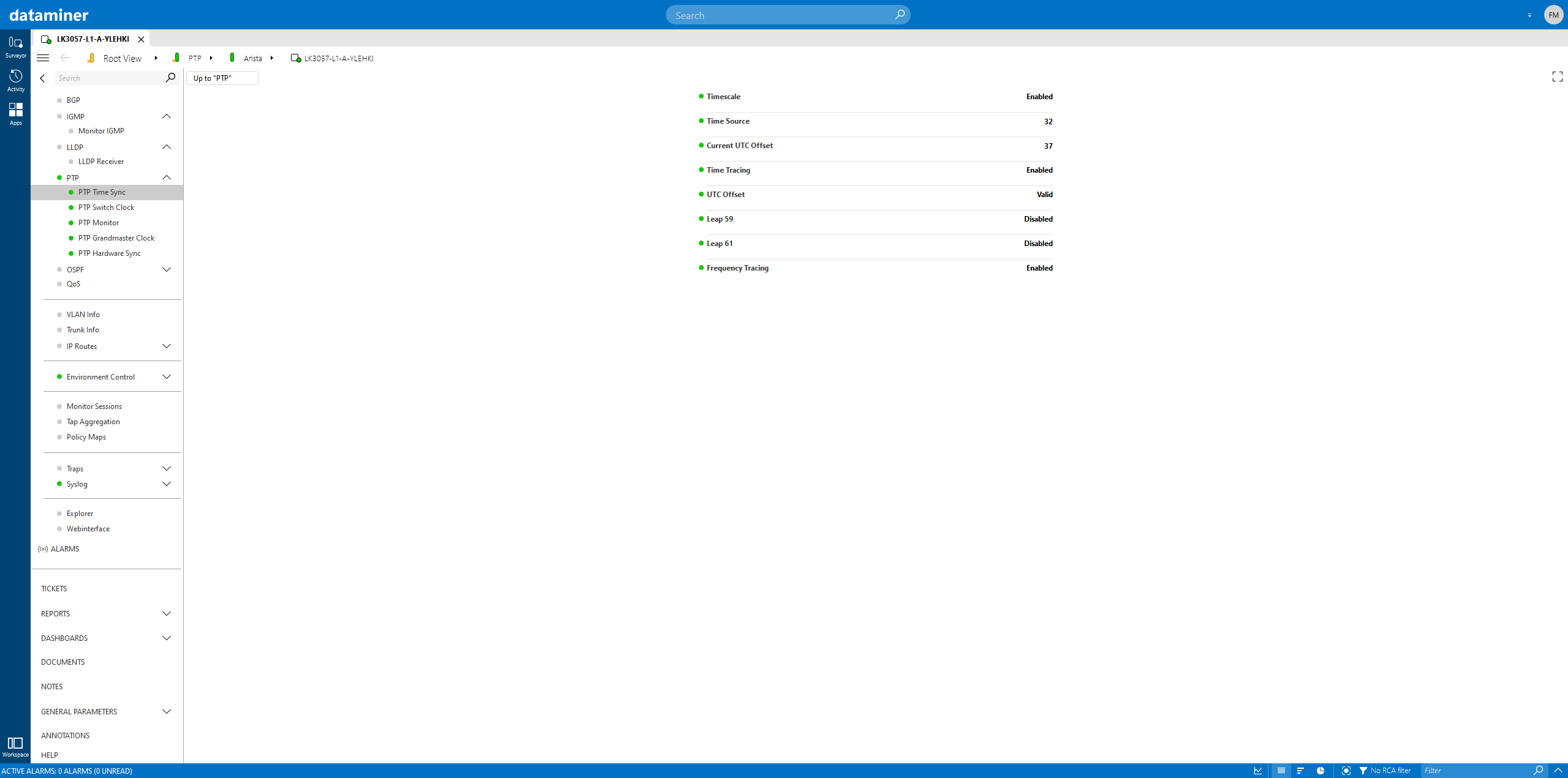

PTP Time Sync - UTC Offset, Frequency Tracing, ...

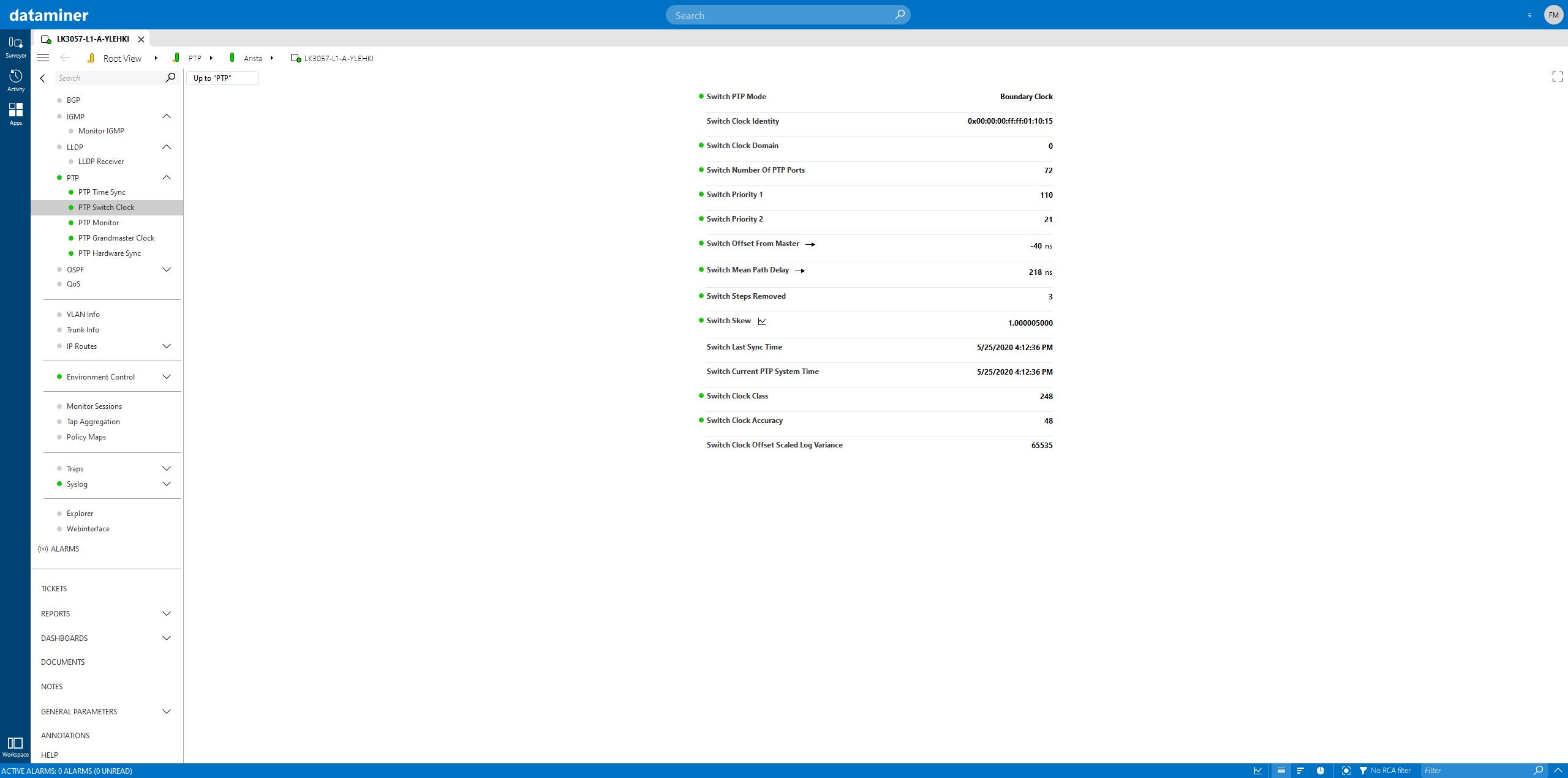

PTP Switch Clock - all PTP Boundary Clock settings

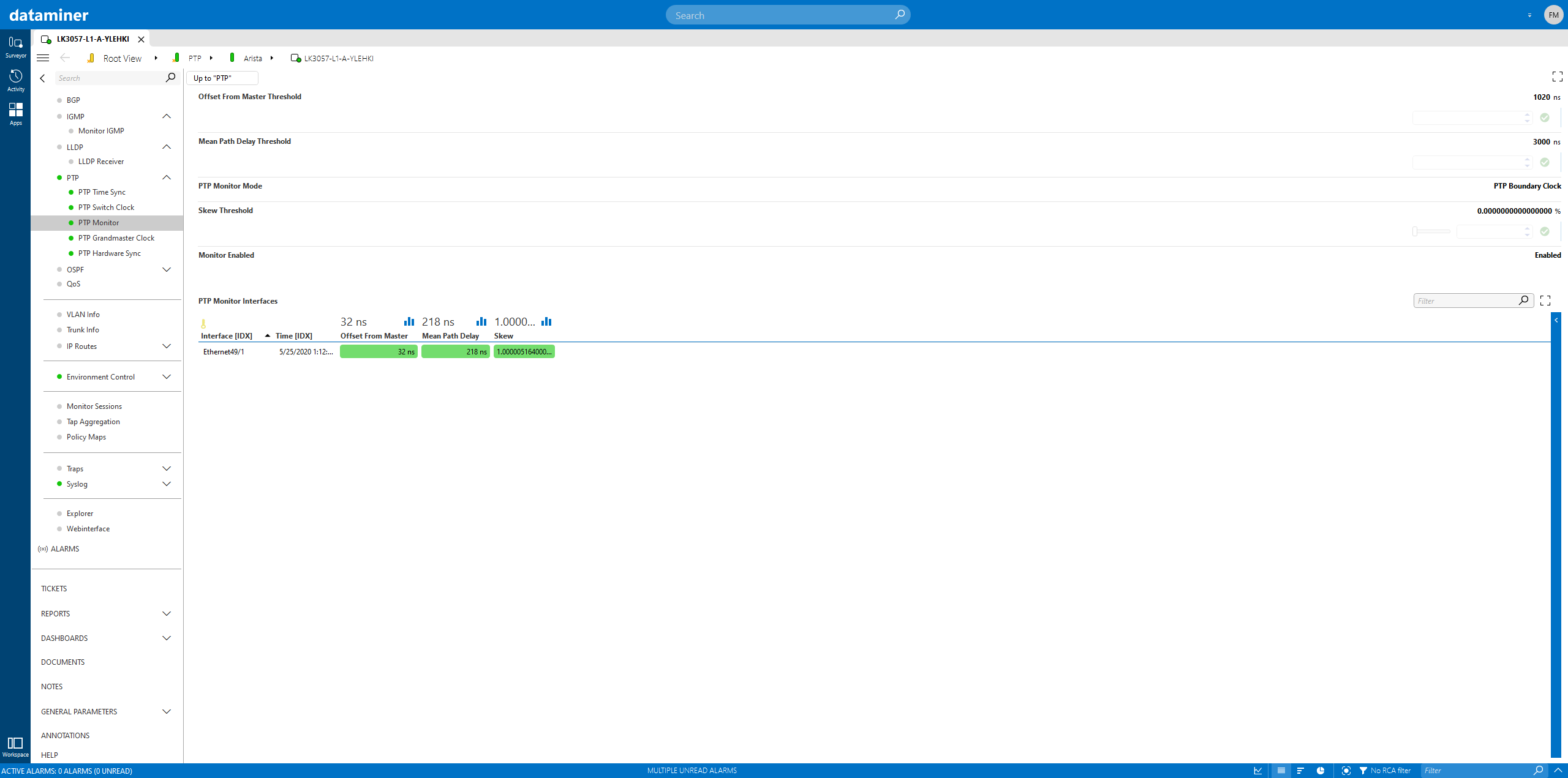

PTP Monitor - specific Arista feature for in-depth offset and mean-path delay monitoring

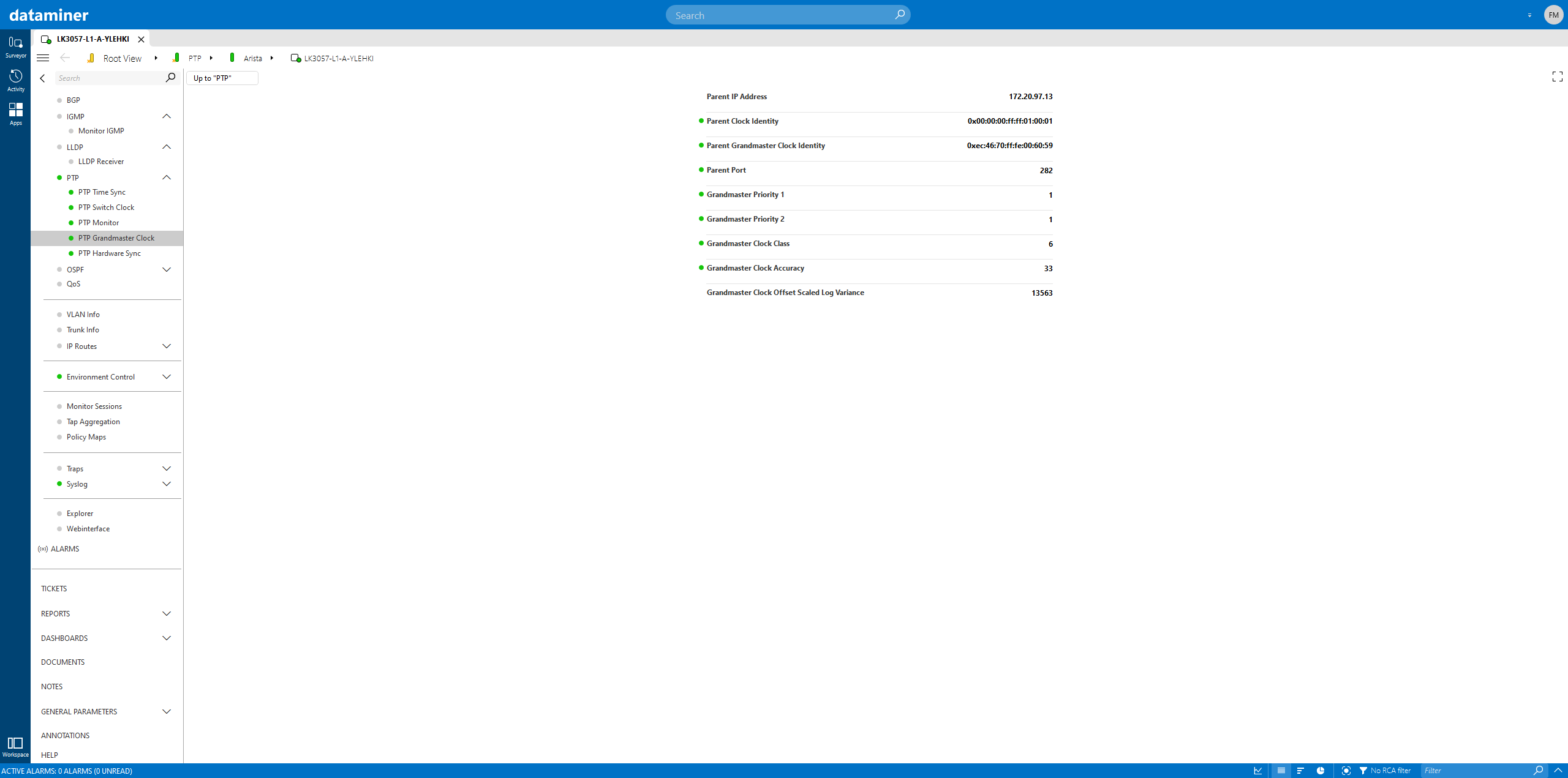

PTP GrandMaster Clock - check our the parent clock and grandmaster clock

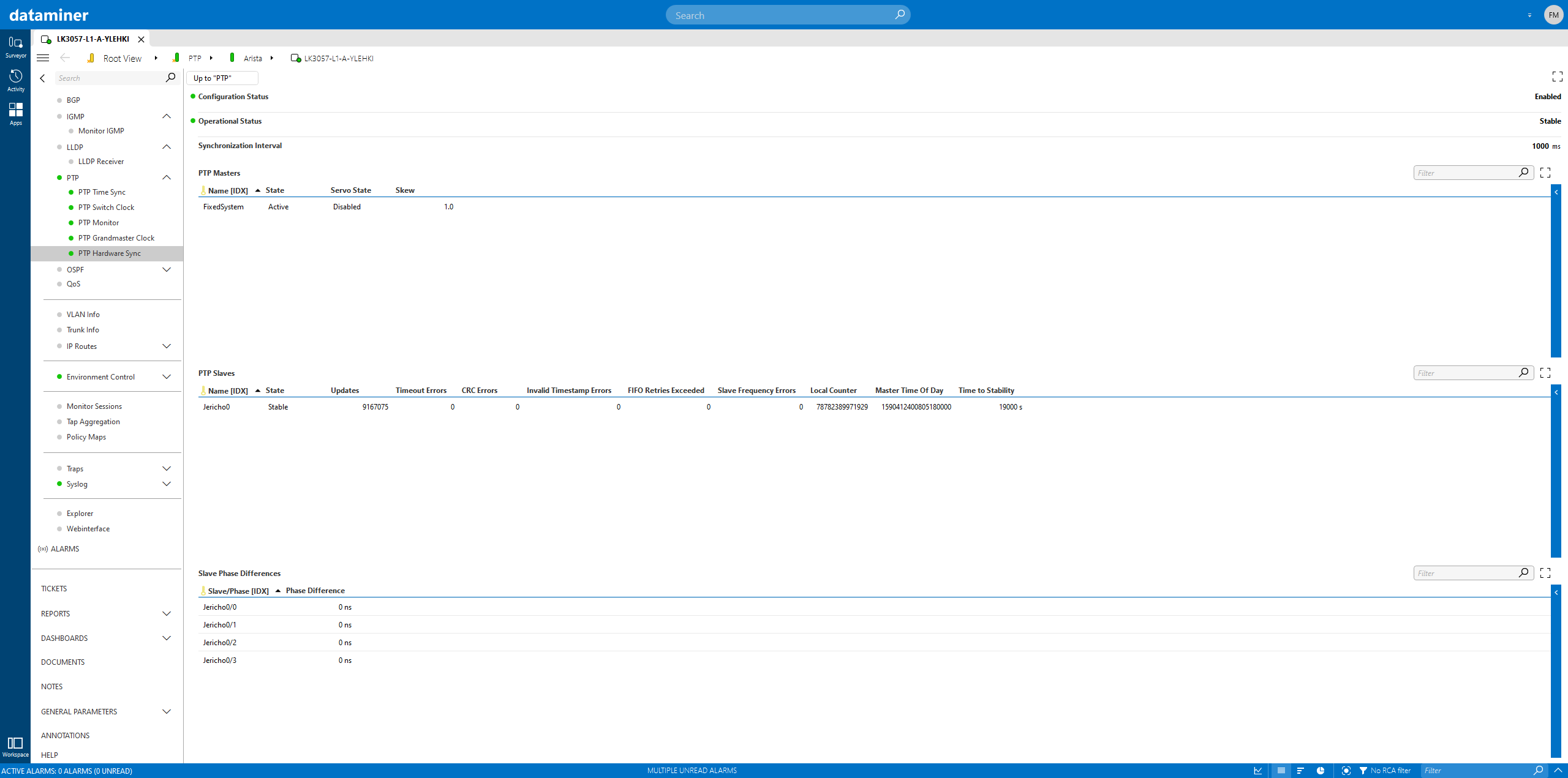

PTP Hardware Sync

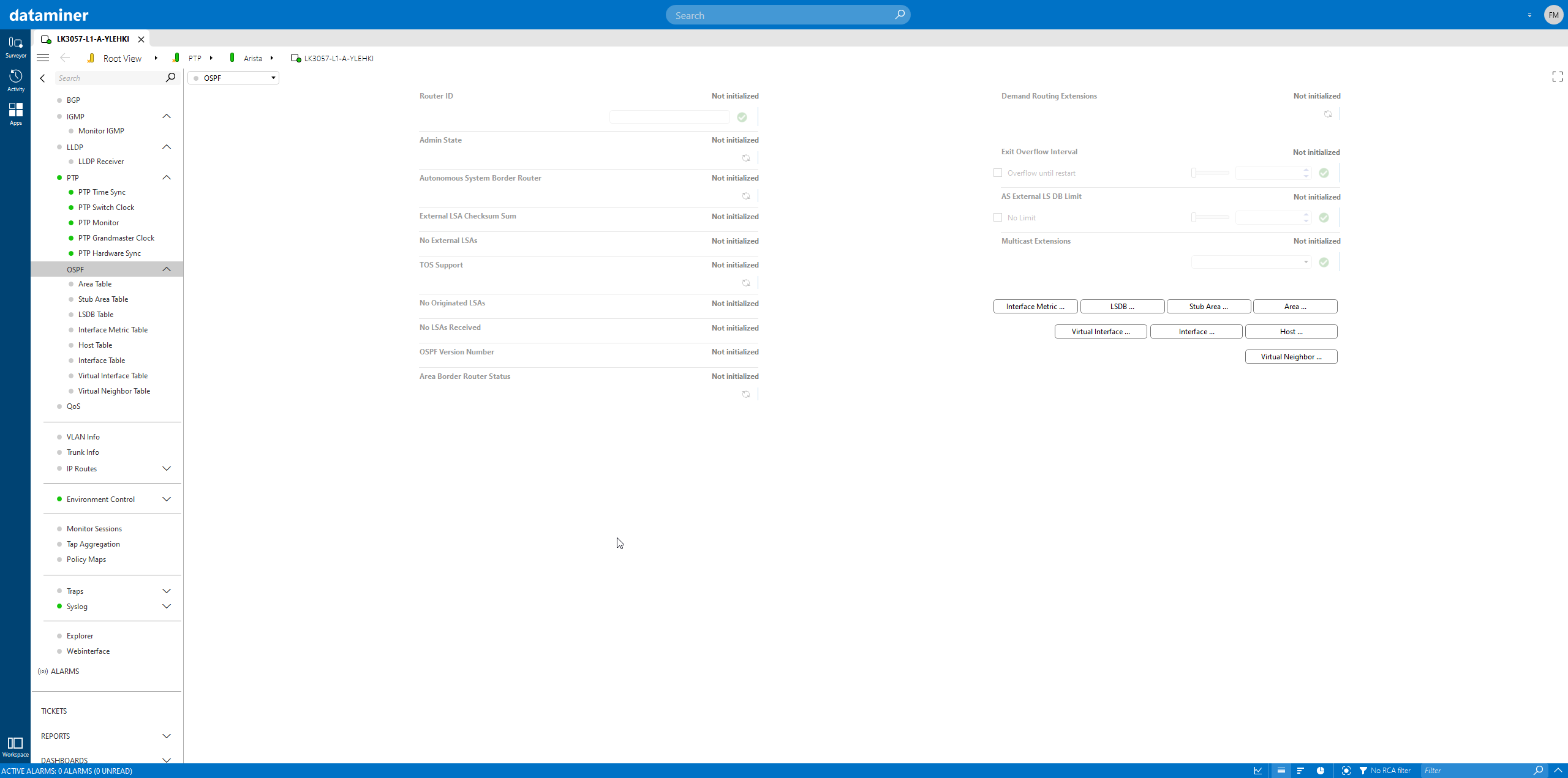

OSPF - overview

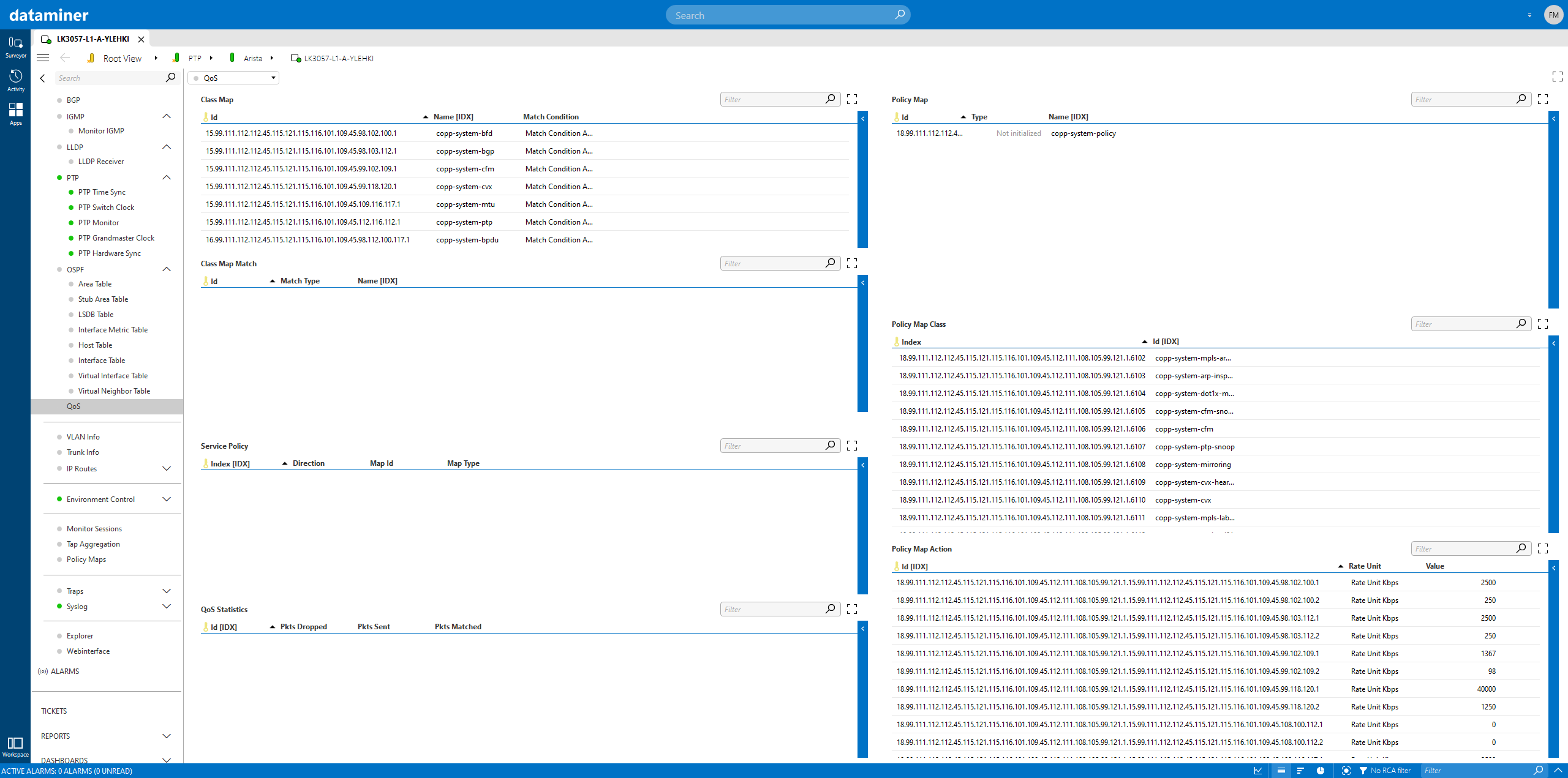

QoS - Arista policy management

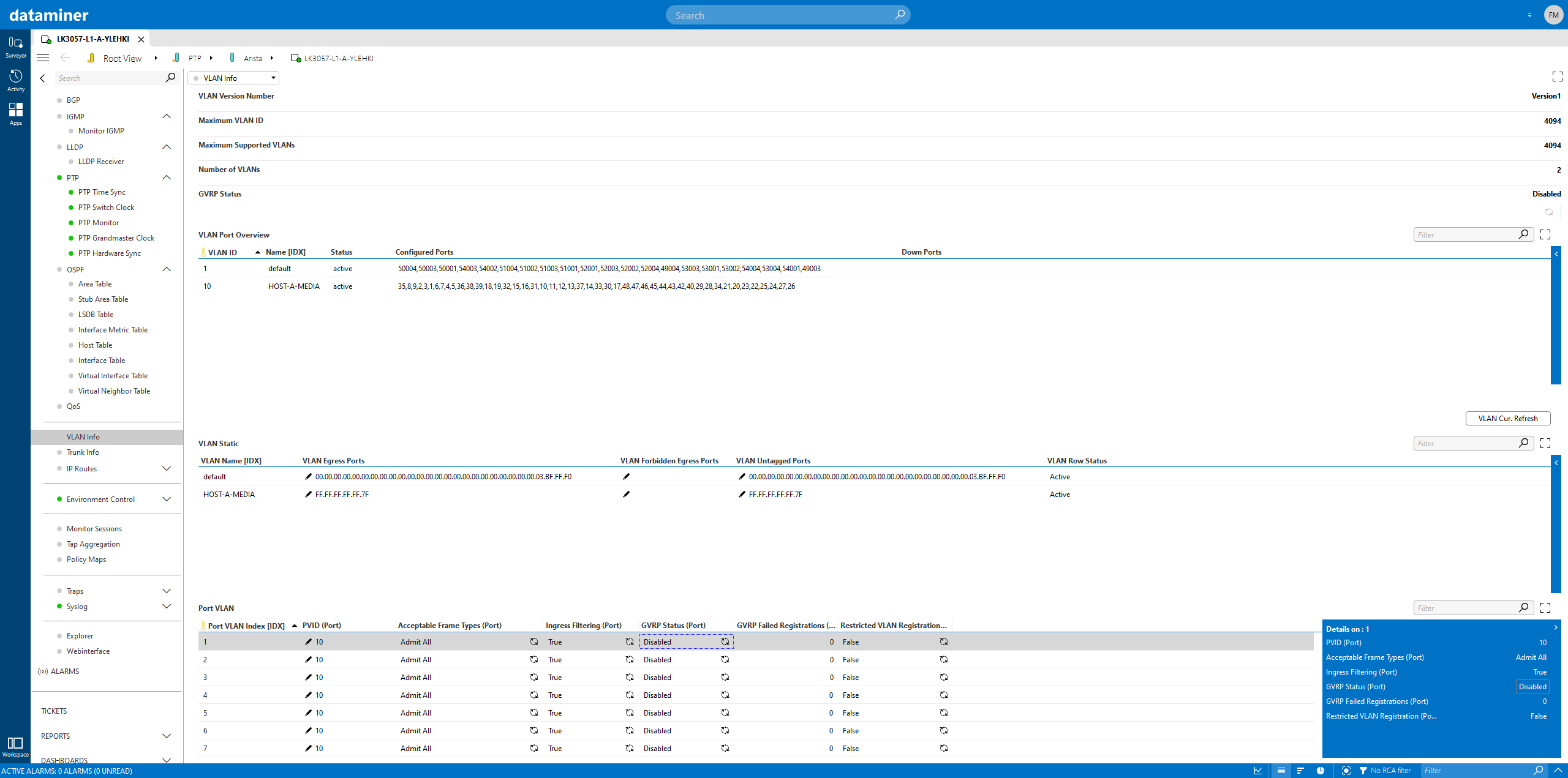

VLAN Info - create and manage VLANs

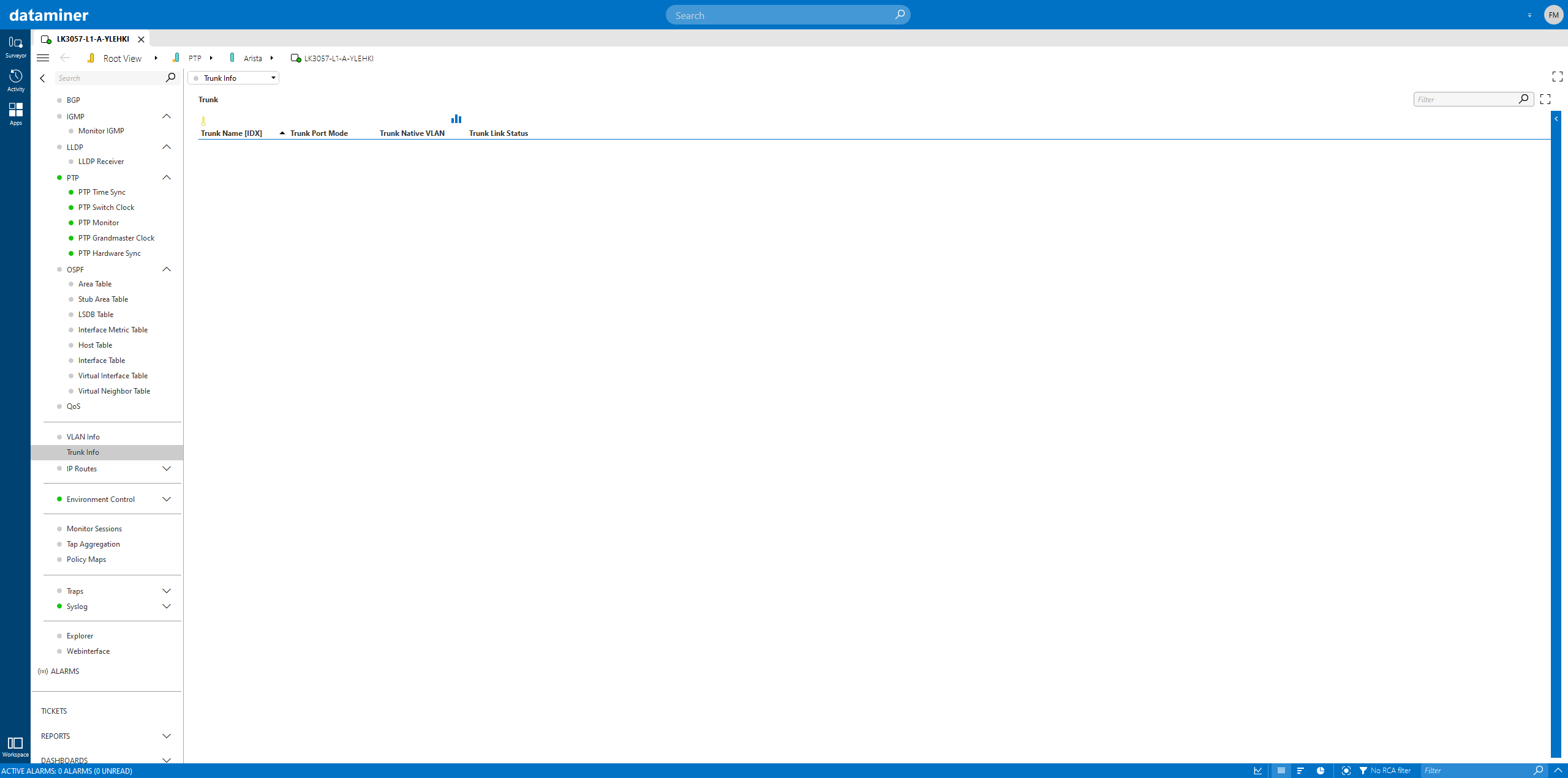

Trunk - monitor trunks

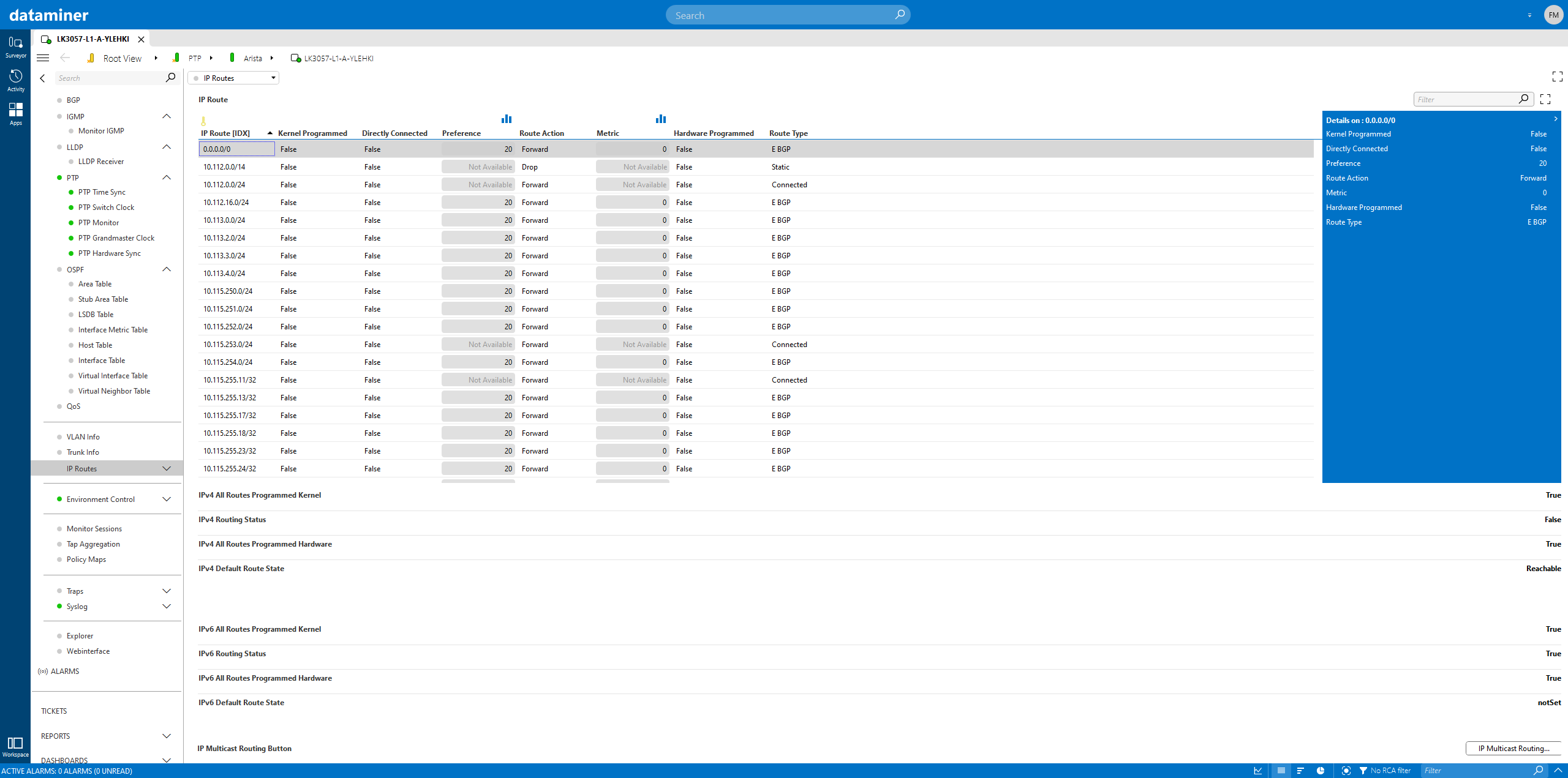

IP Routes - detailed routing tables

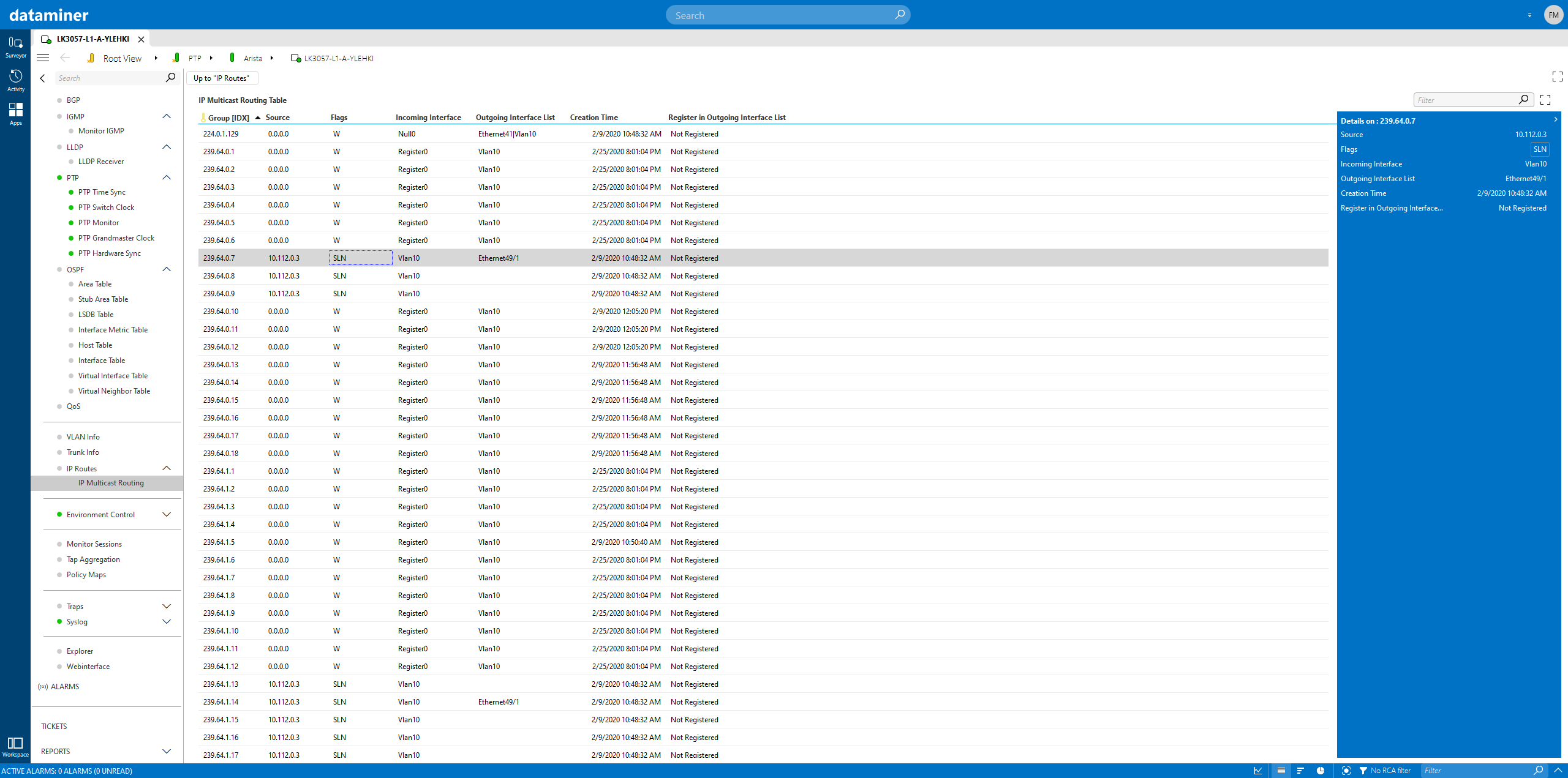

IP Multicast Routing - Arista "MROUTE" table - everything you need to monitor your multicast flows

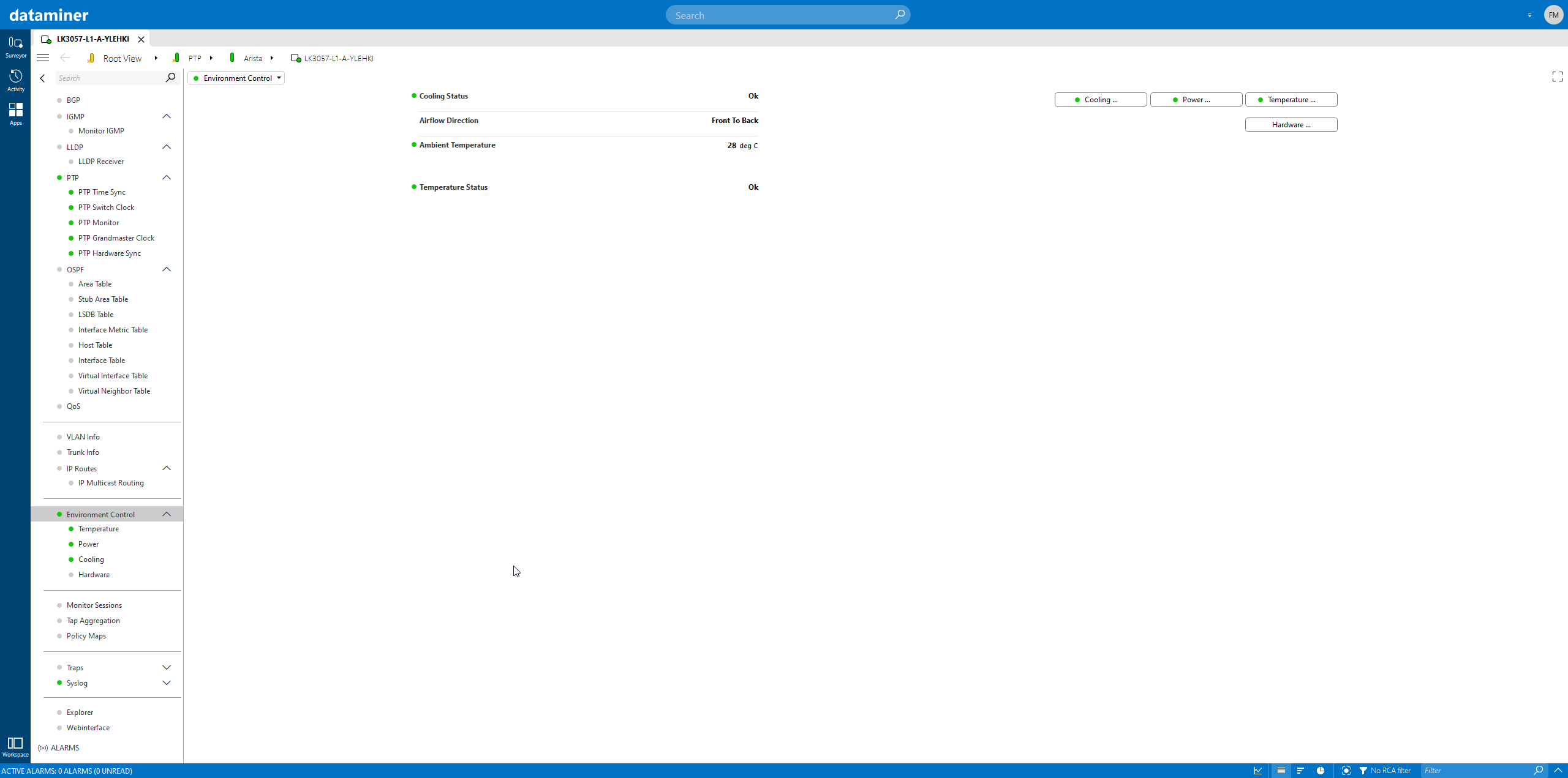

Environmental Control

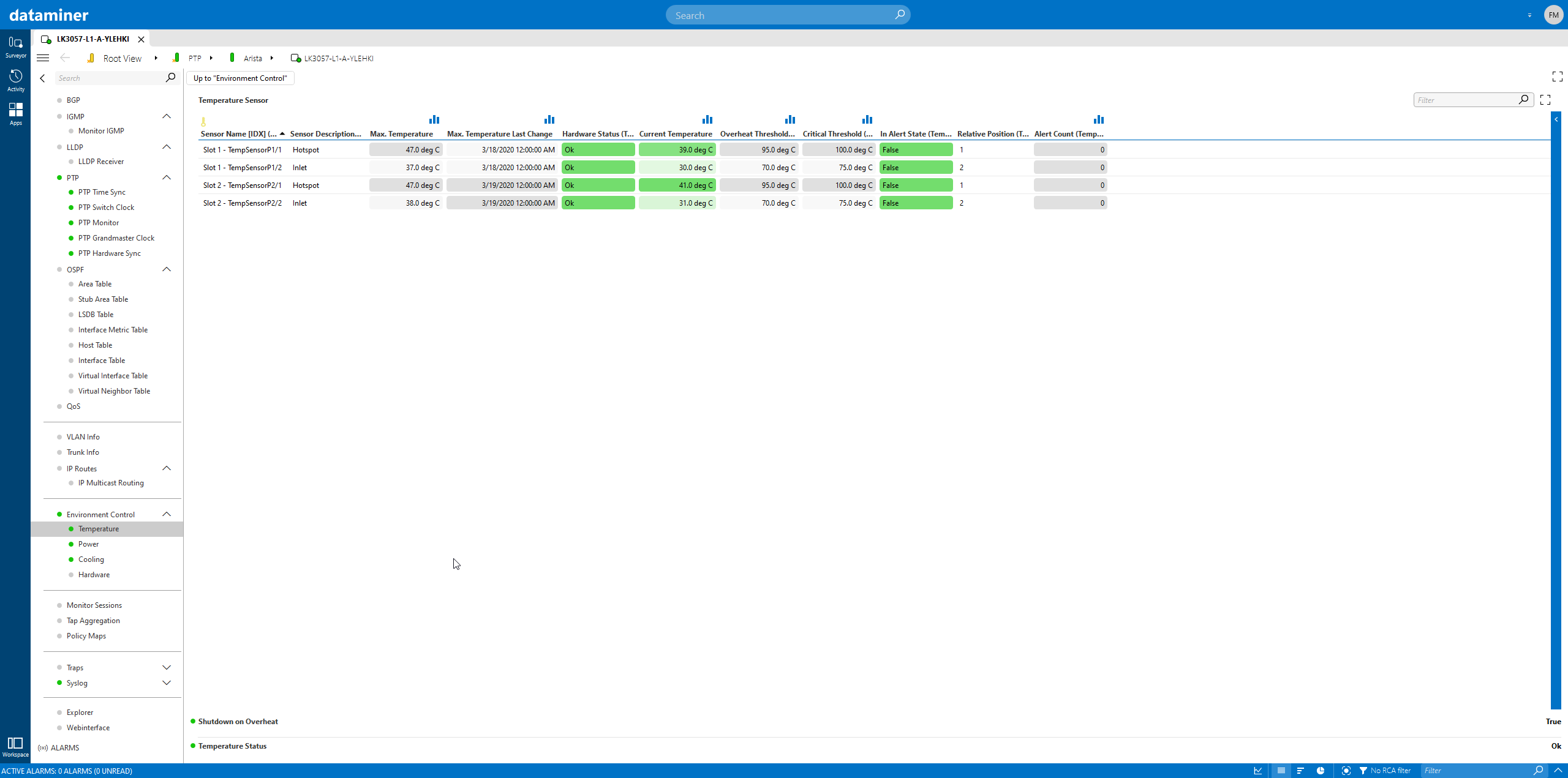

Temperature - temperature sensors

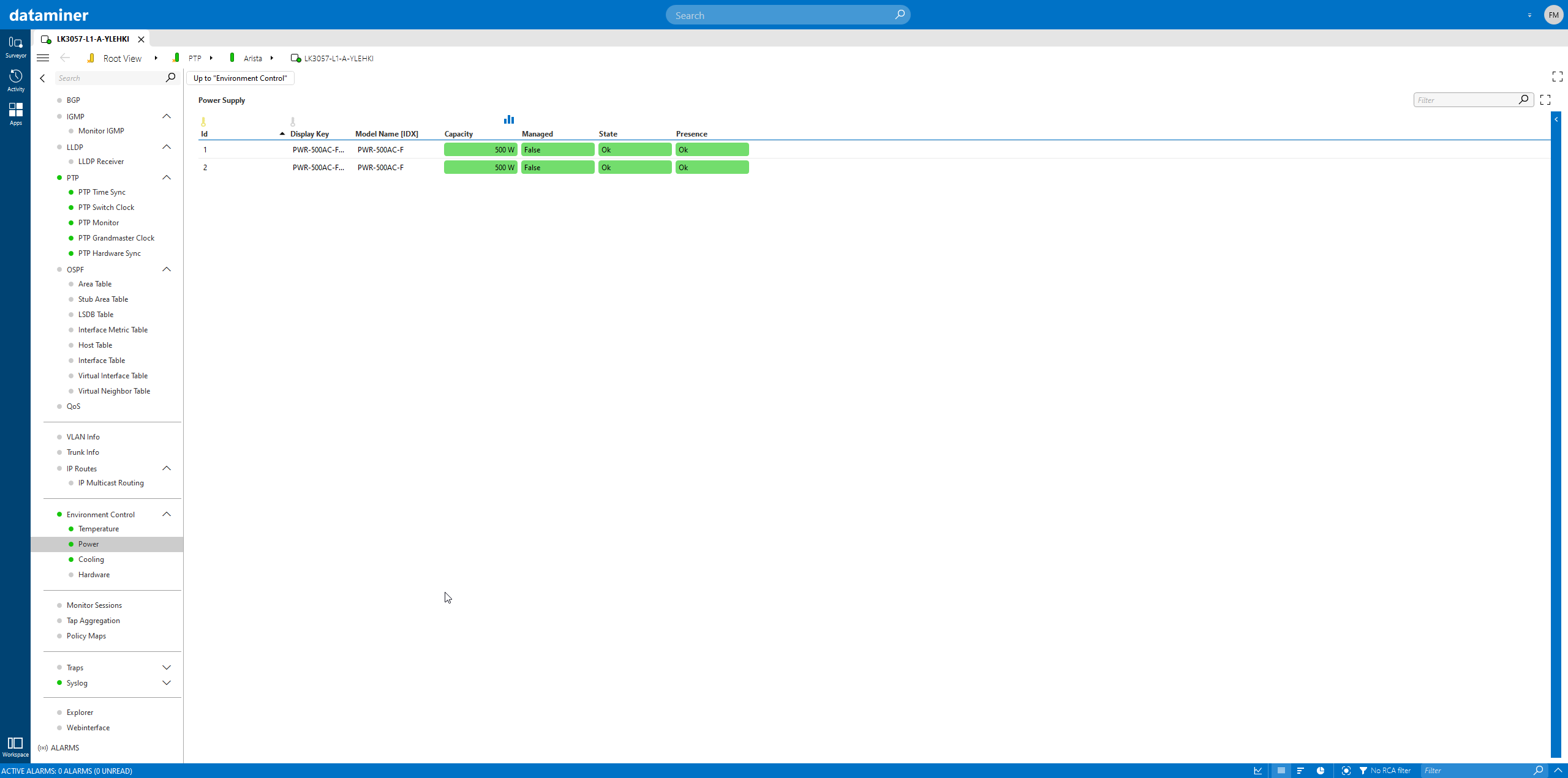

Power - power supply monitoring

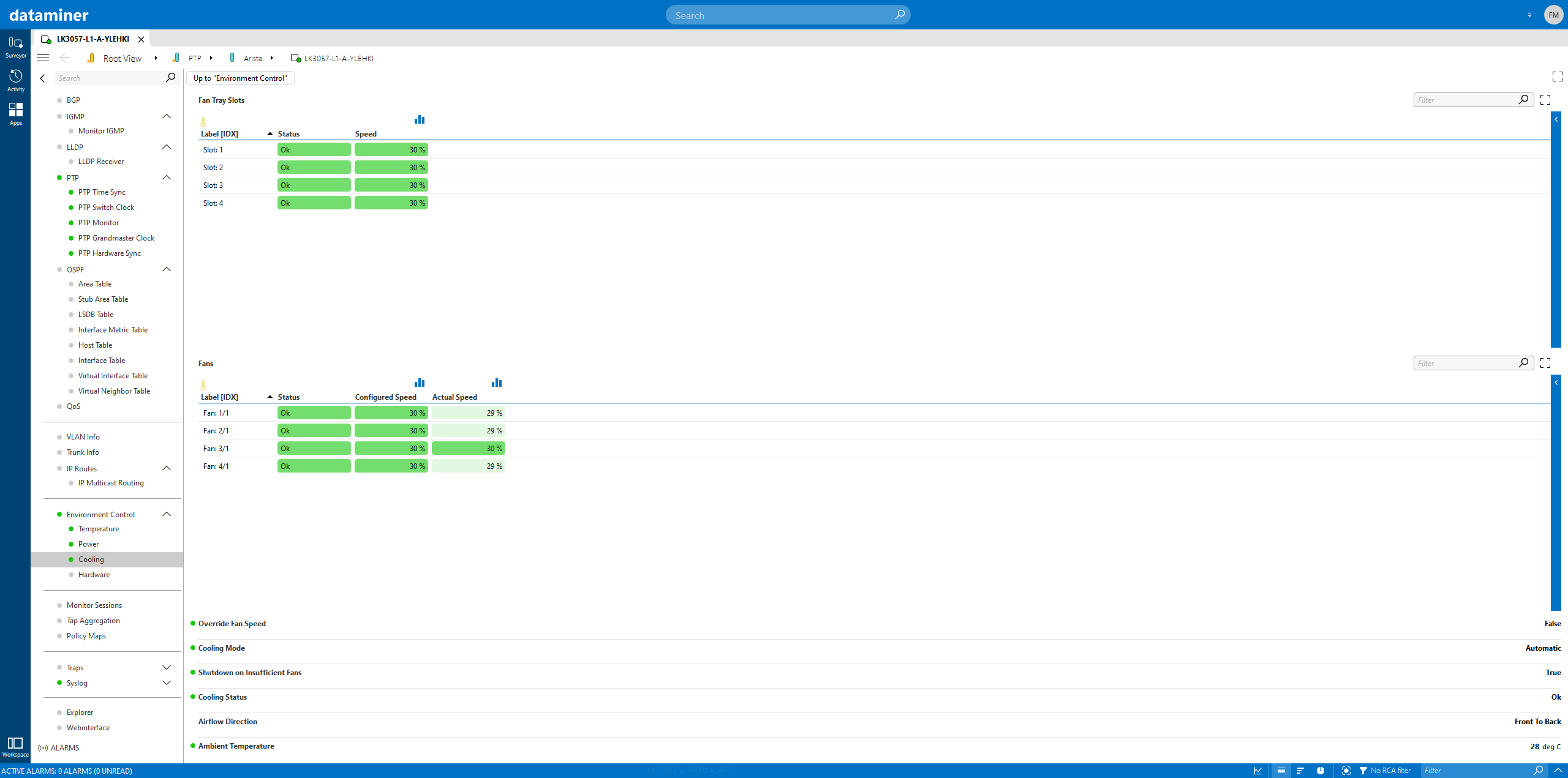

Cooling - fan monitoring

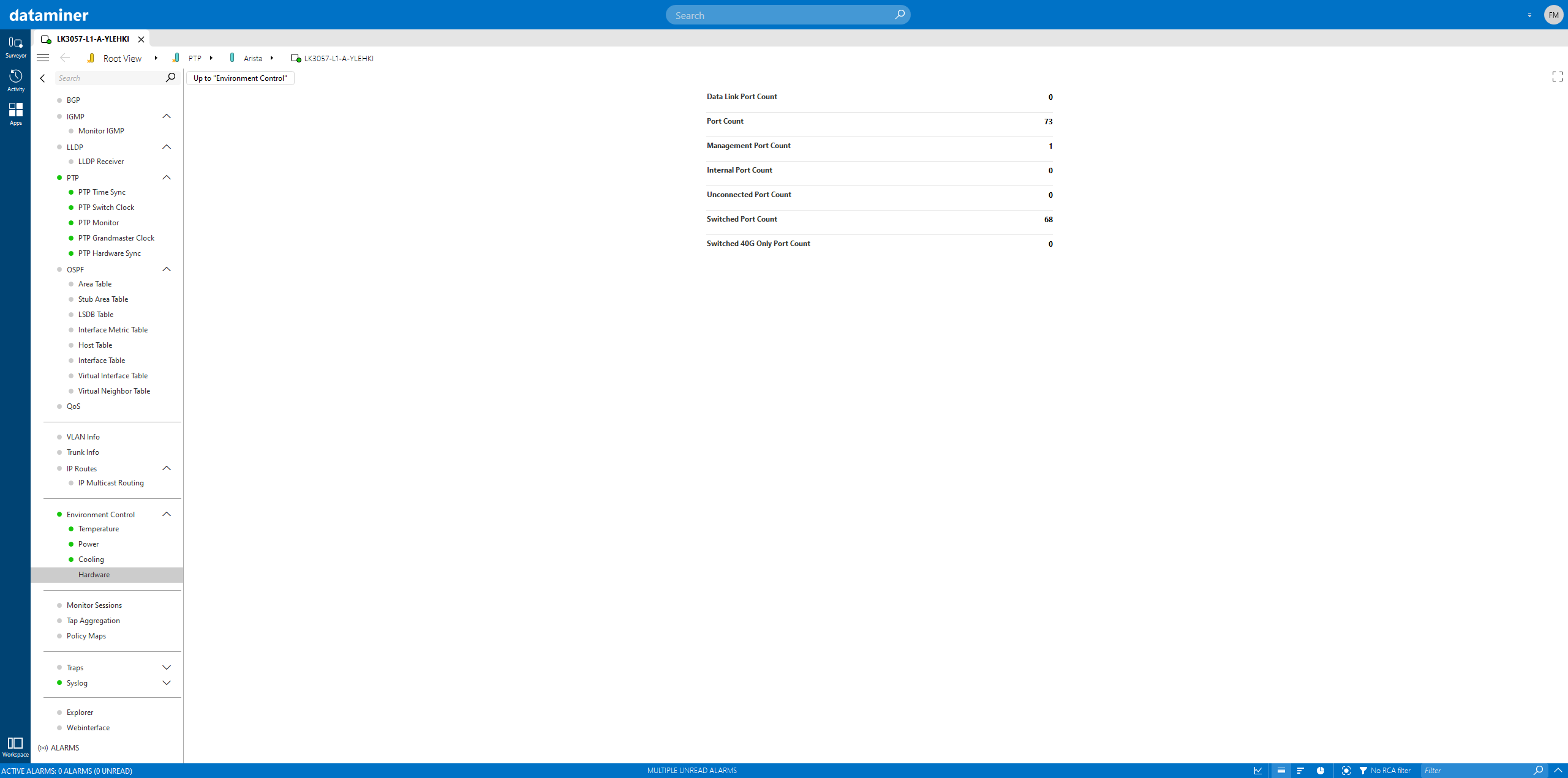

Hardware - port counts

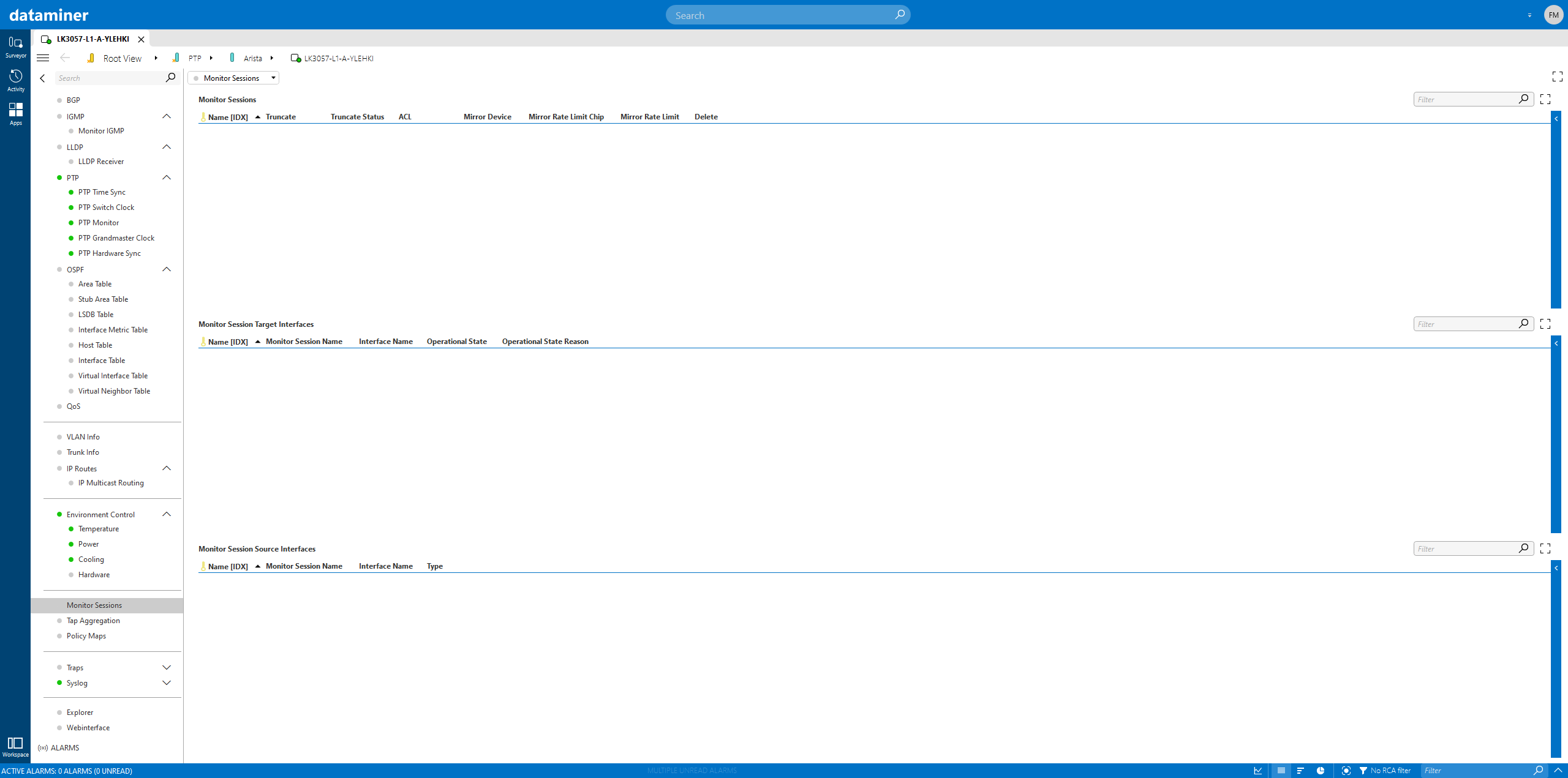

Monitor Sessions

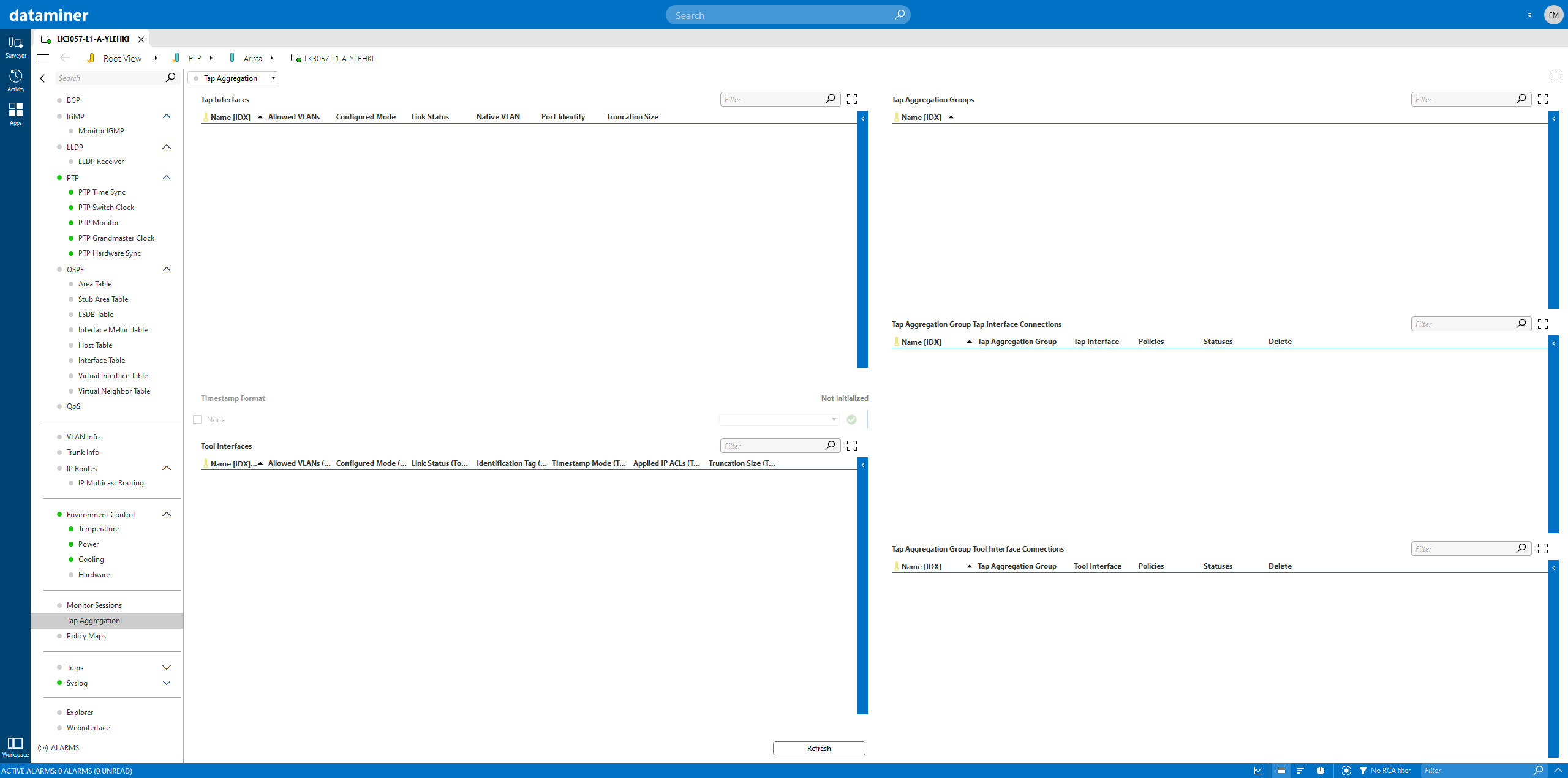

TAP aggregation - configure switch as TAP aggregator

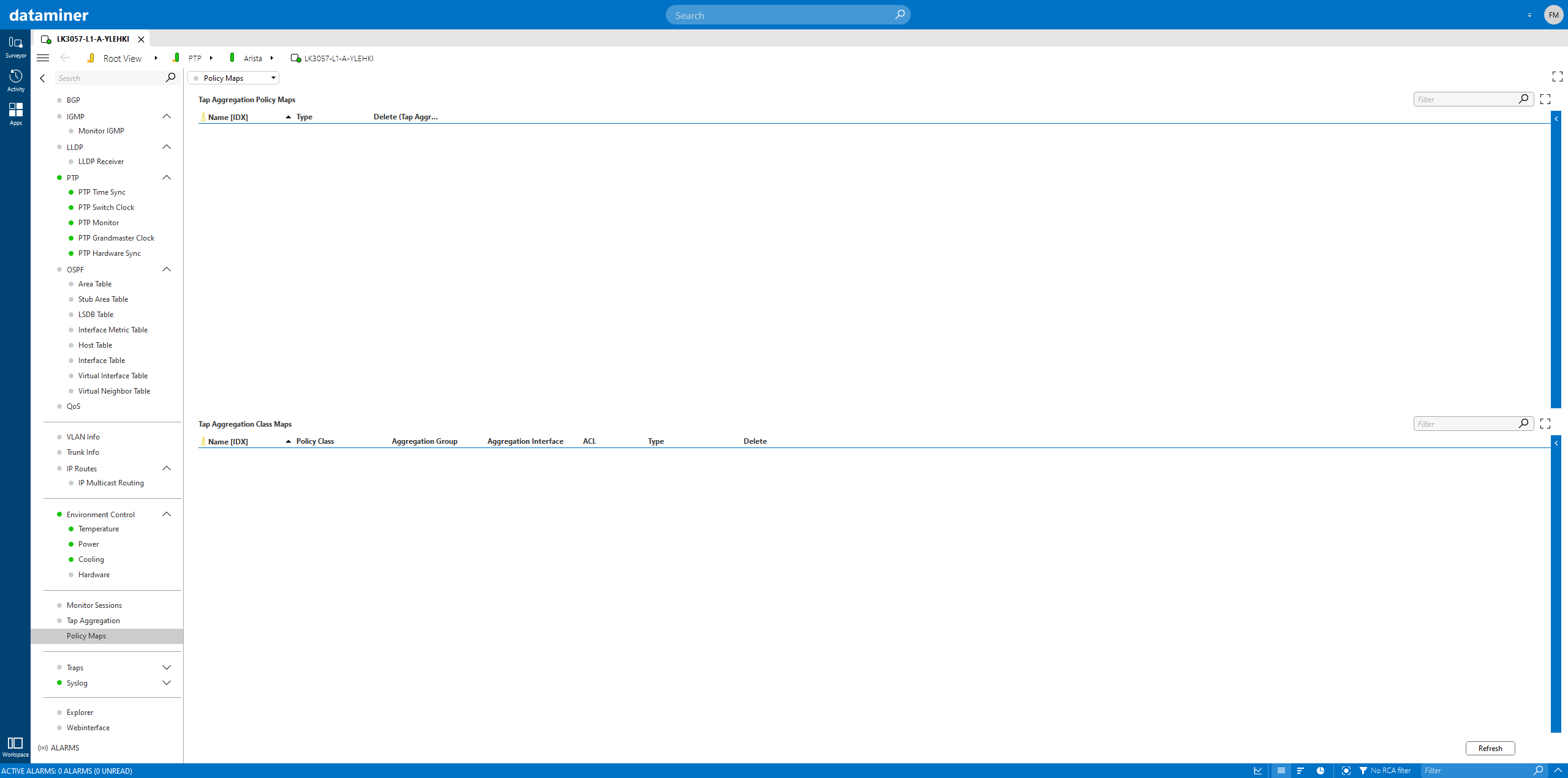

Policy Maps - Tap Aggregation Policies

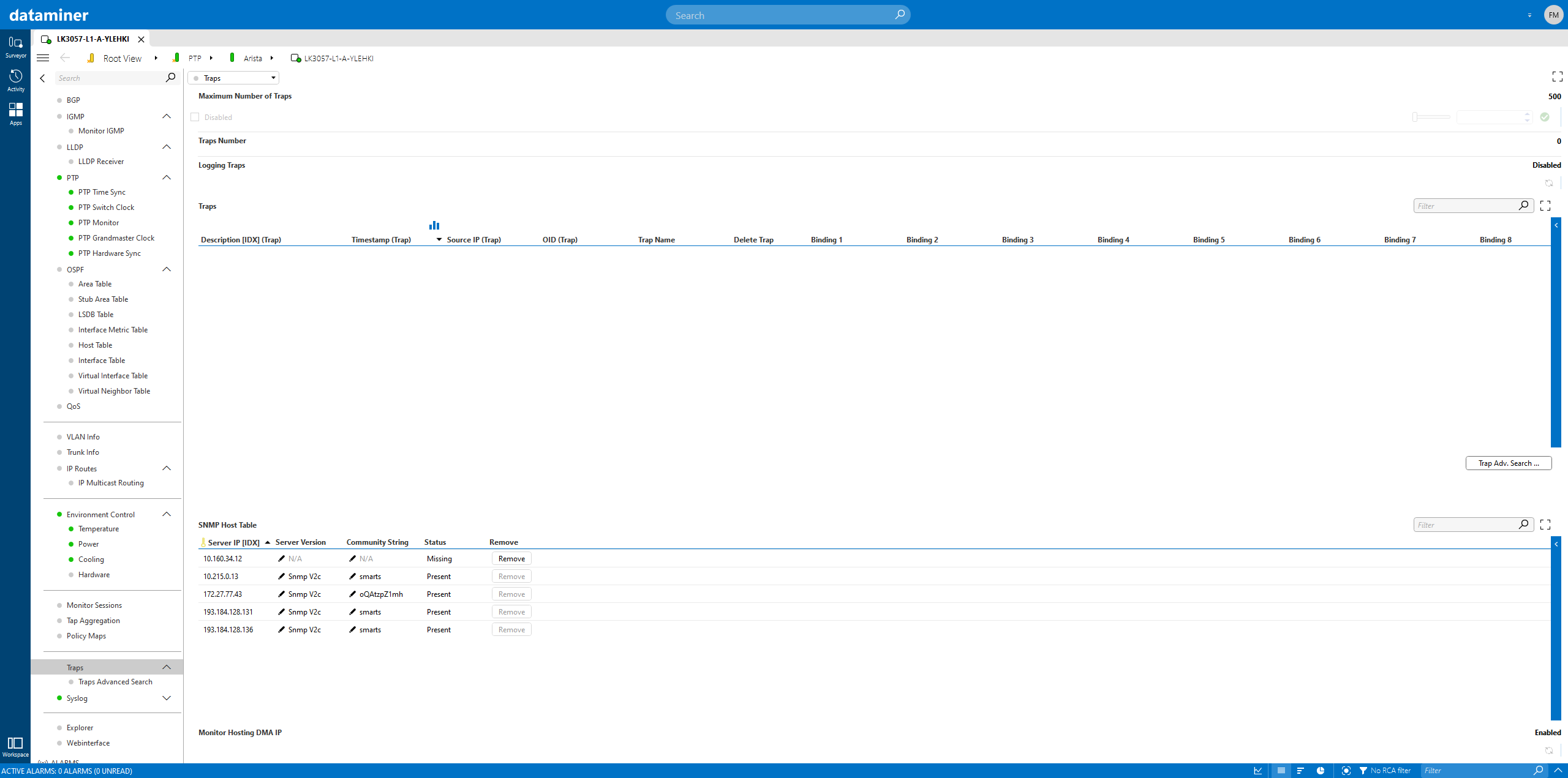

Traps - built-in SNMP trap-receiver

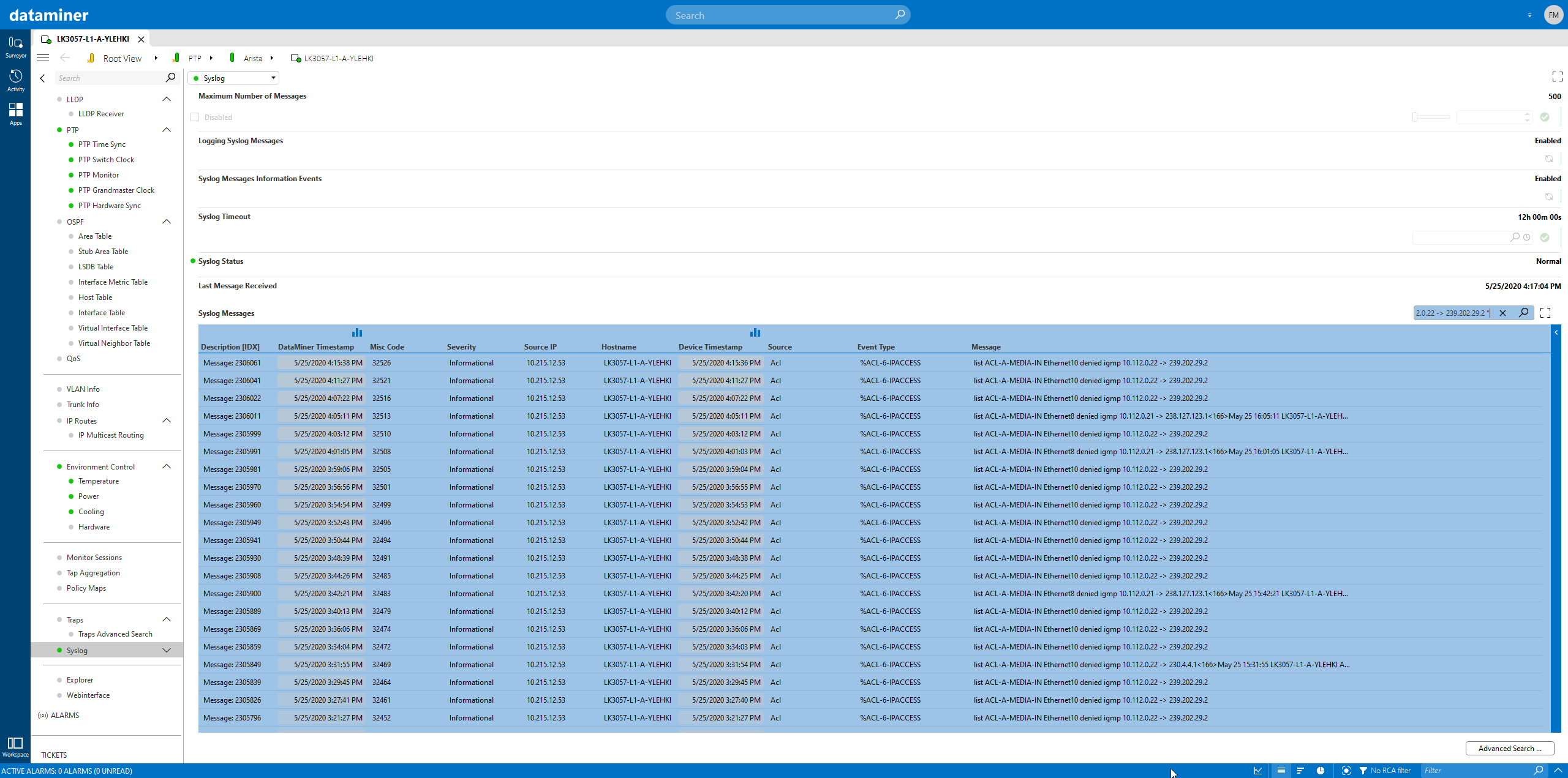

Syslog - built-in Syslog receiver with search capabilities

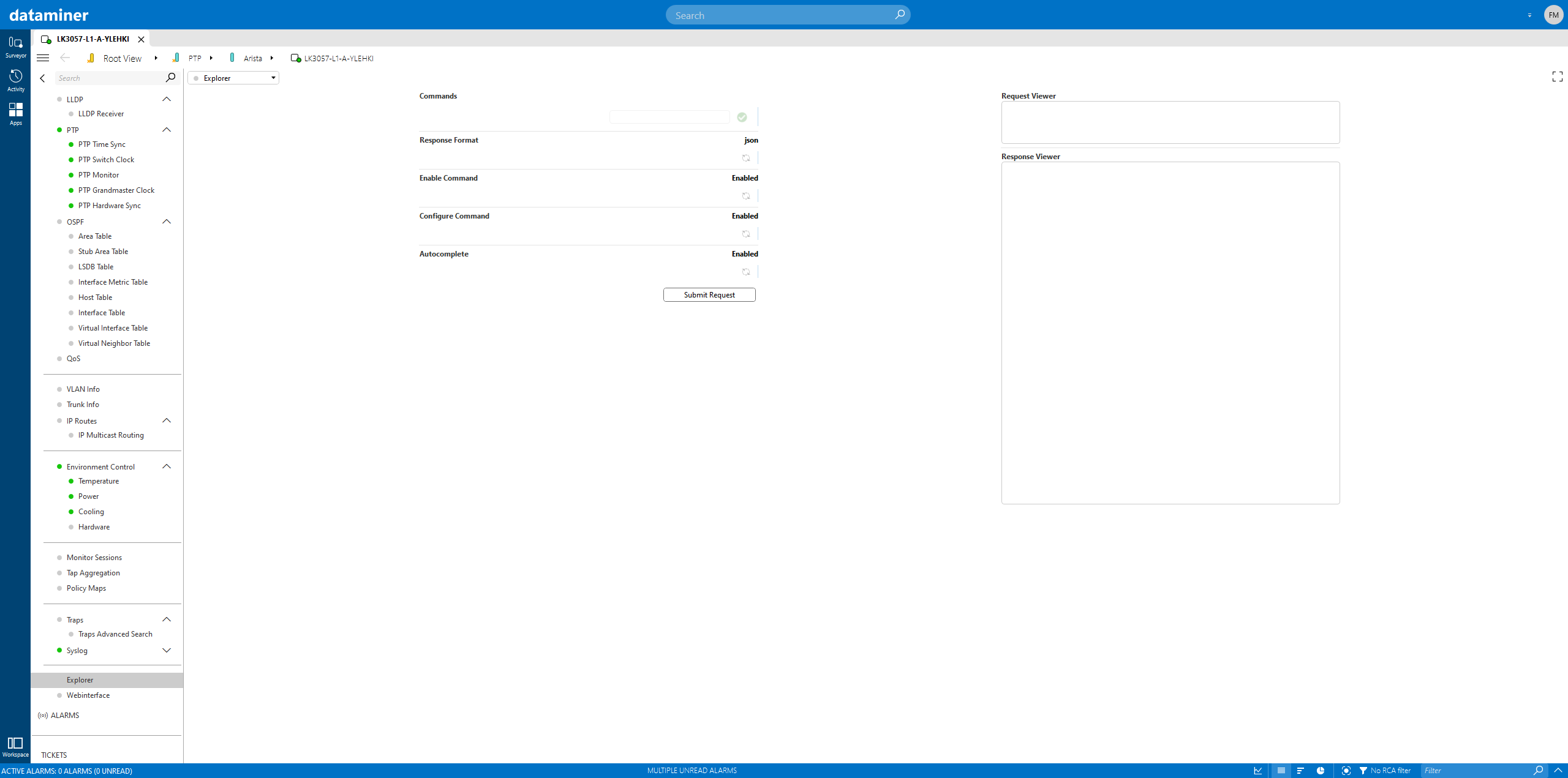

Explorer - send any API command straight to the Arista switch
