<?xml version="1.0" encoding="utf-8" ?>
<Protocol xmlns="http://www.skyline.be/protocol"&gt;
<Name>ATEME Titan-Live</Name>
<Description>Titan Live DataMiner API connector</Description>
<Version>1.0.0.1</Version>
<IntegrationID>DMS-DRV-0001</IntegrationID>
<Provider>test</Provider>
<Vendor>test</Vendor>
<VendorOID>1.3.6.1.4.1.8813.2.99</VendorOID>
<DeviceOID>100</DeviceOID>
<ElementType>Monitoring Platform</ElementType>
<Type relativeTimers="true">http</Type>
<Display defaultPage="General" pageOrder="General;———-;Security;———-;Resources;Management;Services;Networking;Sensor;Licence;———-;Webpage#http://[Polling Ip]/" wideColumnPages="Security"/>
<SNMP includepages="true">auto</SNMP>

<Compliancies>
<CassandraReady>true</CassandraReady>
<MinimumRequiredVersion>10.2.0.0 – 12603</MinimumRequiredVersion>
</Compliancies>

<Params>
<Param id="1">
<Name>AfterStartup</Name>
<Description>After Startup</Description>
<Type>dummy</Type>
</Param>
<Param id="2">
<Name>StatusCodePingCheck</Name>
<Description>StatusCodePingCheck</Description>
<Type>read</Type>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
</Param>
<Param id="3">
<Name>PingCheckResponse</Name>
<Description>PingCheckResponse</Description>
<Type>read</Type>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
</Param>
<Param id="4">
<Name>StatusCodeLogin</Name>
<Description>status Code Login</Description>
<Type>dummy</Type>
</Param>
<Param id="5">
<Name>LoginResponse</Name>
<Description>Login Response</Description>
<Type>dummy</Type>
</Param>

<Param id="100" trending="true">
<Name>APIHealth</Name>
<Description>API Health</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[API Health Status]]>
</Subtext>
</Information>
<Interprete>
<RawType>numeric text</RawType>
<Type>double</Type>
<LengthType>next param</LengthType>
</Interprete>
<Alarm>
<Monitored>true</Monitored>
<CH>Fail</CH>
<Normal>Ok</Normal>
</Alarm>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Resources</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Management</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Services</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Networking</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Sensor</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
<Position>
<Page>Licence</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>discreet</Type>
<Discreets>
<Discreet>
<Display>Fail</Display>
<Value>0</Value>
</Discreet>
<Discreet>
<Display>Ok</Display>
<Value>1</Value>
</Discreet>
</Discreets>
</Measurement>
</Param>
<Param id="101" trending="false">
<Name>ProtocolSupport</Name>
<Description>Protocol Support</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[API support with this protocol]]>
</Subtext>
</Information>
<Alarm>
<Monitored>true</Monitored>
<Normal>Support</Normal>
<CH>Not Support</CH>
</Alarm>
<Interprete>
<RawType>numeric text</RawType>
<Type>double</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>1</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>discreet</Type>
<Discreets>
<Discreet>
<Display>Not Support</Display>
<Value>0</Value>
</Discreet>
<Discreet>
<Display>Support</Display>
<Value>1</Value>
</Discreet>
</Discreets>
</Measurement>
</Param>
<Param id="102" trending="false">
<Name>APIVersion</Name>
<Description>API Version</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[API Version]]>
</Subtext>
</Information>
<Alarm>
<Monitored>true</Monitored>
<Normal>2.4.0.3</Normal>
<CH>=!2.4.0.3</CH>
</Alarm>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>2</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="103" trending="false">
<Name>FirmwareVersion</Name>
<Description>Firmware Version</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[Firmware Version]]>
</Subtext>
</Information>
<Alarm>
<Monitored>true</Monitored>
<Normal>4.1.30.0-0</Normal>
<CH>=!4.1.30.0-0</CH>
</Alarm>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>3</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="104" trending="false">
<Name>ServerUUID</Name>
<Description>Server UUID</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[Unique UUID of Encoder]]>
</Subtext>
</Information>
<Alarm>
<Monitored>false</Monitored>
</Alarm>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>4</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="105" trending="false">
<Name>EncoderStatus</Name>
<Description>Encoder Status</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[Login Status of Encoder]]>
</Subtext>
</Information>
<Alarm>
<Monitored>true</Monitored>
<Normal>Authorized</Normal>
<CH>Not Authorized</CH>
</Alarm>
<Interprete>
<RawType>numeric text</RawType>
<Type>double</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>5</Row>
</Position>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>0</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>discreet</Type>
<Discreets>
<Discreet>
<Display>Not Authorized</Display>
<Value>0</Value>
</Discreet>
<Discreet>
<Display>Authorized</Display>
<Value>1</Value>
</Discreet>
</Discreets>
</Measurement>
</Param>
<Param id="106" trending="false">
<Name>FirmwareRelease</Name>
<Description>Firmware Release</Description>
<Type>read</Type>
<Information>
<Subtext>
<![CDATA[Firmware release version]]>
</Subtext>
</Information>
<Alarm>
<Monitored>false</Monitored>
</Alarm>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>General</Page>
<Column>0</Column>
<Row>6</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="135" trending="false">
<Name>username</Name>
<Description>Username</Description>
<Type>read</Type>
<Information>
<Subtext>
0
</Subtext>
</Information>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>2</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="235" setter="true">
<Name>username</Name>
<Description>Username</Description>
<Type>write</Type>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>2</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>

<Param id="136" trending="false">
<Name>Password</Name>
<Description>Password</Description>
<Type>read</Type>
<Information>
<Subtext>
0
</Subtext>
</Information>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>3</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type options="Password">string</Type>
</Measurement>
</Param>
<Param id="236" setter="true">
<Name>Password</Name>
<Description>Password</Description>
<Type>write</Type>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>3</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type options="Password">string</Type>
</Measurement>
</Param>
<Param id="137" trending="false">
<Name>TokenValue</Name>
<Description>Token</Description>
<Type>read</Type>
<Information>
<Subtext>
0
</Subtext>
</Information>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>1</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
<Param id="237" setter="true">
<Name>TokenValue</Name>
<Description>Token</Description>
<Type>write</Type>
<Interprete>
<RawType>other</RawType>
<Type>string</Type>
<LengthType>next param</LengthType>
</Interprete>
<Display>
<RTDisplay>true</RTDisplay>
<Positions>
<Position>
<Page>Security</Page>
<Column>0</Column>
<Row>1</Row>
</Position>
</Positions>
</Display>
<Measurement>
<Type>string</Type>
</Measurement>
</Param>
</Params>
<QActions>
<QAction id="1" name="Precompiled Code" encoding="csharp" options="precompile" />
<QAction id="2" name="After Startup" encoding="csharp" triggers="1" />
<QAction id="3" name="Ping Status" encoding="csharp" triggers="3" />
</QActions>

<HTTP>
<Session id="1" name="API Status">
<Connection id="1" name="Check Ping">
<Request verb="GET" url="/api/v1/system/network/ping">
</Request>
<Response statusCode="2">
<Content pid="3"></Content>
</Response>
</Connection>
</Session>
<Session id="2" name="API Login">
<Connection id="1" name="Credentials">
<Request verb="POST" url="/api/management/login">
<Parameters>
<Parameter key="user" pid="135"></Parameter>
<Parameter key="password" pid="136"></Parameter>
</Parameters>
<Headers>
<Header key="Content-Type">application/json</Header>
</Headers>
</Request>
<Response statusCode="4">
<Content pid="5"></Content>
</Response>
</Connection>
</Session>

</HTTP>

<Groups>
<Group id="1">
<Name>After Startup</Name>
<Description>After Startup</Description>
<Type>poll action</Type>
<Content>
<Action>2</Action>
</Content>
</Group>
<Group id="2">
<Name>Fast Polling</Name>
<Description>Fast Polling 10s</Description>
<Type>poll</Type>
<Content>
<Session>1</Session>
</Content>
</Group>
</Groups>

<Triggers>
<Trigger id="1">
<Name>After Startup</Name>
<On>protocol</On>
<Time>after startup</Time>
<Type>action</Type>
<Content>
<Id>1</Id>
</Content>
</Trigger>
</Triggers>

<Actions>
<Action id="1">
<Name>After Startup Group</Name>
<On id="1">group</On>
<Type>execute next</Type>
</Action>
<Action id="2">
<Name>After Startup QAction</Name>
<On id="1">parameter</On>
<Type>run actions</Type>
</Action>
</Actions>

<Timers>
<Timer id="1">
<Name>Fast Timer (10s)</Name>
<Time initial="true">10000</Time>
<Interval>75</Interval>
<Content>
<Group>2</Group>
</Content>
</Timer>
<Timer id="2">
<Name>Medium Timer (1m)</Name>
<Time initial="true" dataDisplay="30000">60000</Time>
<Interval>75</Interval>
<Content>
</Content>
</Timer>
<Timer id="3">
<Name>Slow Timer (5m)</Name>
<Time initial="true">300000</Time>
<Interval>75</Interval>
<Content>
</Content>
</Timer>
</Timers>

<PortSettings name="HTTP Connection">
<BusAddress>
<DefaultValue>ByPassProxy</DefaultValue>
<Disabled>false</Disabled>
</BusAddress>
<IPport>
<DefaultValue>80</DefaultValue>
<Disabled>false</Disabled>
</IPport>
</PortSettings>

</Protocol>

Hi Bram,

Yes, have both problem

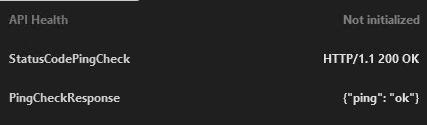

No tigger QAction, APIHealth parameter no show "ok", APIHealth have 2 status (Fail and Ok),

when run for first time protocol no run Qaction, I need qaction detect if :
{

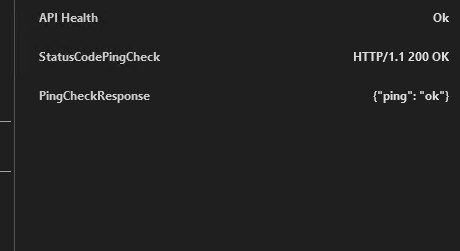

"ping": "ok"
}
show "OK" in API Health parameter if is null or other value show "Fail"

thanks
