Introduction

DataMiner is a widely proven and globally deployed standard-off-the-shelf end-to-end multi-vendor network management (NMS) & operational support system (OSS) software platform for the broadband and media industry. From a high-level perspective, it consists of the following key software components:

  • DataMiner Agent Nodes
  • DataMiner Options
  • DataMiner Probes
  • DataMiner Product and System Connectors

DataMiner is used to manage complete broadband and media ecosystems, and interfaces with all possible and imaginable active (hardware and software) components within those high-tech ecosystems, to offer an unrivaled end-to-end perspective.  Those active components with which DataMiner typically interfaces can take many different forms and shapes, such as physical devices, complete sub-systems (e.g. through a vendor-specific EMS or orchestrator), software functions and APIs, and even transactional or synthetic service-oriented interactions.  These are all generically referred to as managed objects in this guide.

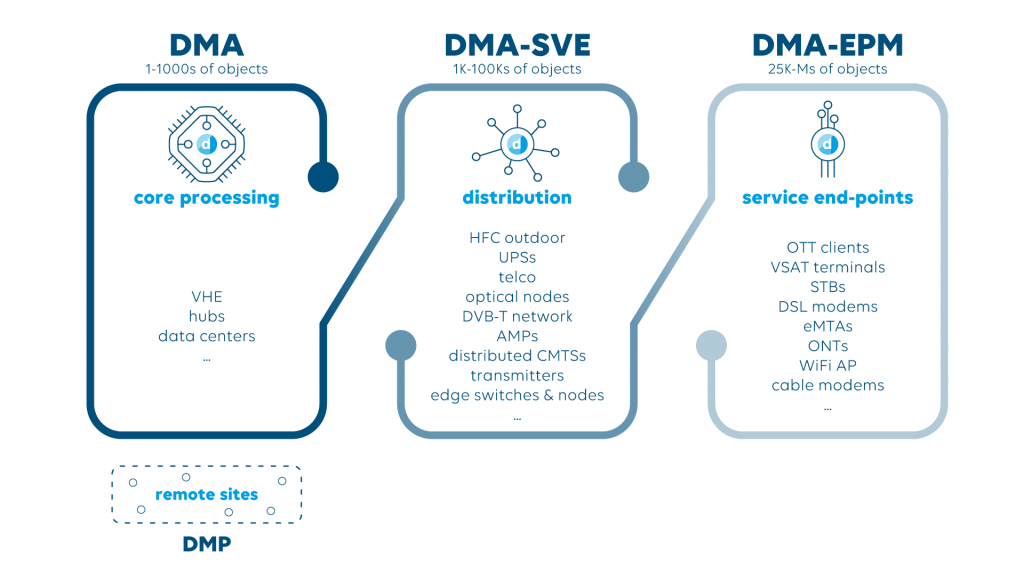

Typical deployment levels

The following paragraphs provide guidance in terms of how the different DataMiner licenses map onto the different fields of applications covered by DataMiner. From a high-level perspective, the server licenses listed in the table below are applicable to the different system domains covered by DataMiner, ranging from central core processing infrastructure all the way across transport and distribution infrastructure down to the endpoints where services are delivered.

Note that the classifications provided below are merely guidelines, and cannot be considered a binding agreement from Skyline. As with any solution, considering the multitude of applications supported by DataMiner, it is highly recommended to obtain a committed and guaranteed commercial proposal from the Skyline Communications Sales team for the specific scope of a project, or a specific application.  This ensures that the appropriate licenses are applied, and supported by Skyline for a specific application.

Area of application

Applicable license codes

Typical object volume range

Comments

Management of system core processing infrastructure components

SLC-DMA-P or

SLC-DMA-E

Handful up to several tens of thousands of objects

Standard DMA licenses are applicable for the management of small up to large volumes of heterogeneous collections of objects in high-availability / mission-critical central core processing environments (e.g. video headend, playout, MCR, data center, regional headends, earth station, hub, core IP networking, CMTSs, etc.)

Management of high-volume system distribution infrastructure components

SLC-DMA-SVE
(+SLC-DMC-SVE)

1,000 up to several 100s of thousands of objects

System Volume Equipment (SVE) DMAs are applicable for the management of high volumes of objects in distribution type of environments or B-2-B business endpoints (e.g. optical nodes, optical transceivers, OLTs, RF amplifiers, public wireless hot spots, data switches, terminals, etc.)

Management of very high-volume system service-delivery endpoints

SLC-DMA-EPM
(+SLC-DMC-EPM)

25,000 up to several millions of objects

Customer Premises Environment (EPM) DMAs are applicable for the management of very high volumes of consumer service delivery endpoint objects (e.g. STBs, eMTAs, wireless access points, OTT clients, ONTs, etc.)

Management of remote system assets

SLC-DMP

5 - 50 objects per remote location

In order to extend the reach of DataMiner to remote locations (without permanent connectivity or via bandwidth-deprived connectivity), DataMiner Probes (DMP) can be deployed. (e.g. remote DVB-T(2) transmitter sites, remote hosted hubs, advanced VSAT terminals, etc.)

From a functionality point of view, DataMiner offers you the flexibility to cater for solutions starting with a powerful fault, performance and remote object control solution, as a cutting-edge entry-level solution, across more advanced automation, root cause analysis correlation and reporting, all the way to a solution that provides sophisticated end-to-end service orchestration, including advanced service session and booking management.

Type of application

Applicable license codes

Comments

  • Fault Management
  • Performance Management
  • Remote Object Control

SLC-DMA (1)



A standard DataMiner System provides comprehensive features and capabilities to integrate any object or system from any vendor, and to design an end-to-end umbrella management solution providing consolidated fault & performance management, from both an object and service perspective, and enables operators to control individual objects remotely.

  • Cross-Object Automation
  • Advanced Root Cause Correlation
  • Advanced Reporting & Dashboards

SLC-DMA (1)  + PCK-1

Enhancing a standard DataMiner System with options such as DMS Automation, DMS Correlation and DMS Reporting (in combination referred to as PCK-1), allows cross-object automation (e.g. automatic device backup and redundancy switching, disaster recovery site switching, uplink power control, automated diagnostics, etc.), advanced automatic alarm correlation and root cause analysis, and comprehensive reporting and dashboards.

End-to-End Service Orchestration, Resource, Capacity, Booking & Session Management

SLC-DMA (1)+ PCK-1 +

SLC-DMC-SRM

Further enhancing the aforementioned solution with DataMiner Service & Resource Management option (DMC-SRM) caters for solutions that provide sophisticated next-generation end-to-end service orchestration, and fully automated session & resource handling, across any vendor and technology boundaries.

(1) Includes SLC-DMA-P, SLC-DMA-E, SLC-DMA-SVE, SLC-DMA-EPM.

In addition to the above, DataMiner also features further options for specialized functions, such as DataMiner Spectrum Analysis SLC-DMS-SPEC (for automated RF spectrum monitoring), and for OSS functions (such as trouble ticketing, inventory & asset management, etc.) to connect a real-life operational ecosystem with your business operation. For more details, refer to the DataMiner Options section below.

DataMiner Node (DMA) licenses

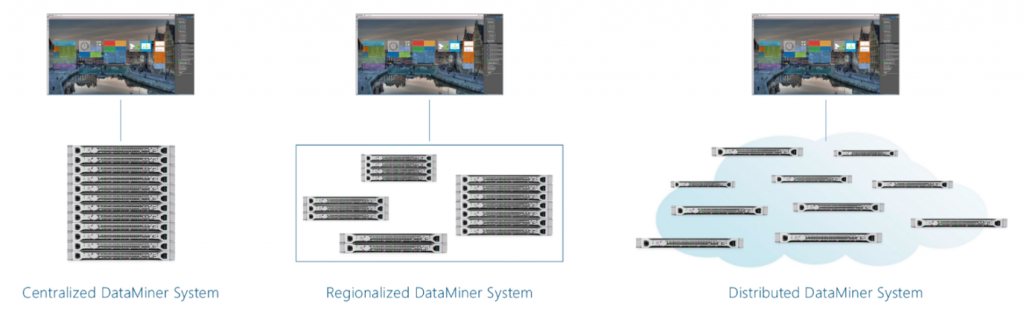

A DataMiner System (DMS) consists of one or more DataMiner nodes (DMAs), interconnected by an IP network. A DMA typically manages a subset of the objects subject to monitoring and control. In other words, the DMA is the standard building block of a DataMiner System.  A single DMA is a fully operational and functional DataMiner System by itself, and multiple DMAs interconnected by an IP network behave like a single consolidated network management system towards the user (the latter referenced as a DMS or DataMiner System).  DMAs can be distributed across the operational environment, to increase the overall availability and resilience, or alternatively can be co-located at regional or central sites in a regionalized or centralized architecture. The number of DMAs is defined by the number of objects that need to be managed and the application, and their location is a matter of preference in terms of architecture.  But in any case, and any scenario, all DMAs combined automatically behave like a single consolidated system towards the user.

A DMA runs on industry-standard hardware, including both dedicated hardware servers (rack-mounted or blade servers) and virtual servers (contact Skyline Communications for guidance on hardware specifications and OS requirements).  The DMA, through the DataMiner Connectors loaded onto it, will interact with all managed objects assigned to it, and will perform all network management functions (e.g. fault management, performance management, security, reporting, correlation, automation, resource management, orchestration, etc.).

Users can access the DataMiner System by pointing a browser to any of the DMAs in a DMS (i.e. all DMAs together behave like a single consolidated system).  The DataMiner client application (DataMiner Cube or DataMiner Cube Mobile) is launched automatically, and provides a consolidated overview of all managed objects and services in the entire DataMiner System, across all DMAs (i.e. which managed objects are visible to a user is only determined by the security access profile of the user, not by the DMA the user connects to in the DMS). There is no paid license associated with the DataMiner Cube or Cube Mobile client, and hence a DataMiner System can be accessed by any number of users or concurrent number of users.

The standard DataMiner node (DMA) is offered in an Enterprise Edition (SLC-DMA-E) and a Professional Edition (SLC-DMA-P).  From a functional perspective both licenses are equivalent and the only difference can be found in the number of objects that can be managed with a single DMA. SLC-DMA-P can manage up to 100 objects maximum, depending on the license (5, 10, 25, 50 or 100 objects). These can be any type of objects, including those of high complexity. SLC-DMA-E can manage the highest number of objects, depending on the license (250, 500 or 1000 objects) but can only be used for approved applications (i.e. management of objects of medium and low complexity).  Therefore, a deployment for 500 managed objects can require two SLC-DMA-E0250s for one application (i.e. an application with managed objects of high complexity) while for another application it can be supported with one SLC-DMA-E0500 (i.e. an application with managed objects of medium or low complexity).  Note that in the case of the former, both SLC-DMA-E0250s can be installed on a single piece of hardware, using two virtual machines, provided of course that each of those meets the minimum compute resource specifications specified by Skyline for a DMA (e.g. CPU, memory, storage space, etc.). It is strongly advised to consult Skyline Communications for an estimation on the required number and type of DMAs for the management of a specific set of objects and/or for a specific type of application.

At any time, additional SLC-DMA-Ps or SLC-DMA-Es can be added to his system to further expand the capacity of the overall DataMiner System.

The following guidelines apply in this respect:

  • SLC-DMA-Ps or SLC-DMA-Es can be upgraded to a higher capacity tier (e.g. SLC-DMA-P0050 upgrade to SLC-DMA-P0100).
  • When a transition is made from SLC-DMA-P to SLC-DMA-E, or the upgrade applies to a SLC-DMA-E, then this is subject to the application being supported on SLC-DMA-Es (e.g. SLC-DMA-P0100 upgrade to SLC-DMA-E0250, or SLC-DMA-E0500 upgrade to SLC-DMA-E1000).

For SVE (System Volume Equipment) management purposes, a special DMA license is available: SLC-DMA-SVE. This platform is available free of charge, but can only manage SVE-approved objects, for which separate SVE capacity licenses (SLC-DMC-SVE) must be purchased.

Similarly, for EPM (Experience and Performance Management) purposes, a special DMA license is available: SLC-DMA-EPM.  This platform is available free of charge, but can only manage EPM objects, for separate EPM capacity licenses (SLC-DMC-EPM) must be purchased.

Note that all DMAs, including DMA-Es, DMA-Ps, DMA-EPMs and DMA-SVEs, can be combined into a single DMS, resulting into a single consolidated management platform, managing your entire operation, end to end, from service acquisition to service delivery.

Note also that DMAs require DataMiner Connectors (SLC-DMS-DRV) for each individual object type that they need to interface with (see section on DataMiner Connectors below).

The table below lists the available DMA licenses along with their product code:

 License

Code

Maximum number of objects (2)

Comments

DataMiner Enterprise Edition

SLC-DMA-E1000

1000

Exclusively available for approved applications.

Management of objects of medium or low complexity.



SLC-DMA-E0500

500



SLC-DMA-E0250

250

DataMiner Professional Edition

SLC-DMA-P0100

100

Suitable for management of any objects, including objects of low, medium and high complexity.



SLC-DMA-P0050

50



SLC-DMA-P0025

25



SLC-DMA-P0010

10



SLC-DMA-P0005

05

DataMiner SVE Edition

SLC-DMA-SVE

defined by SLC-DMC-SVE capacity licenses installed

Needs to be complemented with SVE capacity licenses.

DataMiner EPM Edition

SLC-DMA-EPM

defined by SLC-DMC-EPM capacity licenses installed

Needs to be complemented with EPM capacity licenses.

DataMiner SVE Capacity Licenses

SLC-DMC-SVE-0001

capacity for 1K SVEs

Volumes are cumulative, undividable capacity packages.



SLC-DMC-SVE-0005

capacity for 5K SVEs



SLC-DMC-SVE-0010

capacity for 10K SVEs



SLC-DMC-SVE-0015

capacity for 15K SVEs



SLC-DMC-SVE-0020

capacity for 20K SVEs



SLC-DMC-SVE-0025

capacity for 25K SVEs



SLC-DMC-SVE-0030

capacity for 30K SVEs



SLC-DMC-SVE-0035

capacity for 35K SVEs



SLC-DMC-SVE-0040

capacity for 40K SVEs



SLC-DMC-SVE-0045

capacity for 45K SVEs



SLC-DMC-SVE-0050

capacity for 50K SVEs

DataMiner EPM Capacity Licenses

SLC-DMC-EPM-L-0025

capacity for 25K EPMs

Volumes are cumulative, undividable capacity packages.

All capacity packages need to be of the same type on a single platform.

L-licenses do not include aggregation.



SLC-DMC-EPM-L-0050

capacity for 50K EPMs



SLC-DMC-EPM-L-0100

capacity for 100K EPMs



SLC-DMC-EPM-L-0250

capacity for 250K EPMs



SLC-DMC-EPM-L-0500

capacity for 500K EPMs



SLC-DMC-EPM-L-1000

capacity for 1000K EPMs



SLC-DMC-EPM-0025

capacity for 25K EPMs

Volumes are cumulative, undividable capacity packages.

All capacity packages need to be of the same type on a single platform.

Licenses including aggregation.



SLC-DMC-EPM-0050

capacity for 50K EPMs



SLC-DMC-EPM-0100

capacity for 100K EPMs



SLC-DMC-EPM-0250

capacity for 250K EPMs



SLC-DMC-EPM-0500

capacity for 500K EPMs



SLC-DMC-EPM-1000

capacity for 1000 EPMs

(2) The license restriction on the number of managed objects applies to active and paused element objects (not stopped elements), including both regular element objects and virtual element objects (i.e. DVEs), and objects representing applications and data aggregators. It does not apply to service objects, enhanced service objects, element objects derived from redundancy groups and SLA objects.

DataMiner Probe Licenses

A DataMiner Probe (DMP) is the core of a DMA, i.e. a powerful protocol engine capable of interfacing with any third-party product  or system, via any interface or any protocol, including both industry-standard protocols as well as vendor-specific / proprietary protocols. DMPs, similar to DMAs, convert any south-bound interface towards underlying objects into a uniform standard north-bound interface, supporting transparent standardized monitoring and control of those underlying objects.

Unlike DMAs, DMPs cannot be networked together into a single system. DMPs are standalone engines, designed to manage the objects at a single location and to transcode disparate legacy and vendor-specific interfaces into standard protocols, providing additional advanced functionality such as data optimization and buffering to accommodate bandwidth-deprived and unstable communication links. DMPs are exclusively used as a mediator between managed objects on remote sites and a DataMiner System. DMPs require DataMiner connectors (SLC-DMS-DRV) for each individual object type that they need to interface with.

DMPs are available with different maximum capacity levels. The table below lists the available DMP licenses:

License

Code

Maximum number of objects

DataMiner Probe

SLC-DMP-50

50



SLC-DMP-25

25



SLC-DMP-10

10



SLC-DMP-05

5

DataMiner Options

In addition to the standard aforementioned DMAs (SLC-DMA-E, SLC-DMA-P, SLC-DMA-EPM, SLC-DMA-SVE), required to build a DataMiner System, depending on the type of application and/or functional requirements, some functional license options may be required. The available functional options include:

  • DMS Correlation (SLC-DMS-COR) for intelligent alarm correlation and root cause analysis based on a user-definable knowledge base.
  • DMS Automation (SLC-DMS-AUT) enabling users to create advanced automation scripts for a multitude of applications, which can be triggered manually, by a time-schedule or by events.
  • DMS Reporter (SLC-DMS-REP) for advanced reporting and dashboards via web interface and email.
  • DMS Service Monitoring (SLC-DMC-SRM-MNO-xxxx) for service monitoring purposes, including E2E service view, real-time active service path, service status dashboard and drilldown to device layer. This highly sophisticated dynamic service layer sits on top of the infrastructure management layer, and subsequently traces any services, right across any vendor and technology boundaries, offering end-to-end service monitoring.
  • DMS Spectrum Analysis (SLC-DMS-SPEC) for professional RF spectrum analysis, including real-time remote access and continuous RF performance monitoring.
  • DMS OSS/BSS Gateway Inventory & Asset Manager (SLC-DMS-OBS-GW-IAM) provides fully integrated inventory & asset management capabilities, and bi-directional integration of third-party inventory & asset management solutions for automated provisioning and asset updates.
  • DMS OSS/BSS Gateway for Ticketing (SLC-DMS-OBS-GW-TCK) provides trouble ticketing functionality, and enables immersive integrations with third-party trouble ticket solutions.
  • DMS OSS/BSS Gateway for Planned Maintenance (SLC-DMS-OBS-GW-PLM) provides planned maintenance functionality, and enables immersive integrations with third-party planned maintenance solutions.
  • DMS Infrastructure Discovery and Provisioning (SLC-DMS-APP-IDP-PCK-1/xxxx) is a suite of tools that takes care of automated and rule-based inventory discovery workflows synchronized with your central inventory database, zero-touch provisioning of inventory in DataMiner, management of element configurations, user-defined workflows to upload specific software images and system configurations to new inventory, and plug ‘n play creation of new managed elements in DataMiner, including automated generation of graphical views such as locations, buildings, floors, rooms and highly detailed rack views.
  • DMS OSS/BSS Job Manager Gateway (SLC-DMS-OBS-GW-JBM) is an OSS component that makes it possible to enter jobs in the DataMiner UI. Includes a front-end HTML5 application to enter jobs and view a list of jobs, for example jobs imported from a planning system (related to the orchestration of video feeds).

License

Code

License Mechanism

DMS Correlation

SLC-DMS-COR

per DMA

DMS Automation

SLC-DMS-AUT

per DMA

DMS Reporting

SLC-DMS-REP

per DMA

DMS Service Monitoring

SLC-DMC-SRM-MNO-xxxx

per DMS

DMS Spectrum Analysis

SLC-DMS-SPEC

per DMA, limited to number of Spectrum Analyzer objects

DMS OSS/BSS Gateway for Inventory & Asset Management

SLC-DMS-OBS-GW-IAM

per DMA

DMS OSS/BSS Gateway for Ticketing

SLC-DMS-OBS-GW-TCK

per DMA

DMS OSS/BSS Gateway for Planned Maintenance

SLC-DMS-OBS-GW-PLM

per DMA

DMS Infrastructure Discovery and Provisioning

SLC-DMS-APP-IDP-PCK-1/xxxx

per DMA

DMS Job Manager Gateway

SLC-DMS-OBS-GW-JBM

per DMA

Some options are also available in Options Package bundles:

  • SLC-DMS-PCK-1 is an Advanced Options Package, bundling the options for correlation, automation and reporting.
  • SLC-DMS-PCK-2 is an OSS/BSS Gateway Options Package, bundling the options for inventory & asset management, ticketing and planned maintenance.

Optional Functionality License Packages

Code

License Mechanism

DMS Advanced Options Package 1

SLC-DMS-PCK-1

per DMA (bundles SLC-DMS-COR, SLC-DMS-AUT, SLC-DMS-REP)

DMS OSS/BSS Options Package 1

SLC-DMS-PCK-2

per DMA (bundles SLC-DMS-OBS-GW-TCK, SLC-DMS-OBS-GW-PLM, SLC-DMS-OBS-GW-IAM)

Below you can find an overview of the available SRM capacity licenses for service monitoring only:

Code

Description

SLC-DMC-SRM-MNO-0100

DataMiner Service and Resource Manager Capacity License, to activate up to 100 simultaneous sessions for service monitoring purposes only.

SLC-DMC-SRM-MNO-0500

DataMiner Service and Resource Manager Capacity License, to activate up to 500 simultaneous sessions for service monitoring purposes only.

SLC-DMC-SRM-MNO-1000

DataMiner Service and Resource Manager Capacity License, to activate up to 1000 simultaneous sessions for service monitoring purposes only.

SLC-DMC-SRM-MNO-0100-FO

DataMiner Service and Resource Manager Capacity Fail-over License, to activate up to 100 simultaneous sessions for service monitoring purposes only.

SLC-DMC-SRM-MNO-0500-FO

DataMiner Service and Resource Manager Capacity Fail-over License, to activate up to 500 simultaneous sessions for service monitoring purposes only.

SLC-DMC-SRM-MNO-1000-FO

DataMiner Service and Resource Manager Capacity Fail-over License, to activate up to 1000 simultaneous sessions for service monitoring purposes only.

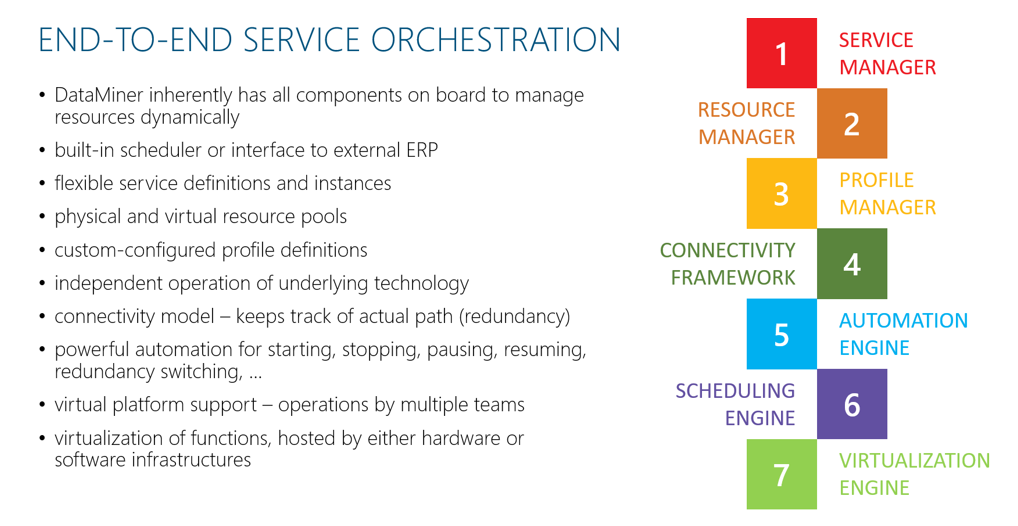

Projects Requiring Orchestration

For projects requiring orchestration, the DataMiner Service and Resource Manager suite of tools (SRM) is to be proposed.

The DataMiner Service and Resource Manager (SRM), is to be considered as a specific DataMiner functional license option, depending on the type of application and/or functional requirements, and hence to be considered separately.

Service & Resource Manager (SLC-DMC-SRM) provides comprehensive cross-vendor time-based management of resources and service sessions.

It enables a set of powerful DataMiner tools and applications for end-to-end service orchestration:

Below you can find an overview of the available SRM capacity licenses for orchestration:

Code

Description

SLC-DMC-SRM-0001

DataMiner Service and Resource Manager Capacity Software License, to activate up to 1 simultaneous session in the resource/booking manager.

SLC-DMC-SRM-0010

DataMiner Service and Resource Manager Capacity Software License, to activate up to 10 simultaneous sessions in the resource/booking manager.

SLC-DMC-SRM-0050

DataMiner Service and Resource Manager Capacity Software License, to activate up to 50 simultaneous sessions in the resource/booking manager.

SLC-DMC-SRM-0100

DataMiner Service and Resource Manager Capacity Software License, to activate up to 100 simultaneous sessions in the resource/booking manager.

SLC-DMC-SRM-0500

DataMiner Service and Resource Manager Capacity Software License, to activate up to 500 simultaneous sessions in the resource/booking manager.

SLC-DMC-SRM-1000

DataMiner Service and Resource Manager Capacity Software License, to activate up to 1000 simultaneous sessions in the resource/booking manager.

SLC-DMC-SRM-0001-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 1 simultaneous session in the resource/booking manager. Failover Software License.

SLC-DMC-SRM-0010-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 10 simultaneous sessions in the resource/booking manager. Failover Software License.

SLC-DMC-SRM-0050-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 50 simultaneous sessions in the resource/booking manager. Failover Software License.

SLC-DMC-SRM-0100-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 100 simultaneous sessions in the resource/booking manager. Failover Software License.

SLC-DMC-SRM-0500-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 500 simultaneous sessions in the resource/booking manager. Failover Software License.

SLC-DMC-SRM-1000-FO

DataMiner Service and Resource Manager Capacity Software License, to activate up to 1000 simultaneous sessions in the resource/booking manager. Failover Software License.

The following prerequisites need to be agreed upon before a project implementation can be initiated:

  • Workflow Description Document
  • Functional Description Specification
  • Customer Acceptance Test Document

DataMiner User Interfacing

From a user perspective, DataMiner provides all the means to ensure that everybody can easily and intuitively access information contained in the DataMiner platform, whenever needed.  This is end to end, ranging from the NMS/OSS professionals working at a NOC or MCR for example, across all other people in the organization who may have a wide range of other responsibilities, all the way even to external partners of the organization.

All DataMiner Client applications and user interfaces are designed to be user-centric. They are available without any licensing constraints (i.e. DataMiner clients are available free of charge, and irrespective of the size of a DataMiner System, an unlimited number of users or concurrent users can access it).

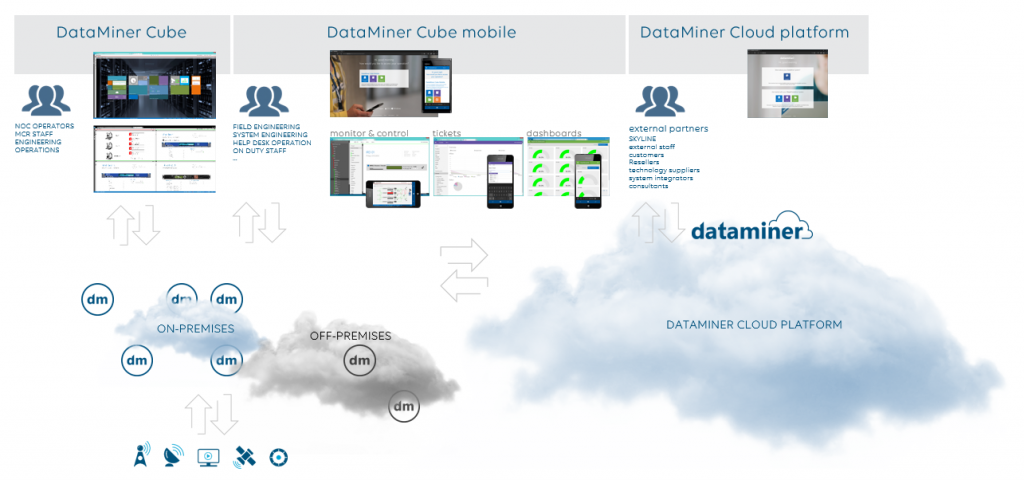

DataMiner provides three principal access tiers, designed for different target users:

  • DataMiner Cube is the full-fledged and fully featured principal DataMiner client application, designed for NMS/OSS professionals, whose primary responsibility is to manage and run the operation of the organization (e.g. NOC operators, MCR staff, engineering, operators, etc.). Among advanced operational management capabilities & functions designed to manage complex operations intuitively and easily end to end, DataMiner Cube also provides all the administrative functions required to set up, configure and maintain the DataMiner System itself.
    DataMiner Cube is by default included in any DataMiner System, and can be used by as many users or concurrent users as required.
  • DataMiner Cube Mobile is a lightweight HMTL5 client user interface, which is designed for people within the same organization whose primary responsibility is not necessarily NMS/OSS-related, but who can largely benefit from being able to access the wealth of data contained in an end-to-end DataMiner System (e.g. field engineering, system engineering, finance, maintenance, help desk, management, etc.). DataMiner Cube Mobile provides access to DataMiner from different angles, such as remote monitoring & control, a dashboard perspective and a ticket perspective.
    DataMiner Cube Mobile is designed to be used on desktops, tablets and mobile platforms, across different operating systems. DataMiner Cube Mobile is by default included in any DataMiner System, and can be used by as many users or concurrent users as required.
  • DataMiner Cloud Platform offers operators the option to expand access to their DataMiner NMS/OSS platform beyond their own organization, i.e. to share real-life updated data from within their operations with third parties (such as customers, resellers, technology partners, consultants, system integrators, etc.) in a secured and easy to manage fashion.
    The DataMiner Cloud Platform (DCP) Data Sharing services (DDS) are available in different tiers, some of which are optional.

DataMiner Product/System Connectors

DataMiner Product/System Connectors (SLC-DMS-DRV) are required to interface a DMA or DMP with a specific object, i.e. a product or system from a third-party vendor. SLC-DMS-DRV are designed in an open XML format, capable of modelling any communication protocol, industry-standard or proprietary, and can be developed by anybody, including Skyline Communications as well as any other qualified third party.  For connectors delivered by Skyline Communications, one SLC-DMS-DRV license is required for each object type managed by a DataMiner System. The license cost is a fixed fee and hence independent of the number of managed objects of that specific type, and independent of the number of DMAs or DMPs.  Furthermore, Skyline Communications does not charge additional non-recurring engineering (NRE) fees for connectors that still need to be developed.  Therefore, SLC-DMS-DRV can be purchased at a fixed license fee, to interface a DataMiner System with any product or system from any vendor, irrespective of the interface required and irrespective of whether the connector already exists or still needs to be developed.

Connector type

License code

Description

Product Connectors



Product connectors interface DataMiner with individual product and system components.



SLC-DMS-DRV-DEV-I

Category-I product connectors are applicable for products of low complexity and/or a low number of metrics.



SLC-DMS-DRV-DEV-II

Category-II product connectors are applicable for products of medium complexity and/or a medium number of metrics.



SLC-DMS-DRV-DEV-III

Category-III product connectors are applicable for products of high complexity and/or a high number of metrics.



SLC-DMS-DRV-DEV-CU

Custom Category product connectors are applicable for products that are not industry-standard readily available.

System Connectors



System connectors interface DataMiner with sub-systems and element management software applications.



SLC-DMS-DRV-SYS-I

Category-I system connectors are applicable for low-complexity/monolithic interfacing with third-party systems.



SLC-DMS-DRV-SYS-II

Category-II system connectors are applicable for medium-complexity/replicated interfacing with third-party systems.



SLC-DMS-DRV-SYS-III

Category-III system connectors are applicable for high-complexity/full replicated interfacing with third-party systems.



SLC-DMS-DRV-SYS-CU

Custom Category system connectors are applicable for systems that are not industry-standard readily available.

NOTE: Based on a corporate overall agreement, you can opt to purchase all products and system connectors (with the exception of custom connectors ) as CAT-II licenses. Any purchased connector can be exchanged for a different connector as compared to potentially initially defined, on the condition that this is converted value for value (in case CAT or type changes apply) and on the condition that a purchased connector has not been delivered and development for a new connector has not started yet.

Special-Purpose Licenses

In addition to the available general-purpose production licenses, some special-purpose license arrangements are available.

Staging

All products are available as a so-called staging version. These licenses are similar in functionality and capacity to the general-purpose licenses, but are offered with a special discount, but with the explicit condition that the license is only used for staging purposes (i.e. DMAs or DMPs with staging license cannot be integrated into a regular DMS, cannot be used for the monitoring of an operational environment, and can only be used for testing, validation, demonstration, beta evaluation, etc.).  DataMiner Product/System Connectors are also available for staging purposes provided that they are available off the shelf (i.e. new connectors are not developed by Skyline Communications for staging purposes).

DataMiner Applications & Solutions

In addition to the standard core DataMiner Licenses, which allow anybody to design, build and deploy comprehensive multi-vendor end-to-end network management and orchestration solutions, you can also opt to license DataMiner Solutions from Skyline Communications (which are comprised of DataMiner Applications (SLC-DMS-APL).

These DataMiner Solutions provide out-of-the-box technology-specific, application-specific or vendor-specific DataMiner Solutions, enabling operators to deploy solutions more quickly, and to leverage the extensive domain expertise of both Skyline Communications and renowned product vendor and technology partners.

To get an overview of the available solutions, please refer to Apps & Solutions on the community website or to Solutions on the Skyline website.
